# 驱动逆向2

## ByteCTF2019-DancingKeys

非常简单，静态分析就能出。类似Shadow对键盘输入做了个监听

驱动主函数如下

~~~c++
__int64 __fastcall sub_140002C90(struct _DRIVER_OBJECT *a1)
{
  unsigned int i; // [rsp+20h] [rbp-18h]

version_check();
  cpu_check();
  debug_check();
  sub_1400033E0(a1);
  sub_1400028A0(a1);
  for ( i = 0; i < 0x1B; ++i )
    a1->MajorFunction[i] = sub_1400029D0;
  a1->MajorFunction[3] = keyboard_listen;
  a1->MajorFunction[27] = remove_keyboard_listen;
  a1->MajorFunction[22] = sub_140002BF0;
  a1->MajorFunction[14] = dec_flag;
  a1->DriverUnload = sub_140002B50;
  return 0LL;
}
~~~

其中前三个函数校验了windows版本、CPU型号以及调试检测

~~~c++
__int64 version_check()
{
  ULONG MajorVersion; // [rsp+40h] [rbp-18h] BYREF
  ULONG BuildNumber; // [rsp+44h] [rbp-14h] BYREF
  ULONG MinorVersion[4]; // [rsp+48h] [rbp-10h] BYREF

MajorVersion = 0;
  BuildNumber = 0;
  MinorVersion[0] = 0;
  PsGetVersion(&MajorVersion, MinorVersion, &BuildNumber, 0LL);
  dword_140006068 = BuildNumber * (MinorVersion[0] + MajorVersion);
  DbgPrintEx(
    0x4Du,
    0x233u,
    "Windows Version: %u %u %u, Version Magic: %x\n",
    MajorVersion,
    MinorVersion[0],
    BuildNumber,
    BuildNumber * (MinorVersion[0] + MajorVersion));
  if ( dword_140006068 == 0xDEADBEEF && MajorVersion == 0xE9 )
  {
    DbgPrintEx(0x4Du, 0x233u, "Okay, you are running this driver with the correct os version\n");
    return 0LL;
  }
  else
  {
    DbgPrintEx(0x4Du, 0x233u, "Oh no, you should run this driver in Windows 233 instead of Windows %u\n", MajorVersion);
    return 3221225473LL;
  }
}
__int64 cpu_check()
{
  unsigned __int8 *v5; // rax
  signed __int64 v6; // rcx
  unsigned __int8 v7; // dl
  int v8; // eax

_RAX = 0LL;
  __asm { cpuid }
  unk_140006070 = _RBX;
  *(&unk_140006070 + 1) = _RDX;
  *(&unk_140006070 + 1) = _RCX;
  DbgPrintEx(0x4Du, 0x233u, "CPU Vendor: %s\n", &unk_140006070);
  v5 = &unk_140006070;
  v6 = "FakeIntel" - &unk_140006070;
  while ( 1 )
  {
    v7 = *v5;
    if ( *v5 != v5[v6] )
      break;
    ++v5;
    if ( !v7 )
    {
      v8 = 0;
      goto LABEL_6;
    }
  }
  v8 = v7 < v5[v6] ? -1 : 1;
LABEL_6:
  if ( v8 )
  {
    DbgPrintEx(
      0x4Du,
      0x233u,
      "This Driver is incompatible with your CPU vendor \"%s\", you should use FAKE intel processor lol",
      &unk_140006070);
    return 0xC0000001LL;
  }
  else
  {
    DbgPrintEx(0x4Du, 0x233u, "Okay, you are now using fake intel CPU\n");
    return 0LL;
  }
}
NTSTATUS debug_check()
{
  return PsCreateSystemThread(&ThreadHandle, 0, 0LL, 0xFFFFFFFFFFFFFFFFLL, 0LL, StartRoutine, 0LL);
}
void __fastcall __noreturn StartRoutine(PVOID StartContext)
{
  while ( 1 )
  {
    KdDisableDebugger();
    if ( dword_140006040 )
    {
      sub_140002880(&dword_140006044, 1u);
      PsTerminateSystemThread(0);
    }
    sub_1400033A0(500);
  }
}
~~~

可知version_check要求dword_140006068值为0xDEADBEEF，cpu_check要求cpu值（unk_140006070）为`FakeIntel`

中间的基本就是在做键盘过滤程序安装、监听，其中keyboard_listen读取了16字节输入存入byte_140006890

~~~c++
__int64 __fastcall keyboard_listen(struct _DEVICE_OBJECT *a1, IRP *a2)
{
  if ( a1 == DeviceObject )
    return sub_1400029D0(a1, a2);
  else
    return sub_140003920(a1, a2);
}
NTSTATUS __fastcall sub_140003920(__int64 a1, IRP *a2)
{
  int v2; // r9d
  __int64 v4; // [rsp+30h] [rbp-18h]

v4 = *(a1 + 64);
  sub_140003990(a2);
  LOBYTE(v2) = 1;
  sub_140003A60(a2, sub_1400037A0, 0, v2, 0, 0);
  ++dword_140006080;
  return IofCallDriver(*(v4 + 8), a2);
}
__int64 __fastcall sub_1400037A0(__int64 a1, __int64 a2)
{
  unsigned int i; // [rsp+30h] [rbp-28h]
  __int64 v4; // [rsp+38h] [rbp-20h]
  unsigned __int64 v5; // [rsp+40h] [rbp-18h]

if ( *(a2 + 48) >= 0 )
  {
    v4 = *(a2 + 24);
    v5 = *(a2 + 56) / 0xCuLL;
    for ( i = 0; i < v5; ++i )
    {
      if ( !*(v4 + 12LL * i + 4) )
      {
        byte_140006890[dword_140006088] = (byte_14000608C + 42) ^ *(v4 + 12LL * i + 2);
        byte_14000608C = byte_140006890[dword_140006088];
        DbgPrintEx(0x4Du, 0x233u, "Magic code %d: %02x\n", dword_140006088, byte_140006890[dword_140006088]);
        if ( ++dword_140006088 == 16 )
        {
          DbgPrintEx(0x4Du, 0x233u, "Magic code buffer is now full\n");
          dword_140006088 = 0;
          byte_14000608C = 0;
        }
      }
    }
  }
  --dword_140006080;
  if ( *(a2 + 65) )
    sub_140003A20(a2);
  return *(a2 + 48);
}
~~~

最后是dec_flag

~~~c++
__int64 __fastcall dec_flag(PDEVICE_OBJECT a1, IRP *a2)
{
  unsigned int v3; // [rsp+20h] [rbp-28h]
  __int64 v4; // [rsp+28h] [rbp-20h]
  struct _IRP *MasterIrp; // [rsp+30h] [rbp-18h]

v4 = sub_140002D80(a2);
  if ( *(v4 + 24) == 0x222404 )
  {
    if ( a1 == DeviceObject )
    {
      MasterIrp = a2->AssociatedIrp.MasterIrp;
      v3 = *(v4 + 8);
      if ( MasterIrp && v3 >= 0x64 )
      {
        sub_1400030B0();
        sub_140002DD0(MasterIrp);
        a2->IoStatus.Information = v3;
        a2->IoStatus.Status = 0;
        IofCompleteRequest(a2, 0);
        return 0LL;
      }
      DbgPrintEx(0x4Du, 0x233u, "Invalid Output Buffer\n");
    }
    else
    {
      DbgPrintEx(0x4Du, 0x233u, "Wrong device!\n");
    }
  }
  else
  {
    DbgPrintEx(0x4Du, 0x233u, "Wrong device control code!\n");
  }
  a2->IoStatus.Information = 0LL;
  a2->IoStatus.Status = 0;
  IofCompleteRequest(a2, 0);
  return 0LL;
}
~~~

其中sub_1400030B0对前面unk_140006070（12字节，多的补0）+dword_140006068总共16字节，每4字节做一次md5，然后保存前8字节

~~~c++
__int64 sub_1400030B0()
{
  __int64 result; // rax
  unsigned int i; // [rsp+20h] [rbp-38h]
  _DWORD v2[4]; // [rsp+28h] [rbp-30h] BYREF

qmemcpy(v2, &unk_140006070, 0xCuLL);
  result = 12LL;
  v2[3] = dword_140006068;
  for ( i = 0; i < 4; ++i )
  {
    md5(&v2[i], 4LL, &unk_140006048 + 8 * i);
    result = i + 1;
  }
  return result;
}
~~~

sub_140002DD0很明显是在做AES-CBC解密，其中key来自unk_140006048（16字节），iv来自byte_140006890（16字节，给的word文件里），密文v13

~~~c++
_BYTE *__fastcall sub_140002DD0(void *a1)
{
  _BYTE *result; // rax
  _BYTE v2[192]; // [rsp+20h] [rbp-158h] BYREF
  _BYTE v3[64]; // [rsp+E0h] [rbp-98h] BYREF
  _BYTE v4[16]; // [rsp+120h] [rbp-58h] BYREF
  _BYTE v5[32]; // [rsp+130h] [rbp-48h] BYREF

memset(v2, 0, sizeof(v2));
  v3[0] = -119;
  v3[1] = -73;
  v3[2] = -18;
  v3[3] = -43;
  v3[4] = 126;
  v3[5] = -33;
  v3[6] = -66;
  v3[7] = 103;
  v3[8] = -69;
  v3[9] = -19;
  v3[10] = -61;
  v3[11] = 109;
  v3[12] = 81;
  v3[13] = 116;
  v3[14] = -82;
  v3[15] = 83;
  v3[16] = 3;
  v3[17] = -92;
  v3[18] = 96;
  v3[19] = -45;
  v3[20] = -25;
  v3[21] = -11;
  v3[22] = -95;
  v3[23] = -34;
  v3[24] = 7;
  v3[25] = 107;
  v3[26] = 37;
  v3[27] = -41;
  v3[28] = 87;
  v3[29] = -50;
  v3[30] = -62;
  v3[31] = 111;
  v3[32] = -45;
  v3[33] = -91;
  v3[34] = -1;
  v3[35] = -41;
  v3[36] = -116;
  v3[37] = 84;
  v3[38] = 22;
  v3[39] = -97;
  v3[40] = -29;
  v3[41] = -65;
  v3[42] = 2;
  v3[43] = 20;
  v3[44] = -98;
  v3[45] = 7;
  v3[46] = -66;
  v3[47] = -78;
  v3[48] = 109;
  v3[49] = 40;
  v3[50] = 101;
  v3[51] = -108;
  v3[52] = 25;
  v3[53] = -31;
  v3[54] = 81;
  v3[55] = -33;
  v3[56] = 126;
  v3[57] = 118;
  v3[58] = -93;
  v3[59] = -61;
  v3[60] = -78;
  v3[61] = 59;
  v3[62] = -90;
  v3[63] = 105;
  qmemcpy(v5, &unk_140006048, sizeof(v5));
  qmemcpy(v4, byte_140006890, sizeof(v4));
  sub_1400010D0(v2, v5, v4);
  sub_140001000(v2, v3, 64LL);
  result = v3;
  qmemcpy(a1, v3, 0x40uLL);
  return result;
}
__int64 __fastcall sub_1400010D0(__int64 a1, __int64 a2, const void *a3)
{
  __int64 result; // rax

sub_140002350(a1, a2);
  result = a1;
  qmemcpy((a1 + 176), a3, 0x10uLL);
  return result;
}
__int64 __fastcall sub_140002350(__int64 a1, __int64 a2)
{
  __int64 result; // rax
  char v3; // [rsp+4h] [rbp-24h]
  char v4; // [rsp+4h] [rbp-24h]
  unsigned __int8 v5; // [rsp+5h] [rbp-23h]
  unsigned __int8 v6; // [rsp+6h] [rbp-22h]
  unsigned __int8 v7; // [rsp+7h] [rbp-21h]
  unsigned int i; // [rsp+8h] [rbp-20h]
  unsigned int j; // [rsp+8h] [rbp-20h]
  unsigned int v10; // [rsp+Ch] [rbp-1Ch]
  int v11; // [rsp+10h] [rbp-18h]

for ( i = 0; i < 4; ++i )
  {
    *(a1 + 4 * i) = *(a2 + 4 * i);
    *(a1 + 4 * i + 1) = *(a2 + 4 * i + 1);
    *(a1 + 4 * i + 2) = *(a2 + 4 * i + 2);
    *(a1 + 4 * i + 3) = *(a2 + 4 * i + 3);
    result = i + 1;
  }
  for ( j = 4; j < 0x2C; ++j )
  {
    v3 = *(a1 + 4 * j - 4);
    v5 = *(a1 + 4 * j - 4 + 1);
    v6 = *(a1 + 4 * j - 4 + 2);
    v7 = *(a1 + 4 * j - 4 + 3);
    if ( !(j % 4) )
    {
      v4 = RijnDael_AES_LONG_140005100[v5];
      v5 = RijnDael_AES_LONG_140005100[v6];
      v6 = RijnDael_AES_LONG_140005100[v7];
      v7 = RijnDael_AES_LONG_140005100[*(a1 + 4 * j - 4)];
      v3 = byte_140005300[j / 4] ^ v4;
    }
    v11 = 4 * j;
    v10 = 4 * j - 16;
    *(a1 + 4 * j) = v3 ^ *(a1 + v10);
    *(a1 + (v11 + 1)) = v5 ^ *(a1 + v10 + 1);
    *(a1 + (v11 + 2)) = v6 ^ *(a1 + v10 + 2);
    *(a1 + 4 * j + 3) = v7 ^ *(a1 + v10 + 3);
    result = j + 1;
  }
  return result;
}
__int64 __fastcall sub_140001000(__int64 a1, char *a2, unsigned int a3)
{
  __int64 result; // rax
  unsigned __int64 i; // [rsp+20h] [rbp-38h]
  _BYTE v5[16]; // [rsp+28h] [rbp-30h] BYREF

for ( i = 0LL; ; i += 16LL )
  {
    result = a3;
    if ( i >= a3 )
      break;
    qmemcpy(v5, a2, sizeof(v5));
    aes_dec(a2, a1);
    sub_140002720(a2, a1 + 176);
    qmemcpy((a1 + 176), v5, 0x10uLL);
    a2 += 16;
  }
  return result;
}
__int64 __fastcall sub_140002720(__int64 a1, __int64 a2)
{
  __int64 result; // rax
  unsigned __int8 i; // [rsp+0h] [rbp-18h]

for ( i = 0; ; ++i )
  {
    result = i;
    if ( i >= 0x10u )
      break;
    *(a1 + i) ^= *(a2 + i);
  }
  return result;
}
~~~

所以写脚本解密即可

~~~python
from Crypto.Cipher import AES
from hashlib import md5

s = b"FakeIntel\x00\x00\x00"+int.to_bytes(0xDEADBEEF, length=4, byteorder="little")
result = b""
for i in range(4):
    result += md5(s[i*4:i*4+4]).digest()[:8]
key = result[:16]
iv = bytes.fromhex("25 40 5a 86 b5 f1 3e 58 80 9b db 0b 30 49 66 8c".replace(" ", ""))
cipher = [-119, -73, -18, -43, 126, -33, -66, 103, -69, -19, -61, 109, 81, 116, -82, 83, 3, -92, 96, -45, -25, -11, -95, -34, 7, 107, 37, -41, 87, -50, -62, 111, -45, -91, -1, -41, -116, 84, 22, -97, -29, -65, 2, 20, -98, 7, -66, -78, 109, 40, 101, -108, 25, -31, 81, -33, 126, 118, -93, -61, -78, 59, -90, 105]
cipher = [i&0xff for i in cipher]
print(AES.new(key, AES.MODE_CBC, iv).decrypt(bytes(cipher)))
~~~

得到`bytectf{d0f20eff6fc4f6060776c8ca63319a1e}`

接下来学习如何patch使得驱动自己吐出flag

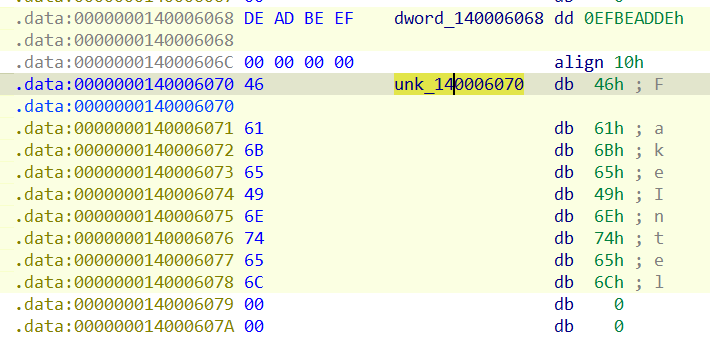

首先要patch的点肯定是前三个函数，可以考虑直接nop掉，直接手动把dword_140006068和unk_140006070填好

![image-20260211120411185.png](http://xherlock.top/usr/uploads/2026/02/3989587233.png)

然后下断点在解密flag完成后。首先先还原iv输入键值

~~~python
s = [int(i,16) for i in "25 40 5a 86 b5 f1 3e 58 80 9b db 0b 30 49 66 8c".split(" ")]
b = 0
for i in range(len(s)-1, -1, -1):
    if i != 0:
        s[i] ^= (s[i-1] + 42)
    else:
        s[i] ^= 42
print(s)	# [15, 15, 48, 2, 5, 46, 293, 48, 2, 49, 30, 270, 5, 19, 21, 28]
~~~

分析可知对应按键为`Tab, Tab, B, 1, 4, C, K, B, 1, N, A, Backspace, 4, R, Y, Enter`

此外还需要写代码通过DeviceIoControl使用控制码0x222404与驱动通讯获取flag

直接采用了https://xz.aliyun.com/news/5944的代码

~~~c
#include <windows.h>
#include <stdio.h>

void getflag()
{
    DWORD  z = 0;
    char buffer[0x64] = {0};
    HANDLE LINK;
    //“打开”驱动的符号链接
    LINK = CreateFileW(L"\\\\.\\DancingKeys",0,FILE_SHARE_READ|FILE_SHARE_WRITE,NULL,OPEN_EXISTING,0,NULL);
    DeviceIoControl(LINK, 0x222404,buffer,0x64,buffer,0x64,&z,(LPOVERLAPPED)NULL);
    printf("%s\n", buffer);
    //关闭符号链接句柄
    CloseHandle(LINK);
}

int main(int argc, char *argv[])
{
    getflag();
    Sleep(100000);
    return 0;
}
~~~

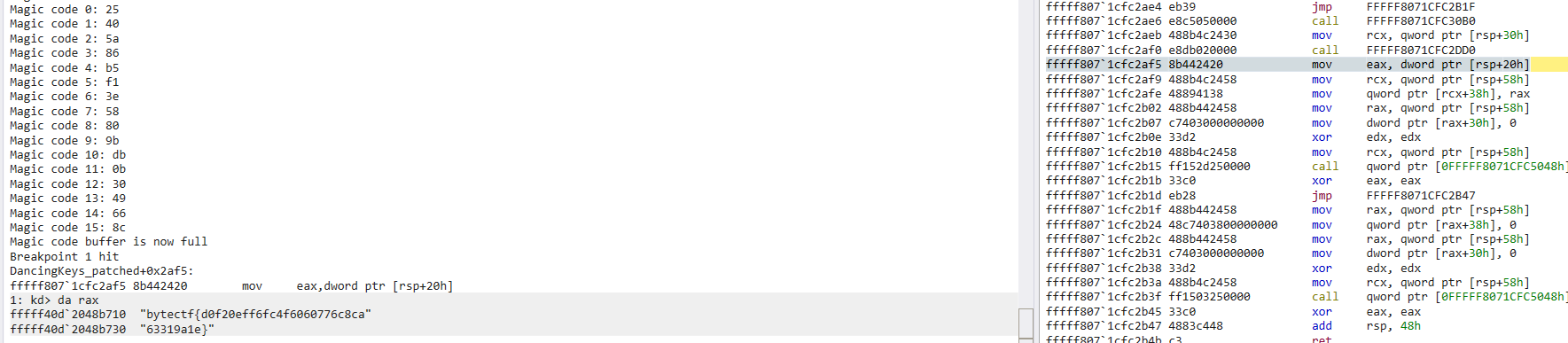

打开编译后的程序，然后回到桌面按下刚才的键值，此时可以直接拿到flag了

![image-20260211123910926.png](http://xherlock.top/usr/uploads/2026/02/2670264008.png)

## RCTF2017-MyDriver2-397

非常早的题了，难度非常低，会调试就可以了

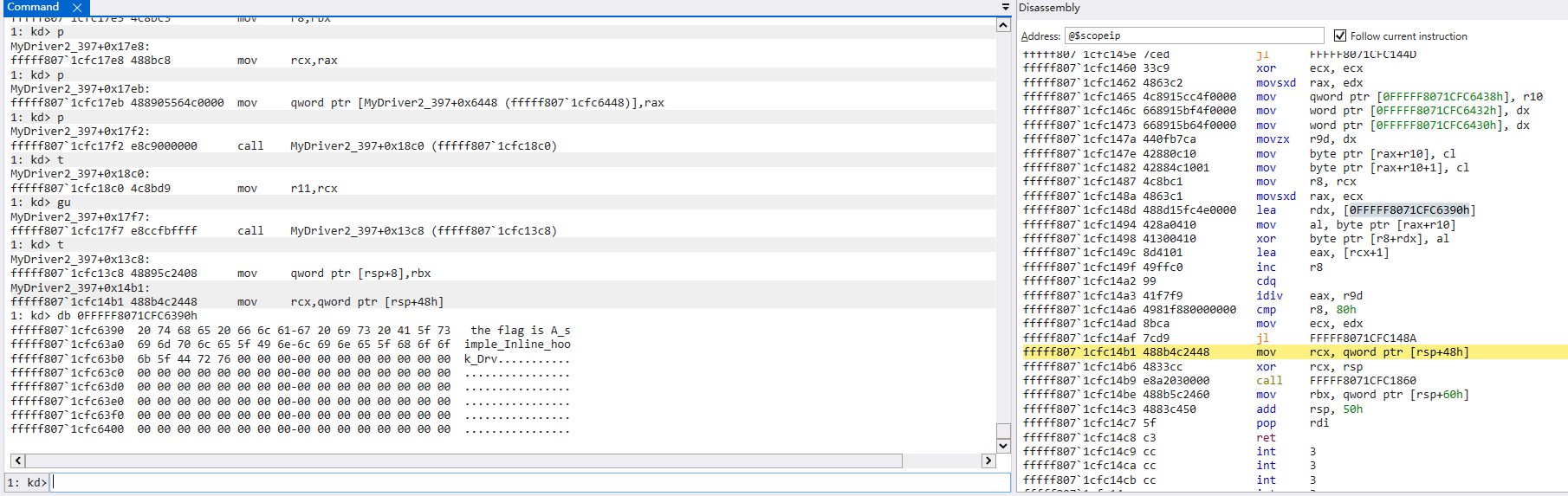

中间被rva坑了，以后先使用`!dh`获取入口点（address of entrypoint），然后下断点到入口点再去找具体逻辑，这个题直接断在flag解密的位置即可

![image-20260211170657745.png](http://xherlock.top/usr/uploads/2026/02/840973849.png)

下面分析下代码如何通讯获取flag，首先入口函数

~~~c++
NTSTATUS __stdcall DriverEntry(_DRIVER_OBJECT *DriverObject, PUNICODE_STRING RegistryPath)
{
  NTSTATUS result; // eax
  BOOLEAN IsWdmVersionAvailable; // al
  const WCHAR *v5; // rdx
  int v6; // ebx
  PVOID SystemRoutineAddress; // rax
  struct _UNICODE_STRING DestinationString; // [rsp+40h] [rbp-38h] BYREF
  struct _UNICODE_STRING SymbolicLinkName; // [rsp+50h] [rbp-28h] BYREF
  struct _UNICODE_STRING SystemRoutineName; // [rsp+60h] [rbp-18h] BYREF
  PDEVICE_OBJECT DeviceObject; // [rsp+80h] [rbp+8h] BYREF

DriverObject->MajorFunction[0] = (PDRIVER_DISPATCH)&sub_116A4;
  DriverObject->MajorFunction[2] = (PDRIVER_DISPATCH)&sub_116A4;
  DriverObject->MajorFunction[14] = (PDRIVER_DISPATCH)&sub_116CC;
  DriverObject->DriverUnload = (PDRIVER_UNLOAD)sub_11660;
  RtlInitUnicodeString(&DestinationString, L"\\Device\\Myhook");
  result = IoCreateDevice(DriverObject, 0, &DestinationString, 0x22u, 0, 0, &DeviceObject);
  if ( result >= 0 )
  {
    IsWdmVersionAvailable = IoIsWdmVersionAvailable(1u, 0x10u);
    v5 = L"\\DosDevices\\Global\\Myhook";
    if ( !IsWdmVersionAvailable )
      v5 = L"\\DosDevices\\Myhook";
    RtlInitUnicodeString(&SymbolicLinkName, v5);
    v6 = IoCreateSymbolicLink(&SymbolicLinkName, &DestinationString);
    if ( v6 >= 0 )
    {
      sub_11008();
      qword_16448 = (__int64)ExAllocatePool(NonPagedPool, 0x3200uLL);
      memmove((void *)qword_16448, &loc_13110, 0x3200uLL);
      sub_113C8();
      RtlInitUnicodeString(&SystemRoutineName, L"NtCreateFile");
      SystemRoutineAddress = MmGetSystemRoutineAddress(&SystemRoutineName);
      Src = (void *)sub_110B8(SystemRoutineAddress);
      return 0;
    }
    else
    {
      IoDeleteDevice(DeviceObject);
      return v6;
    }
  }
  return result;
}
~~~

### MajorFunction

DriverObject->MajorFunction通过下标值派发函数，值在Wdm.h中进行了定义

~~~c
#define IRP_MJ_CREATE                   0x00
#define IRP_MJ_CREATE_NAMED_PIPE        0x01
#define IRP_MJ_CLOSE                    0x02
#define IRP_MJ_READ                     0x03
#define IRP_MJ_WRITE                    0x04
#define IRP_MJ_QUERY_INFORMATION        0x05
#define IRP_MJ_SET_INFORMATION          0x06
#define IRP_MJ_QUERY_EA                 0x07
#define IRP_MJ_SET_EA                   0x08
#define IRP_MJ_FLUSH_BUFFERS            0x09
#define IRP_MJ_QUERY_VOLUME_INFORMATION 0x0a
#define IRP_MJ_SET_VOLUME_INFORMATION   0x0b
#define IRP_MJ_DIRECTORY_CONTROL        0x0c
#define IRP_MJ_FILE_SYSTEM_CONTROL      0x0d
#define IRP_MJ_DEVICE_CONTROL           0x0e
#define IRP_MJ_INTERNAL_DEVICE_CONTROL  0x0f
#define IRP_MJ_SHUTDOWN                 0x10
#define IRP_MJ_LOCK_CONTROL             0x11
#define IRP_MJ_CLEANUP                  0x12
#define IRP_MJ_CREATE_MAILSLOT          0x13
#define IRP_MJ_QUERY_SECURITY           0x14
#define IRP_MJ_SET_SECURITY             0x15
#define IRP_MJ_POWER                    0x16
#define IRP_MJ_SYSTEM_CONTROL           0x17
#define IRP_MJ_DEVICE_CHANGE            0x18
#define IRP_MJ_QUERY_QUOTA              0x19
#define IRP_MJ_SET_QUOTA                0x1a
#define IRP_MJ_PNP                      0x1b
#define IRP_MJ_PNP_POWER                IRP_MJ_PNP      // Obsolete....
#define IRP_MJ_MAXIMUM_FUNCTION         0x1b
~~~

* IRP_MJ_CREATE：用户态CreateFile会走sub_116A4
* IRP_MJ_CLOSE：CloseHandle会走sub_116A4
* IRP_MJ_DEVICE_CONTROL：DeviceIoControl会走sub_116CC
* DriverUnload卸载执行sub_11660

### 创建内核设备对象

使用IoCreateDevice创建了内核设备对象`\Device\Myhook`，0x22表示FILE_DEVICE_UNKNOWN（自定义控制设备）

### 创建用户态符号链接

使用IoCreateSymbolicLink创建用户态符号链接`\\.\Myhook`

### 创建用户态符号链接成功会进行初始化

* sub_11008：打开一个固定文件，应该是用来判断ZwCreateFile是否可用

~~~c++
  NTSTATUS sub_11008()
  {
    _UNICODE_STRING DestinationString; // [rsp+60h] [rbp-58h] BYREF
    _IO_STATUS_BLOCK IoStatusBlock; // [rsp+70h] [rbp-48h] BYREF
    _OBJECT_ATTRIBUTES ObjectAttributes; // [rsp+80h] [rbp-38h] BYREF

RtlInitUnicodeString(&DestinationString, L"\\??\\C:\\WINDOWS\\system32\\taskhost.exe");
    ObjectAttributes.RootDirectory = 0LL;
    ObjectAttributes.SecurityDescriptor = 0LL;
    ObjectAttributes.SecurityQualityOfService = 0LL;
    ObjectAttributes.Length = 48;
    ObjectAttributes.Attributes = 576;
    ObjectAttributes.ObjectName = &DestinationString;
    return ZwCreateFile(&FileHandle, 0x80000000, &ObjectAttributes, &IoStatusBlock, 0LL, 0x80u, 0, 3u, 0x40u, 0LL, 0);
  }
  ~~~
* memmove拷贝了一段代码到NonPagedPool
* sub_113C8：解密字符串，算法非常简单，就是异或

~~~python
  s = [0x70, 0x74, 0x37, 0x65, 0x47, 0x66, 0x05, 0x61, 0x11, 0x20, 0x0C, 0x73, 0x6D, 0x41, 0x3A, 0x73, 0x36, 0x6D, 0x16, 0x6C, 0x09, 0x5F, 0x28, 0x6E, 0x0B, 0x69, 0x31, 0x65, 0x6D, 0x68, 0x5C, 0x6F, 0x58, 0x5F, 0x6A, 0x72, 0x02, 0x00, 0x78, 0x00, 0x74, 0x00, 0x50, 0x00, 0x5F, 0x00, 0x67, 0x00, 0x69, 0x00, 0x76, 0x00, 0x65, 0x00, 0x4D, 0x00, 0x65, 0x00, 0x5F, 0x00, 0x66, 0x00, 0x6C, 0x00, 0x61, 0x00, 0x67, 0x00, 0x5F, 0x00, 0x32, 0x00, 0x33, 0x00, 0x33, 0x00, 0x2E, 0x00, 0x74, 0x00, 0x78, 0x00, 0x74, 0x00, 0x50, 0x00, 0x5F, 0x00, 0x67, 0x00, 0x69, 0x00, 0x76, 0x00, 0x65, 0x00, 0x4D, 0x00, 0x65, 0x00, 0x5F, 0x00, 0x66, 0x00, 0x6C, 0x00, 0x61, 0x00, 0x67, 0x00, 0x5F, 0x00, 0x32, 0x00, 0x33, 0x00, 0x33, 0x00, 0x2E, 0x00, 0x74, 0x00, 0x78, 0x00, 0x74, 0x00, 0x50, 0x00]
  xor = 0x5c3113c5
  s1 = [0x95, 0x13, 0x6E, 0x5C, 0xA2, 0x13, 0x58, 0x5C, 0xB3, 0x13, 0x54, 0x5C, 0x88, 0x13, 0x54, 0x5C, 0x9A, 0x13, 0x57, 0x5C, 0xA9, 0x13, 0x50, 0x5C, 0xA2, 0x13, 0x6E, 0x5C, 0xF7, 0x13, 0x02, 0x5C, 0xF6, 0x13, 0x1F, 0x5C, 0xB1, 0x13, 0x49, 0x5C, 0xB1, 0x13, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00]
  s1 = [int.from_bytes(s1[i:i+4], byteorder='little')^xor for i in range(0, len(s1), 4)]
  s1 = b"".join([i.to_bytes(4, byteorder='little') for i in s1])
  for i in range(128):
      s[i] ^= s1[i%0x2a]
  print(bytes(s))
  ~~~

### 实现inline hook NtCreateFile

* 使用MmGetSystemRoutineAddress获取了NtCreateFile地址并传入sub_110B8
* sub_110B8：

~~~c++
  PVOID __fastcall sub_110B8(char *Dst)
  {
    char *v2; // rdi
    unsigned int v3; // ebx
    unsigned int v4; // eax
    PVOID PoolWithTag; // rdi
    unsigned __int8 CurrentIrql; // bl
    unsigned __int64 v7; // rcx
    unsigned __int64 v8; // r11
    char *v9; // rbx
    __int64 v10; // r11
    unsigned __int64 v11; // rax
    unsigned __int64 v12; // rax
    _BYTE v14[14]; // [rsp+20h] [rbp-38h]
    _BYTE v15[14]; // [rsp+30h] [rbp-28h]

*(_QWORD *)v15 = 0xFFFF0000000025FFuLL;
    v2 = Dst;
    v3 = 0;
    *(_QWORD *)v14 = 0xFFFF0000000025FFuLL;
    do
    {
      v4 = qword_16448(v2, 64LL);
      v3 += v4;
      v2 += v4;
    }
    while ( v3 <= 0xE );
    LODWORD(Size) = v3;
    PoolWithTag = ExAllocatePoolWithTag(NonPagedPool, v3, 'SYSQ');
    CurrentIrql = KeGetCurrentIrql();
    __writecr8(2uLL);
    v7 = __readcr0();
    __writecr0(v7 & 0xFFFFFFFFFFFEFFFFuLL);
    _disable();
    memmove(PoolWithTag, Dst, (unsigned int)Size);
    v8 = __readcr0();
    _enable();
    __writecr0(v8 | 0x10000);
    __writecr8(CurrentIrql);
    v9 = (char *)ExAllocatePoolWithTag(NonPagedPool, (unsigned int)(Size + 14), 'SYSQ');
    memset(v9, 144, (unsigned int)(Size + 14));
    *(_QWORD *)&v14[6] = &Dst[(unsigned int)Size];
    memmove(v9, PoolWithTag, (unsigned int)Size);
    v10 = (unsigned int)Size;
    *(_QWORD *)&v9[(unsigned int)Size] = *(_QWORD *)v14;
    *(_DWORD *)&v9[v10 + 8] = *(_DWORD *)&v14[8];
    *(_WORD *)&v9[v10 + 12] = *(_WORD *)&v14[12];
    qword_16420 = (__int64 (__fastcall *)(_QWORD, _QWORD, _QWORD, _QWORD, _QWORD, _DWORD, _DWORD))v9;
    *(_QWORD *)&v15[6] = sub_114D0;
    LOBYTE(v9) = KeGetCurrentIrql();
    __writecr8(2uLL);
    v11 = __readcr0();
    __writecr0(v11 & 0xFFFFFFFFFFFEFFFFuLL);
    _disable();
    memset(Dst, 144, (unsigned int)Size);
    *(_QWORD *)Dst = *(_QWORD *)v15;
    *((_DWORD *)Dst + 2) = *(_DWORD *)&v15[8];
    *((_WORD *)Dst + 6) = *(_WORD *)&v15[12];
    v12 = __readcr0();
    _enable();
    __writecr0(v12 | 0x10000);
    __writecr8((unsigned __int8)v9);
    return PoolWithTag;
  }
  ~~~

1. 利用qword_16448函数计算汇编指令字节，具体的我们可以不去管他的实现，最终目标是要在NtCreateFile开头找到某个汇编指令地址前字节不小于14（值为v3/Size）。**为什么不小于14呢？答：要确保能够装得下3、4步骤构造的jmp指令**
  2. 接着ExAllocatePoolWithTag分配Size大小空间给PoolWithTag，并拷贝NtCreateFile函数开头v3字节到PoolWithTag
  3. 再次ExAllocatePoolWithTag分配Size+14大小空间给v9，同时初始化&v14[6]开始8字节为NtCreateFile Size位置的地址（也就是inline hook的返回地址）

**填充过程**：首先全部填充nop，然后将上一步的PoolWithTag拷贝进去，然后紧跟着填充了14字节v14，此时v14内容是`FF 25 00 00 00 00 + 返回NtCreateFile的地址8字节`，相当于实现了`jmp addr`

最终v9赋值给了qword_16420
  4. 同第三步构造了v15内容是`FF 25 00 00 00 00 + sub_114D0的地址8字节`，把v15填充回了Dst，也就是NtCreateFile的开头，所以执行NtCreateFile会先跳转sub_114D0

到这里inline hook基本分析完成

### hook函数分析

sub_114D0如下，可以看到开头call调用了qword_16420，所以相当于调用了NtCreateFile并获取返回结果

~~~c++
__int64 __fastcall sub_114D0(__int64 a1, __int64 a2, POBJECT_ATTRIBUTES a3, __int64 a4, __int64 a5, int a6, int a7)
{
  int v8; // esi
  int v9; // eax
  struct _UNICODE_STRING *ObjectName; // rdi
  __int64 v11; // rax
  unsigned int i; // ebx

v8 = qword_16420(a1, a2, a3, a4, a5, a6, a7);
  if ( v8 >= 0 )
  {
    if ( wcsstr(a3->ObjectName->Buffer, SubStr) )
    {
      v9 = dword_16428;
      ObjectName = a3->ObjectName;
      if ( dword_16428 != -1 )
      {
        ++dword_16428;
        if ( (unsigned int)(v9 + 1) >= 8 )
        {
          v11 = 0LL;
          for ( i = 0; byte_16390[v11]; ++i )
          {
            if ( v11 >= 128 )
              break;
            ++v11;
          }
          sub_115DC();
          sub_112B4(ObjectName, (__int64)byte_16390, i);
          dword_16428 = -1;
        }
      }
    }
  }
  return (unsigned int)v8;
}
~~~

NtCreateFile成功会使用wcsstr去匹配检查创建文件的路径里是否包含SubStr，根据计算可知值为`P_giveMe_flag_233.txt`

接着利用dword_16428作为计数器，当比较满足8次时才会触发if里的内容

if里首先统计了解密完的byte_16390字符串长度，接着sub_115DC，很明显是在卸载hook

~~~c++
__int64 sub_115DC()
{
  PVOID SystemRoutineAddress; // rax
  size_t v1; // r8
  const void *v2; // rdx
  unsigned __int8 CurrentIrql; // bl
  unsigned __int64 v4; // rcx
  unsigned __int64 v5; // r11
  __int64 result; // rax
  struct _UNICODE_STRING DestinationString; // [rsp+20h] [rbp-18h] BYREF

RtlInitUnicodeString(&DestinationString, L"NtCreateFile");
  SystemRoutineAddress = MmGetSystemRoutineAddress(&DestinationString);
  v1 = (unsigned int)Size;
  v2 = Src;
  CurrentIrql = KeGetCurrentIrql();
  __writecr8(2uLL);
  v4 = __readcr0();
  __writecr0(v4 & 0xFFFFFFFFFFFEFFFFuLL);
  _disable();
  memmove(SystemRoutineAddress, v2, v1);
  v5 = __readcr0();
  _enable();
  __writecr0(v5 | 0x10000);
  result = CurrentIrql;
  __writecr8(CurrentIrql);
  Src = 0LL;
  LODWORD(Size) = 0;
  return result;
}
~~~

接着把解密后的flag写入文件

~~~c++
char __fastcall sub_112B4(struct _UNICODE_STRING *a1, __int64 a2, unsigned int a3)
{
  char v3; // bl
  __int64 v4; // rdi
  struct _IO_STATUS_BLOCK IoStatusBlock; // [rsp+60h] [rbp-48h] BYREF
  struct _OBJECT_ATTRIBUTES v7; // [rsp+70h] [rbp-38h] BYREF
  union _LARGE_INTEGER ByteOffset; // [rsp+B8h] [rbp+10h] BYREF
  HANDLE FileHandle; // [rsp+C8h] [rbp+20h] BYREF

ByteOffset.QuadPart = 0LL;
  v7.Length = 48;
  IoStatusBlock.Pointer = 0LL;
  v7.RootDirectory = 0LL;
  v7.SecurityDescriptor = 0LL;
  v7.SecurityQualityOfService = 0LL;
  v3 = 1;
  v4 = a3;
  v7.ObjectName = a1;
  IoStatusBlock.Information = 0LL;
  v7.Attributes = 576;
  if ( ZwCreateFile(&FileHandle, 0x40000000u, &v7, &IoStatusBlock, 0LL, 0x80u, 1u, 3u, 0x60u, 0LL, 0) < 0
    || ZwWriteFile(FileHandle, 0LL, 0LL, 0LL, &IoStatusBlock, byte_16390, v4, &ByteOffset, 0LL) < 0 )
  {
    v3 = 0;
  }
  else
  {
    ByteOffset.QuadPart += v4;
  }
  if ( FileHandle )
    ZwClose(FileHandle);
  return v3;
}
~~~

### 获取flag

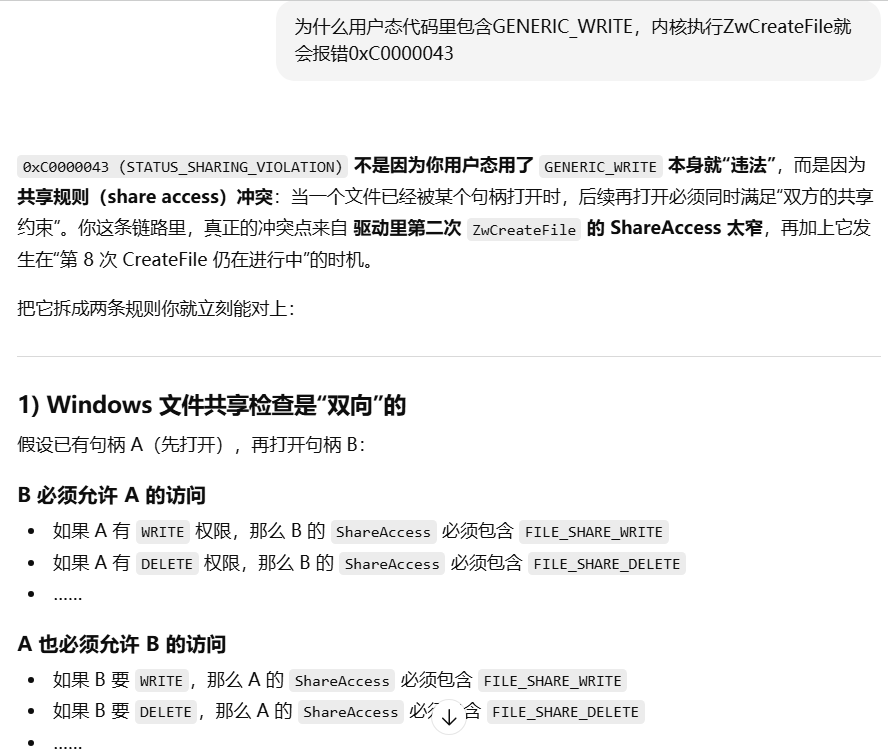

从前面分析可知我们需要做的就是跑着驱动，然后执行8次CreateFile，每次目录里都需要包括`P_giveMe_flag_233.txt`，注意8次CreateFileW一定不要包含GENERIC_WRITE，否则就会报错蓝屏（ZwCreateFile失败导致FileHandle不对）

![image-20260212124218628.png](http://xherlock.top/usr/uploads/2026/02/1381852988.png)

~~~c
// trigger_mydriver2.c
#define _CRT_SECURE_NO_WARNINGS
#include <windows.h>
#include <stdio.h>
#include <wchar.h>

int wmain(int argc, wchar_t **argv) {
    const wchar_t *needle = L"P_giveMe_flag_233.txt";
    const wchar_t *path = (argc > 1) ? argv[1] : L"C:\\Users\\Administrator\\Desktop\\re_sys\\RCTF2017-MyDriver2-397\\P_giveMe_flag_233.txt";

if (wcsstr(path, needle) == NULL) {
        wprintf(L"[!] Path must contain: %ls\n", needle);
        return 1;
    }

wprintf(L"[*] Target path: %ls\n", path);
    wprintf(L"[*] Triggering 8 successful CreateFileW calls...\n");

for (int i = 1; i <= 8; i++) {
        HANDLE h = CreateFileW(
            path,
            GENERIC_READ,
            FILE_SHARE_READ | FILE_SHARE_WRITE | FILE_SHARE_DELETE,
            NULL,
            OPEN_ALWAYS,
            FILE_ATTRIBUTE_NORMAL,
            NULL
        );
        if (h == INVALID_HANDLE_VALUE) {
            DWORD e = GetLastError();
            wprintf(L"[!] CreateFileW #%d failed, err=%lu\n", i, e);
            return 2;
        }
        CloseHandle(h);
        wprintf(L"[+] CreateFileW #%d ok\n", i);
    }

Sleep(300); // give hook write a moment

HANDLE rf = CreateFileW(
        path, GENERIC_READ, FILE_SHARE_READ | FILE_SHARE_WRITE | FILE_SHARE_DELETE,
        NULL, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, NULL
    );
    if (rf == INVALID_HANDLE_VALUE) {
        wprintf(L"[!] Open for read failed, err=%lu\n", GetLastError());
        return 3;
    }

char buf[512] = {0};
    DWORD got = 0;
    if (!ReadFile(rf, buf, sizeof(buf) - 1, &got, NULL)) {
        wprintf(L"[!] ReadFile failed, err=%lu\n", GetLastError());
        CloseHandle(rf);
        return 4;
    }
    CloseHandle(rf);

printf("[*] File content (%lu bytes): %s\n", got, buf);
    return 0;
}

~~~

最后修改：2026 年 02 月 12 日

如果觉得我的文章对你有用，请随意赞赏

发表评论取消回复
使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款

评论 *

私密评论

名称 *

🎲

邮箱 *

地址

Reverse（十一）
浏览次数: 17596
Reverse（十三）
浏览次数: 7198
Win11新机鼓捣记录
浏览次数: 3075
js逆向爬虫1
浏览次数: 2582
HTML1
浏览次数: 2373

http://www.baidu.com
hello
laokey
申请友链，链接已加！名称：LaoKey's Blog链接：ht...
laokey
大佬，来个友链呗名称：LaoKey's Blog链接：http...
mars
博主你好，请问怎么知道的alloc函数属于Buffer下的方法...
lj
该评论仅登录用户及评论双方可见

网络层（三）
浏览次数: 746
应用层（五）
浏览次数: 1121
RSA
浏览次数: 895
栈~数制转换
浏览次数: 2099
运输层（二）
浏览次数: 859

驱动逆向2

Xherlock • 2026 年 02 月 12 日

# 驱动逆向2

## ByteCTF2019-DancingKeys

非常简单，静态分析就能出。类似Shadow对键盘输入做了个监听

驱动主函数如下

~~~c++
__int64 __fastcall sub_140002C90(struct _DRIVER_OBJECT *a1)
{
  unsigned int i; // [rsp+20h] [rbp-18h]

其中前三个函数校验了windows版本、CPU型号以及调试检测

~~~c++
__int64 version_check()
{
  ULONG MajorVersion; // [rsp+40h] [rbp-18h] BYREF
  ULONG BuildNumber; // [rsp+44h] [rbp-14h] BYREF
  ULONG MinorVersion[4]; // [rsp+48h] [rbp-10h] BYREF

可知version_check要求dword_140006068值为0xDEADBEEF，cpu_check要求cpu值（unk_140006070）为`FakeIntel`

中间的基本就是在做键盘过滤程序安装、监听，其中keyboard_listen读取了16字节输入存入byte_140006890

最后是dec_flag

~~~c++
__int64 __fastcall dec_flag(PDEVICE_OBJECT a1, IRP *a2)
{
  unsigned int v3; // [rsp+20h] [rbp-28h]
  __int64 v4; // [rsp+28h] [rbp-20h]
  struct _IRP *MasterIrp; // [rsp+30h] [rbp-18h]

其中sub_1400030B0对前面unk_140006070（12字节，多的补0）+dword_140006068总共16字节，每4字节做一次md5，然后保存前8字节

~~~c++
__int64 sub_1400030B0()
{
  __int64 result; // rax
  unsigned int i; // [rsp+20h] [rbp-38h]
  _DWORD v2[4]; // [rsp+28h] [rbp-30h] BYREF

sub_140002DD0很明显是在做AES-CBC解密，其中key来自unk_140006048（16字节），iv来自byte_140006890（16字节，给的word文件里），密文v13

for ( i = 0; ; ++i )
  {
    result = i;
    if ( i >= 0x10u )
      break;
    *(a1 + i) ^= *(a2 + i);
  }
  return result;
}
~~~

所以写脚本解密即可

~~~python
from Crypto.Cipher import AES
from hashlib import md5

得到`bytectf{d0f20eff6fc4f6060776c8ca63319a1e}`

接下来学习如何patch使得驱动自己吐出flag

首先要patch的点肯定是前三个函数，可以考虑直接nop掉，直接手动把dword_140006068和unk_140006070填好

![image-20260211120411185.png](http://xherlock.top/usr/uploads/2026/02/3989587233.png)

然后下断点在解密flag完成后。首先先还原iv输入键值

分析可知对应按键为`Tab, Tab, B, 1, 4, C, K, B, 1, N, A, Backspace, 4, R, Y, Enter`

此外还需要写代码通过DeviceIoControl使用控制码0x222404与驱动通讯获取flag

直接采用了https://xz.aliyun.com/news/5944的代码

~~~c
#include <windows.h>
#include <stdio.h>

int main(int argc, char *argv[])
{
    getflag();
    Sleep(100000);
    return 0;
}
~~~

打开编译后的程序，然后回到桌面按下刚才的键值，此时可以直接拿到flag了

![image-20260211123910926.png](http://xherlock.top/usr/uploads/2026/02/2670264008.png)

## RCTF2017-MyDriver2-397

非常早的题了，难度非常低，会调试就可以了

中间被rva坑了，以后先使用`!dh`获取入口点（address of entrypoint），然后下断点到入口点再去找具体逻辑，这个题直接断在flag解密的位置即可

![image-20260211170657745.png](http://xherlock.top/usr/uploads/2026/02/840973849.png)

下面分析下代码如何通讯获取flag，首先入口函数

### MajorFunction

DriverObject->MajorFunction通过下标值派发函数，值在Wdm.h中进行了定义

* IRP_MJ_CREATE：用户态CreateFile会走sub_116A4
* IRP_MJ_CLOSE：CloseHandle会走sub_116A4
* IRP_MJ_DEVICE_CONTROL：DeviceIoControl会走sub_116CC
* DriverUnload卸载执行sub_11660

### 创建内核设备对象

使用IoCreateDevice创建了内核设备对象`\Device\Myhook`，0x22表示FILE_DEVICE_UNKNOWN（自定义控制设备）

### 创建用户态符号链接

使用IoCreateSymbolicLink创建用户态符号链接`\\.\Myhook`

### 创建用户态符号链接成功会进行初始化

* sub_11008：打开一个固定文件，应该是用来判断ZwCreateFile是否可用

### 实现inline hook NtCreateFile

* 使用MmGetSystemRoutineAddress获取了NtCreateFile地址并传入sub_110B8
* sub_110B8：

到这里inline hook基本分析完成

### hook函数分析

sub_114D0如下，可以看到开头call调用了qword_16420，所以相当于调用了NtCreateFile并获取返回结果

NtCreateFile成功会使用wcsstr去匹配检查创建文件的路径里是否包含SubStr，根据计算可知值为`P_giveMe_flag_233.txt`

接着利用dword_16428作为计数器，当比较满足8次时才会触发if里的内容

if里首先统计了解密完的byte_16390字符串长度，接着sub_115DC，很明显是在卸载hook

接着把解密后的flag写入文件

### 获取flag

![image-20260212124218628.png](http://xherlock.top/usr/uploads/2026/02/1381852988.png)

~~~c
// trigger_mydriver2.c
#define _CRT_SECURE_NO_WARNINGS
#include <windows.h>
#include <stdio.h>
#include <wchar.h>

if (wcsstr(path, needle) == NULL) {
        wprintf(L"[!] Path must contain: %ls\n", needle);
        return 1;
    }

wprintf(L"[*] Target path: %ls\n", path);
    wprintf(L"[*] Triggering 8 successful CreateFileW calls...\n");

Sleep(300); // give hook write a moment

printf("[*] File content (%lu bytes): %s\n", got, buf);
    return 0;
}

~~~

发表评论 取消回复 使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款

驱动逆向2

发表评论取消回复
使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款
