## 某蒸汽平台DRM逆向分析

之前在玩国产一个恐怖游戏，因为选的噩梦模式没法中途降难度，所以来分析下游戏的逻辑。最后发现实际上去分析逆向了蒸汽平台强制登陆Steam以及保护游戏代码的逻辑，分析完搜索了下发现这个保护机制叫做[SteamDRM](https://partner.steamgames.com/doc/features/drm)。

开始分析，PaperDollsOriginal.exe是入口

## 启动程序

~~~c++
int __stdcall WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpCmdLine, int nShowCmd)
{
  char *v6; // rdi
  __int64 v8; // rax
  __int64 v9; // rcx
  WCHAR *v10; // rbx
  char *v11; // r14
  __int64 v12; // rcx
  __int64 v13; // rax
  __int64 v14; // rcx
  __int64 v15; // rax
  __int64 v16; // rcx
  __int64 v17; // rax
  unsigned __int64 v19; // rbx
  wchar_t *v20; // rsi
  DWORD v21; // ebx
  DWORD LastError; // edi
  __int64 v23; // rcx
  WCHAR *v24; // rbx
  DWORD ExitCode; // [rsp+50h] [rbp-B0h] BYREF
  struct _PROCESS_INFORMATION ProcessInformation; // [rsp+58h] [rbp-A8h] BYREF
  struct _STARTUPINFOW StartupInfo; // [rsp+70h] [rbp-90h] BYREF
  WCHAR pszBuf[264]; // [rsp+E0h] [rbp-20h] BYREF
  WCHAR pszPath[264]; // [rsp+2F0h] [rbp+1F0h] BYREF
  WCHAR Filename[264]; // [rsp+500h] [rbp+400h] BYREF

GetModuleFileNameW(hInstance, Filename, 0x208u);
  PathCanonicalizeW(pszBuf, Filename);
  PathRemoveFileSpecW(pszBuf);
  v6 = sub_7FF618CA1270(hInstance, (const WCHAR *)201);
  if ( v6 )
  {
    v8 = -1LL;
    do
      ++v8;
    while ( *(_WORD *)&v6[2 * v8] );
    v9 = -1LL;
    do
      ++v9;
    while ( pszBuf[v9] );
    v10 = (WCHAR *)operator new(saturated_mul(v8 + 20 + v9, 2uLL));
    wsprintfW(v10, L"%s\\%s", pszBuf, v6);
    PathCanonicalizeW(pszPath, v10);
    j_j_free(v10);
    PathRemoveFileSpecW(pszPath);
    v11 = sub_7FF618CA1270(hInstance, (const WCHAR *)202);
    v12 = -1LL;
    do
      ++v12;
    while ( *(_WORD *)&lpCmdLine[2 * v12] );
    v13 = -1LL;
    do
      ++v13;
    while ( *(_WORD *)&v11[2 * v13] );
    v14 = v13 + v12;
    v15 = -1LL;
    do
      ++v15;
    while ( *(_WORD *)&v6[2 * v15] );
    v16 = v15 + v14;
    v17 = -1LL;
    while ( pszBuf[++v17] != 0 )
      ;
    v19 = v16 + v17 + 20;
    v20 = (wchar_t *)operator new(saturated_mul(v19, 2uLL));
    swprintf(v20, v19, L"\"%s\\%s\" %s %s", pszBuf, v6, v11, lpCmdLine);
    j_j_free(v11);
    j_j_free(v6);
    v21 = sub_7FF618CA1000(pszBuf, pszPath);
    if ( !v21 )
    {
      memset(&StartupInfo.cb + 1, 0, 0x64uLL);
      StartupInfo.cb = 104;
      memset(&ProcessInformation, 0, sizeof(ProcessInformation));
      if ( CreateProcessW(0LL, v20, 0LL, 0LL, 0, 0, 0LL, 0LL, &StartupInfo, &ProcessInformation) )
      {
        WaitForSingleObject(ProcessInformation.hProcess, 0xFFFFFFFF);
        ExitCode = 9006;
        GetExitCodeProcess(ProcessInformation.hProcess, &ExitCode);
        CloseHandle(ProcessInformation.hThread);
        CloseHandle(ProcessInformation.hProcess);
        v21 = ExitCode;
      }
      else
      {
        LastError = GetLastError();
        v23 = -1LL;
        do
          ++v23;
        while ( v20[v23] );
        v24 = (WCHAR *)operator new(saturated_mul(v23 + 50, 2uLL));
        wsprintfW(v24, L"Couldn't start:\n%s\nCreateProcess() returned %x.", v20, LastError);
        MessageBoxW(0LL, v24, 0LL, 0);
        j_j_free(v24);
        v21 = 9005;
      }
    }
    j_j_free(v20);
    return v21;
  }
  else
  {
    MessageBoxW(0LL, L"This program is used for packaged games and is not meant to be run directly.", 0LL, 0);
    return 9000;
  }
}
~~~

可以发现获取了当前目录和一个ID为201的资源数据，使用ResourceHacker查看发现资源值为`PDS/Binaries/Win64/PDS-Win64-Shipping.exe`

利用swprintf将当前目录和资源里的目录拼接

接着又读取了ID为202的资源数据（值为`PSD`），然后和上一个做了拼接，最终拼接的启动命令是`"游戏目录\PDS/Binaries/Win64/PDS-Win64-Shipping.exe" PDS 其他参数`

接着调用sub_7FF618CA1000检查了`MSVCP140.DLL`、`ucrtbase.dll`等DLL依赖，如果不存在就启动`Engine\\Extras\\Redist\\en-us\\UE4PrereqSetup_x64.exe`进行安装

~~~c++
__int64 __fastcall sub_7FF618CA1000(const WCHAR *a1, const WCHAR *a2)
{
  DWORD ExitCode[4]; // [rsp+20h] [rbp-E0h] BYREF
  SHELLEXECUTEINFOW pExecInfo; // [rsp+30h] [rbp-D0h] BYREF
  WCHAR pszDest[264]; // [rsp+A0h] [rbp-60h] BYREF
  wchar_t Destination[1024]; // [rsp+2B0h] [rbp+1B0h] BYREF
  WCHAR Text[1024]; // [rsp+AB0h] [rbp+9B0h] BYREF

memset(Destination, 0, sizeof(Destination));
  if ( !LoadLibraryW(L"MSVCP140.DLL") && (PathCombineW(pszDest, a2, L"MSVCP140.DLL"), !LoadLibraryW(pszDest))
    || !LoadLibraryW(L"ucrtbase.dll") && (PathCombineW(pszDest, a2, L"ucrtbase.dll"), !LoadLibraryW(pszDest)) )
  {
    wcscat_s(Destination, 0x400uLL, L"Microsoft Visual C++ 2015 Runtime\n");
  }
  if ( !LoadLibraryW(L"XINPUT1_3.DLL") )
  {
    PathCombineW(pszDest, a2, L"XINPUT1_3.DLL");
    if ( !LoadLibraryW(pszDest) )
      wcscat_s(Destination, 0x400uLL, L"DirectX Runtime\n");
  }
  if ( !Destination[0] )
    return 0LL;
  wsprintfW(Text, L"The following component(s) are required to run this program:\n\n%s", Destination);
  PathCombineW(pszDest, a1, L"Engine\\Extras\\Redist\\en-us\\UE4PrereqSetup_x64.exe");
  if ( GetFileAttributesW(pszDest) == -1 )
  {
    MessageBoxW(0LL, Text, 0LL, 0);
    return 9001LL;
  }
  wcscat_s(Text, 0x400uLL, L"\nWould you like to install them now?");
  if ( MessageBoxW(0LL, Text, 0LL, 4u) == 7 )
    return 9002LL;
  memset(&pExecInfo, 0, sizeof(pExecInfo));
  pExecInfo.cbSize = 112;
  pExecInfo.lpFile = pszDest;
  pExecInfo.fMask = 64;
  pExecInfo.nShow = 1;
  if ( !ShellExecuteExW(&pExecInfo) )
    return 9003LL;
  ExitCode[0] = 0;
  WaitForSingleObject(pExecInfo.hProcess, 0xFFFFFFFF);
  GetExitCodeProcess(pExecInfo.hProcess, ExitCode);
  CloseHandle(pExecInfo.hProcess);
  if ( ExitCode[0] )
    return 9004LL;
  else
    return 0LL;
}
~~~

是典型的Steam平台引导程序，不需要分析过多，直接去分析`PDS\Binaries\Win64`下的`PDS-Win64-Shipping.exe`

## PDS-Win64-Shipping.exe的.bind段

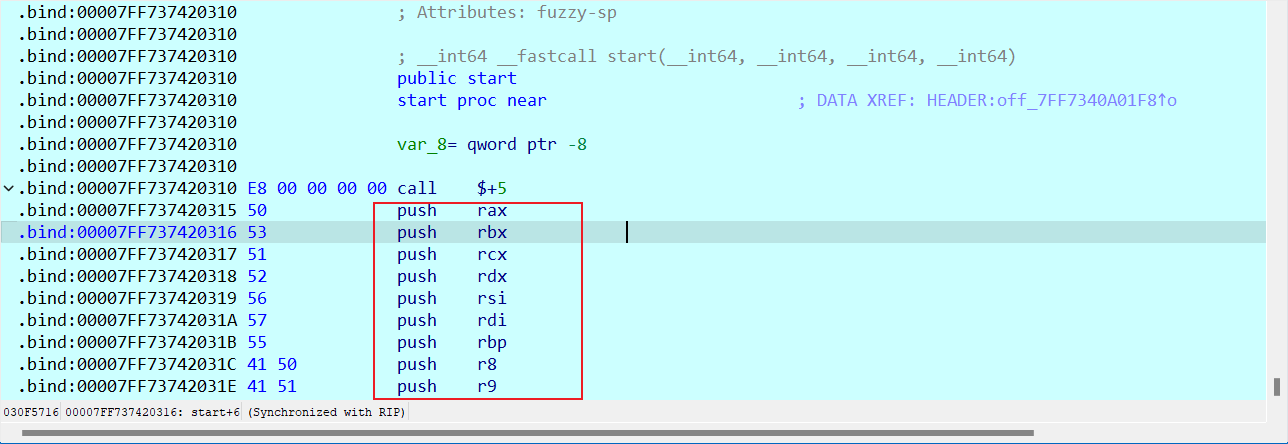

start函数首先push了全部寄存器

![image-20260318145119927.png](http://xherlock.top/usr/uploads/2026/04/3320001549.png)

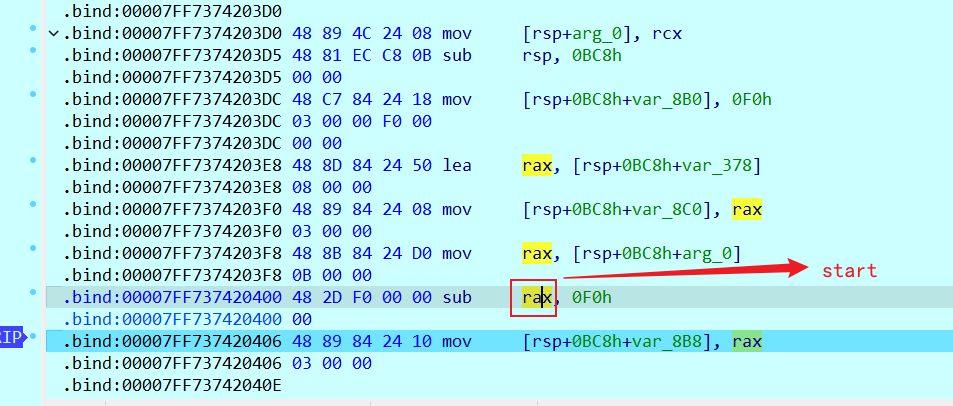

接着调用一个函数，开头计算出了start-0xf0的地址

![image-20260318145342742.png](http://xherlock.top/usr/uploads/2026/04/2477313946.png)

发现地址指向一块没法反汇编的区域

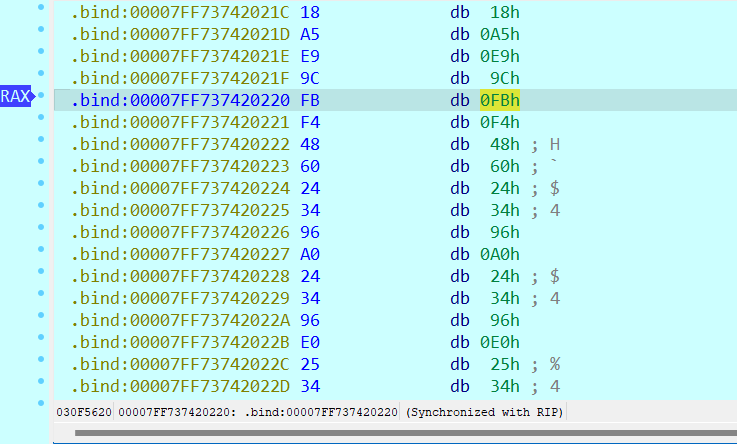

![image-20260318145620965.png](http://xherlock.top/usr/uploads/2026/04/2432082165.png)

~~~assembly
.bind:00007FF737420406 48 89 84 24 10 mov     [rsp+0BC8h+var_8B8], rax
.bind:00007FF737420406 03 00 00
.bind:00007FF73742040E
.bind:00007FF73742040E                loc_7FF73742040E:                       ; CODE XREF: sub_7FF7374203D0+97↓j
.bind:00007FF73742040E 48 83 BC 24 18 cmp     [rsp+0BC8h+var_8B0], 0	; 初始值为0xF0，正好对应代码段长度
.bind:00007FF73742040E 03 00 00 00
.bind:00007FF737420417 76 50          jbe     short loc_7FF737420469
.bind:00007FF737420419 48 8B 84 24 08 mov     rax, [rsp+0BC8h+var_8C0]
.bind:00007FF737420419 03 00 00
.bind:00007FF737420421 48 8B 8C 24 10 mov     rcx, [rsp+0BC8h+var_8B8]
.bind:00007FF737420421 03 00 00
.bind:00007FF737420429 0F B6 09       movzx   ecx, byte ptr [rcx]
.bind:00007FF73742042C 88 08          mov     [rax], cl
.bind:00007FF73742042E 48 8B 84 24 08 mov     rax, [rsp+0BC8h+var_8C0]
.bind:00007FF73742042E 03 00 00
.bind:00007FF737420436 48 FF C0       inc     rax
.bind:00007FF737420439 48 89 84 24 08 mov     [rsp+0BC8h+var_8C0], rax
.bind:00007FF737420439 03 00 00
.bind:00007FF737420441 48 8B 84 24 10 mov     rax, [rsp+0BC8h+var_8B8]
.bind:00007FF737420441 03 00 00
.bind:00007FF737420449 48 FF C0       inc     rax
.bind:00007FF73742044C 48 89 84 24 10 mov     [rsp+0BC8h+var_8B8], rax
.bind:00007FF73742044C 03 00 00
.bind:00007FF737420454 48 8B 84 24 18 mov     rax, [rsp+0BC8h+var_8B0]
.bind:00007FF737420454 03 00 00
.bind:00007FF73742045C 48 FF C8       dec     rax
.bind:00007FF73742045F 48 89 84 24 18 mov     [rsp+0BC8h+var_8B0], rax
.bind:00007FF73742045F 03 00 00
.bind:00007FF737420467 EB A5          jmp     short loc_7FF73742040E
.bind:00007FF737420469                ; ---------------------------------------------------------------------------
.bind:00007FF737420469
.bind:00007FF737420469                loc_7FF737420469:                       ; CODE XREF: sub_7FF7374203D0+47↑j
.bind:00007FF737420469 48 8D 84 24 50 lea     rax, [rsp+0BC8h+var_378]
~~~

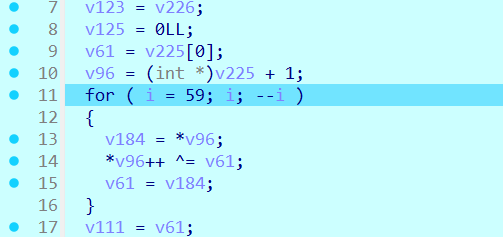

接着开始循环拷贝字节到`[rsp+0BC8h+var_378]`，然后循环异或，每次后四字节异或前四字节

![image-20260318150830249.png](http://xherlock.top/usr/uploads/2026/04/3944945510.png)

检查解密出来的qword0.HIDWORD是否为0xC0DEC0DF（类似魔数），然后计算了start-0x3380310（qword2），计算出的地址指向了一个ImaeBase HEADER PE头；

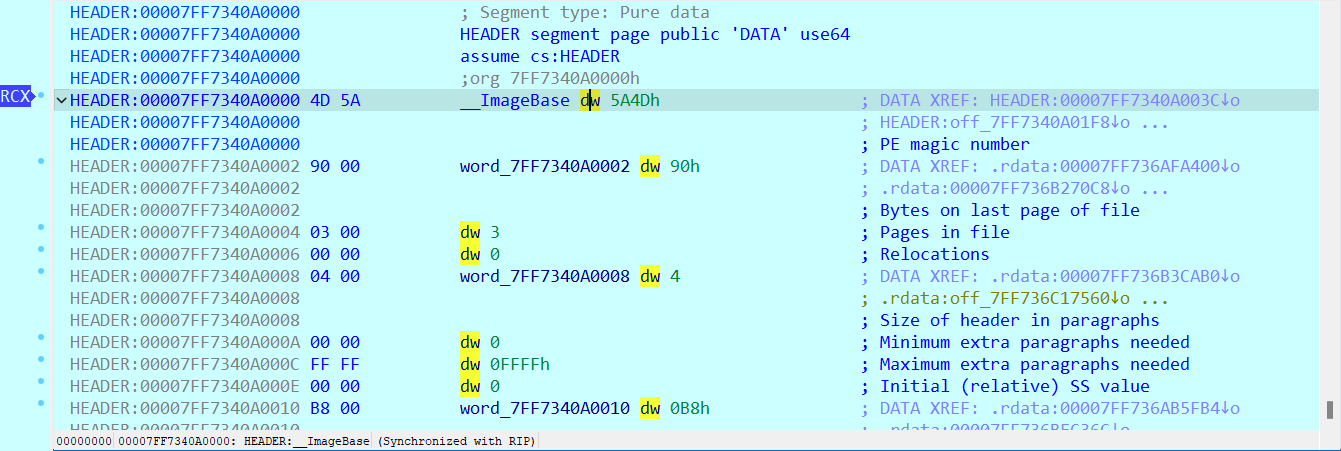

![image-20260318151548633.png](http://xherlock.top/usr/uploads/2026/04/3116059355.png)

接着又计算了start-0x310（qword3.LODWORD），指向一个可疑代码段

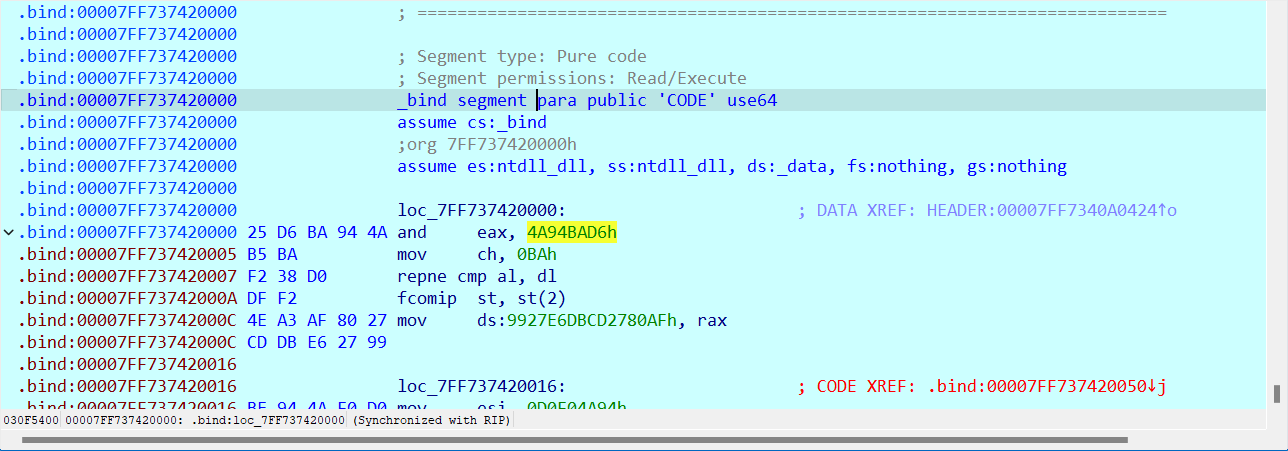

![image-20260318152150716.png](http://xherlock.top/usr/uploads/2026/04/3126256164.png)

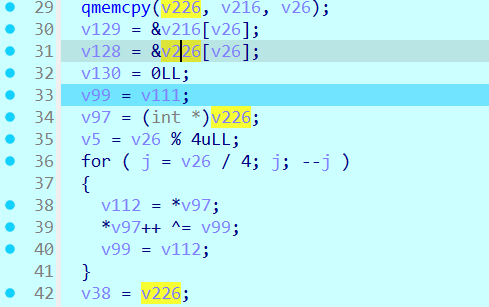

拷贝这个代码段（大小0x220，经过(qword5.HIDWORD+15)&0x0FFFFFFF0计算得到，然后.bind位置+qword5.LODWORD得到代码起始位置）到内存，和上面相同的异或处理

![image-20260318153112085.png](http://xherlock.top/usr/uploads/2026/04/2191203632.png)

解密完发现是API字符串

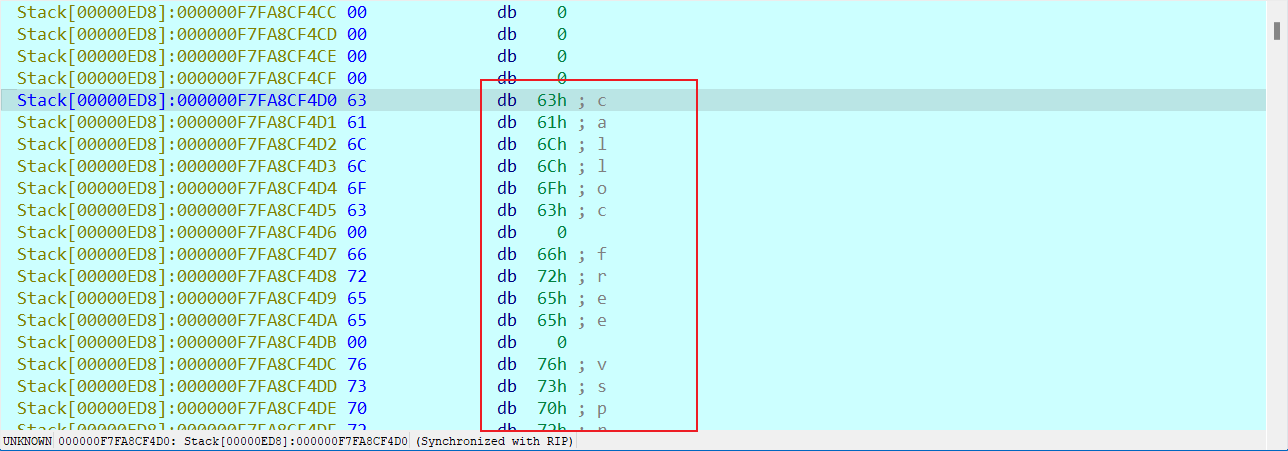

![image-20260318153236425.png](http://xherlock.top/usr/uploads/2026/04/2852296339.png)

字符串如下，可以看到steam一些字眼以及API函数名

~~~
b"calloc\x00free\x00vsprintf\x00TerminateProcess\x00GetLastError\x00OpenEventA\x00OpenFileMappingA\x00MapViewOfFile\x00WaitForSingleObject\x00CreateEventA\x00UnmapViewOfFile\x00CloseHandle\x00GetCurrentProcessId\x00VirtualAlloc\x00VirtualFree\x00VirtualProtect\x00IsBadReadPtr\x00OutputDebugStringA\x00FreeLibrary\x00afterimports\x00kernel32.dll\x00msvcrt.dll\x00user32.dll\x00GetProcAddress\x00GetModuleHandleA\x00LoadLibraryA\x00MessageBoxA\x00Local\\SteamStart_SharedMemFile\x00Local\\SteamStart_SharedMemLock\x00Steam Error\x00Application load error X:XXXXXXXXXX\x00Payload routine failed with %u ('%c')\n\x00Unpack step %u\n\x00steam"
~~~

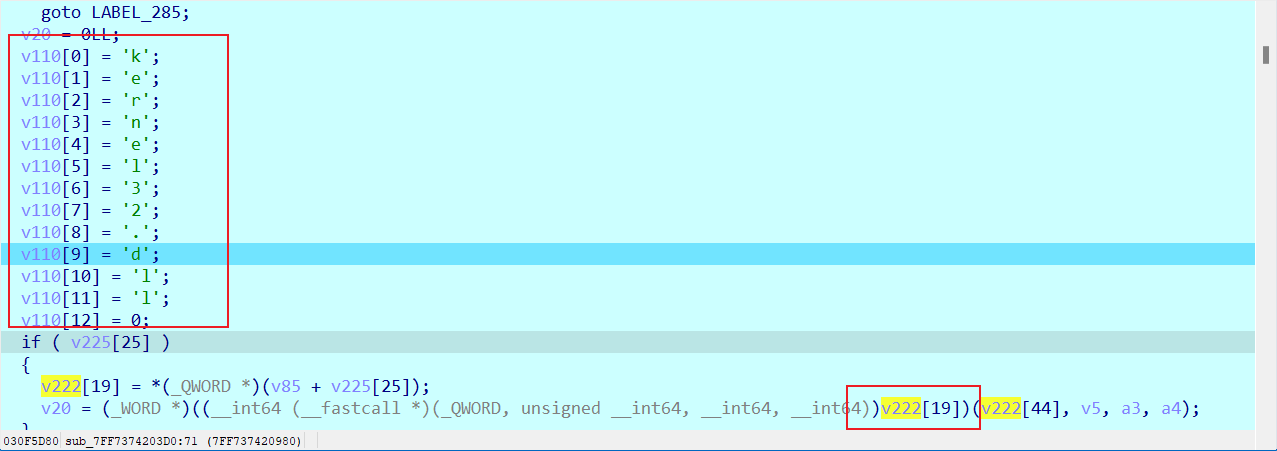

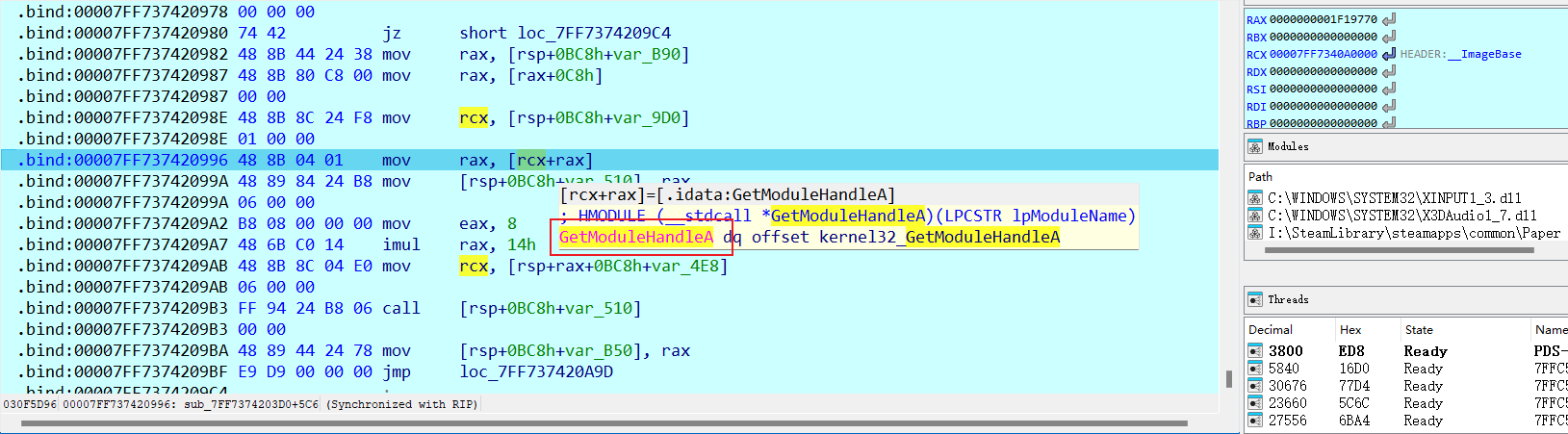

往后看就能看到开始GetModuleHandleA（ImageBase+qword25）调用API

![image-20260318154001308.png](http://xherlock.top/usr/uploads/2026/04/4055444140.png)

![image-20260318154059564.png](http://xherlock.top/usr/uploads/2026/04/3949915472.png)

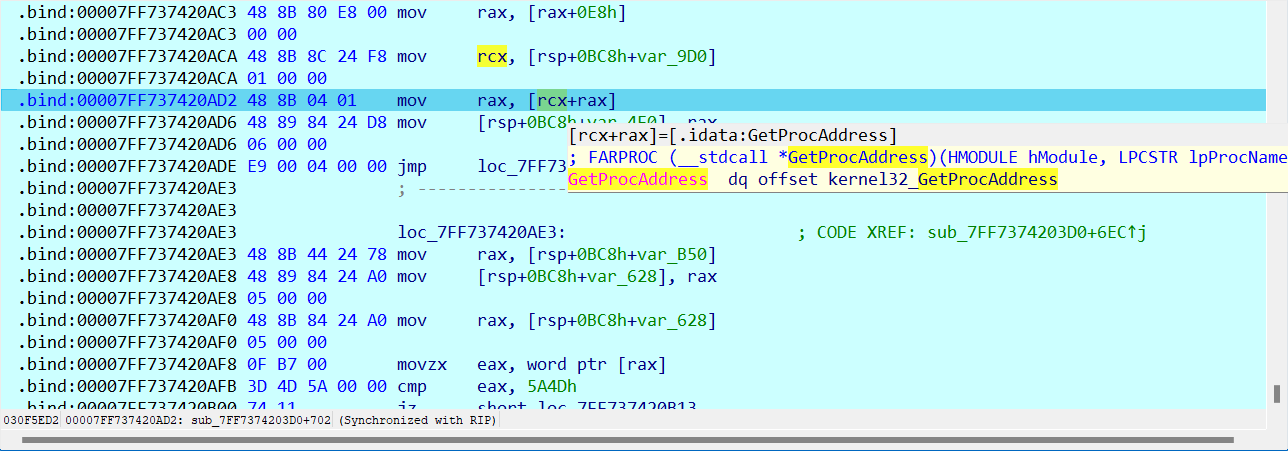

获取了kernel32.dll地址，然后GetProcAddress（ImageBase+qword26）查找"LoadLibraryA"地址

![image-20260318154916918.png](http://xherlock.top/usr/uploads/2026/04/404542325.png)

然后获取了msvcrt.dll的calloc、free、vsprintf，kernel32.dll的TerminateProcess、GetLastError、OpenEventA等

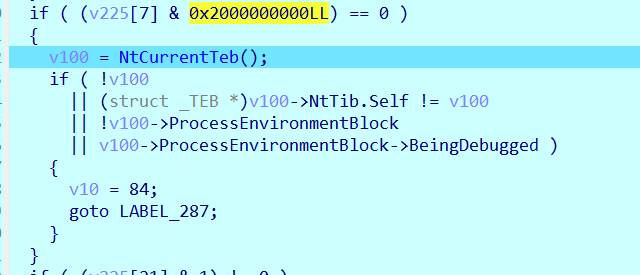

接着是一处反调试（读取了qword7.HIDWORD，类似于CheckDebugFlag），这里需要手动修改BeingDebugged的值为0

![image-20260318160325062.png](http://xherlock.top/usr/uploads/2026/04/1389654096.png)

否则弹窗报错

![image-20260318164255908.png](http://xherlock.top/usr/uploads/2026/04/4259353934.png)

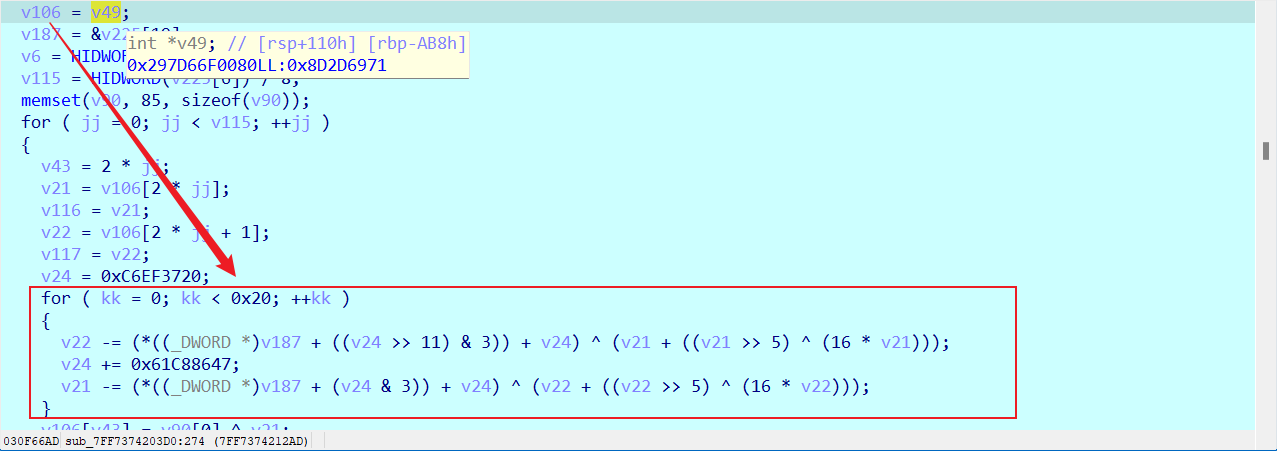

继续向下先calloc分配了0x28720大小（qword6.HIDWORD），对.bind的一块区域（当前函数后面的区域，偏移值为qword6.DOWORD）进行XTEA解密（密钥来自qword19、20）

![image-20260318161121612.png](http://xherlock.top/usr/uploads/2026/04/3250484952.png)

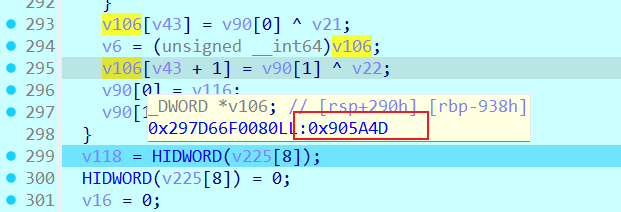

解密完的结果异或v90（0x55填充），调试到解密完已经能看到PE头了，nice！

![image-20260318161400125.png](http://xherlock.top/usr/uploads/2026/04/1594233984.png)

写一个脚本直接dump（后面分析可知是DLL，里面包含了steam启动相关）

~~~python
def dump_bytes(start_ea: int, size: int, out_path: str) -> bool:
    """
    Dump bytes from IDA database to a file.
    - start_ea: start address (EA)
    - size: number of bytes to dump
    - out_path: output file path (e.g., r"C:\temp\dump.bin")
    Returns True on success, False otherwise.
    """
    if size <= 0:
        ida_kernwin.warning("Size must be > 0")
        return False

# get_bytes returns None if it can't read the requested range
    data = ida_bytes.get_bytes(start_ea, size)
    if data is None:
        ida_kernwin.warning(f"Failed to read bytes at 0x{start_ea:X} (size=0x{size:X})")
        return False

try:
        with open(out_path, "wb") as f:
            f.write(data)
        ida_kernwin.msg(f"[+] Dumped 0x{size:X} bytes from 0x{start_ea:X} to: {out_path}\n")
        return True
    except Exception as e:
        ida_kernwin.warning(f"Failed to write file:\n{out_path}\n\nError: {e}")
        return False

start_ea = 0x297D66F0080
size     = 0x28720
out_path = r"xxxx\steamdrmp.dll"

dump_bytes(start_ea, size, out_path)
~~~

对多段数据做了CRC校验

* 前面两段解密出来的数据
* a1（start地址开始的0x34A0字节，正好覆盖整个代码段），这里得把全部断点取消防止crc出现错误值，可以在比较值地方设置硬件断点
* 前面解密出来的DLL

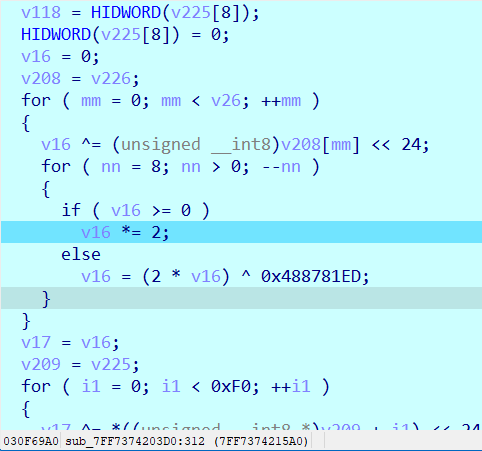

![image-20260318162629601.png](http://xherlock.top/usr/uploads/2026/04/409406076.png)

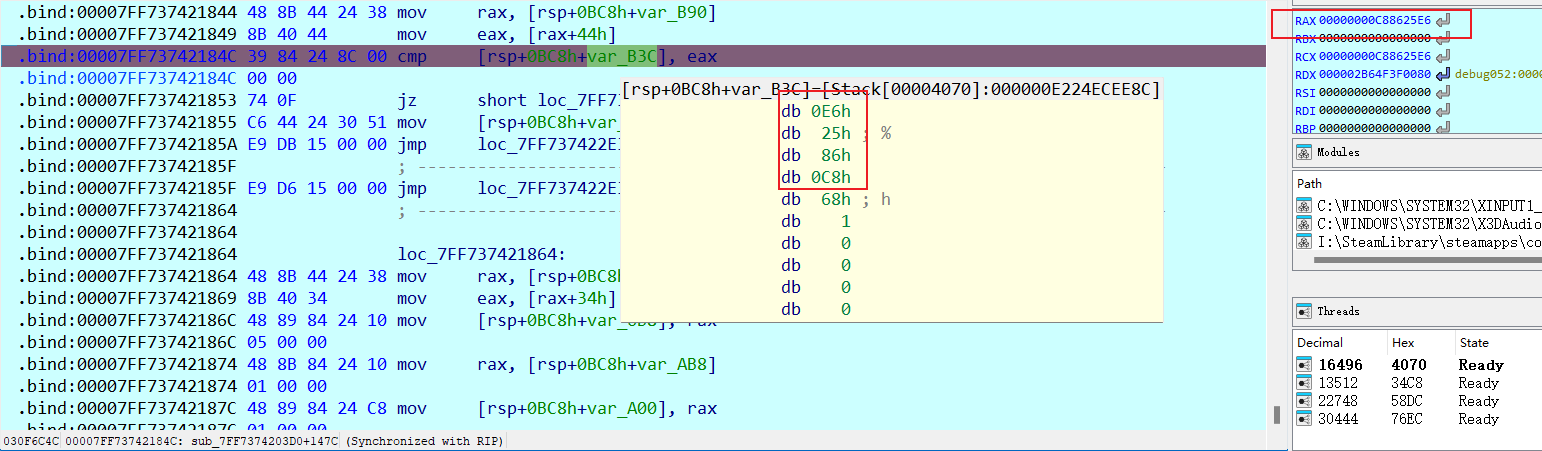

正确设置断点和调试来到比较CRC值处可以发现值相等（CRC值为qword8.HIDWORD）

![image-20260318164543467.png](http://xherlock.top/usr/uploads/2026/04/1522913710.png)

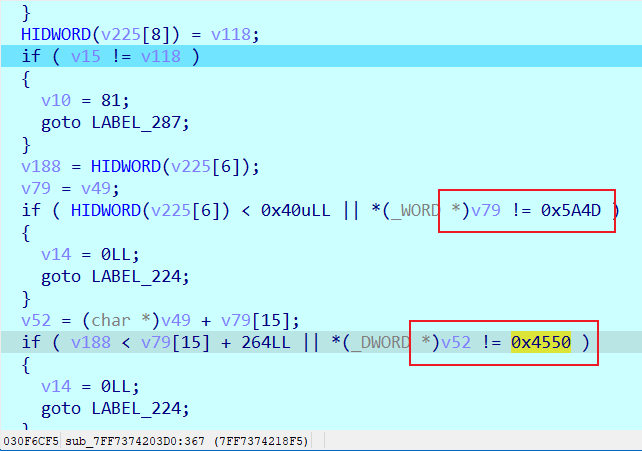

校验PE文件并把DLL写入内存

![image-20260318164613052.png](http://xherlock.top/usr/uploads/2026/04/3999267684.png)

后面可以看到查找了WriteFile、ReadFile、SetFilePointerEx、CloseHandle等API

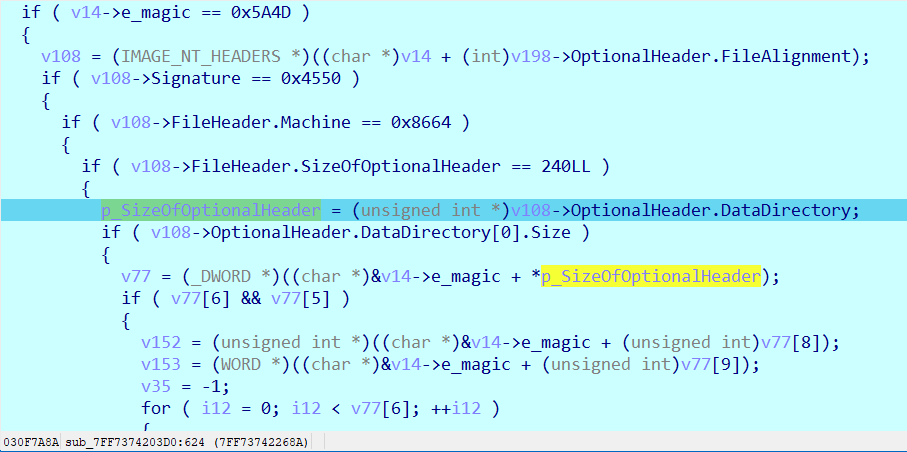

接着开始处理DLL

![image-20260318205445267.png](http://xherlock.top/usr/uploads/2026/04/3361015858.png)

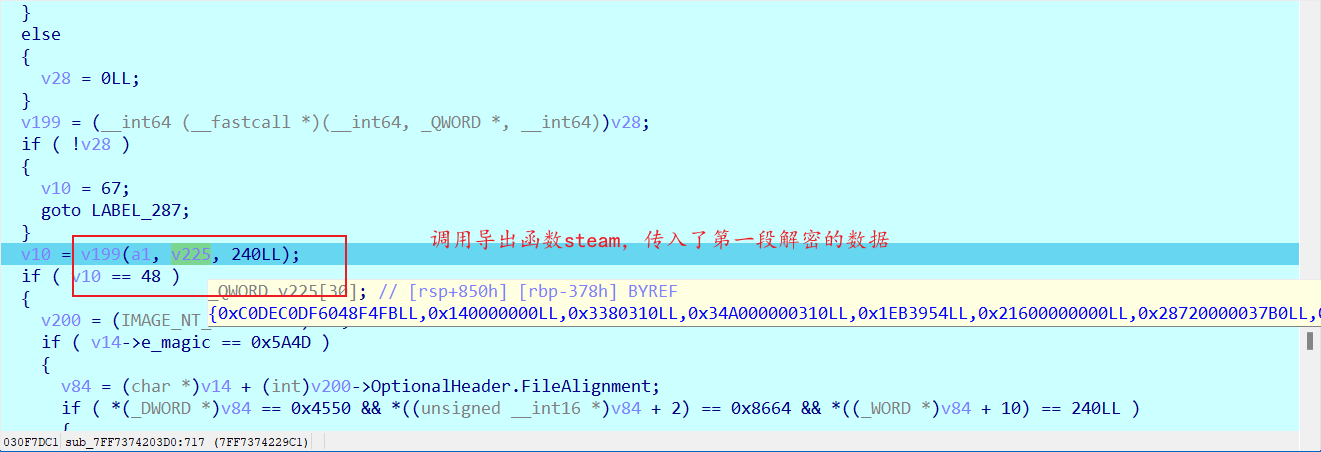

调用了一个导出函数，把前面解密出来的数据（结构体）和数据长度传入

![image-20260318205830670.png](http://xherlock.top/usr/uploads/2026/04/1201793272.png)

要求返回值是48

## steamdrmp.dll

emmm drm=Digital Rights Management，看来用来保护的

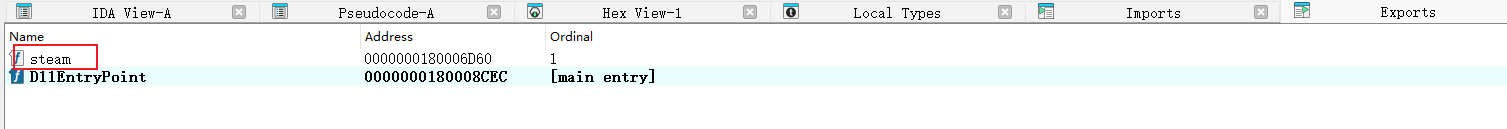

DLL直接看导出函数，发现steam函数

![image-20260318165004557.png](http://xherlock.top/usr/uploads/2026/04/2940019926.png)

~~~c++
char __fastcall steam(__int64 a1, __int64 a2, unsigned __int64 a3)
{
  HMODULE ModuleHandleA; // rax
  FARPROC ProcAddress; // rbx
  HANDLE CurrentThread; // rax
  DWORD TickCount; // r15d
  char v10; // al
  char v11; // r14
  int v12; // edi
  LPWSTR CommandLineW; // rax
  CHAR *v14; // rbx
  WCHAR v15; // cx
  WCHAR v16; // cx
  WCHAR v17; // dx
  int v18; // eax
  CHAR v19; // cl
  __int64 v20; // rax
  unsigned __int8 v21; // cl
  _BYTE *v22; // r10
  unsigned __int8 *v23; // r9
  unsigned __int64 v24; // rdx
  __int64 v25; // r11
  char v26; // cl
  char v27; // al
  __int64 v28; // rax
  __int64 v29; // r8
  int v30; // eax
  unsigned int v31; // r14d
  _OWORD *v32; // rax
  _OWORD *v33; // rbx
  __int64 v34; // rsi
  const void *v35; // r12
  HANDLE CurrentProcess; // rax
  CHAR ModuleName[16]; // [rsp+40h] [rbp-C0h] BYREF
  CHAR ProcName[16]; // [rsp+50h] [rbp-B0h] BYREF
  char v39[8]; // [rsp+60h] [rbp-A0h] BYREF
  struct _MEMORY_BASIC_INFORMATION Buffer; // [rsp+68h] [rbp-98h] BYREF
  WCHAR File[512]; // [rsp+A0h] [rbp-60h] BYREF
  WCHAR WideCharStr[2048]; // [rsp+4A0h] [rbp+3A0h] BYREF
  DWORD flOldProtect; // [rsp+14E0h] [rbp+13E0h] BYREF
  DWORD v44; // [rsp+14E8h] [rbp+13E8h] BYREF

if ( a3 < 0xF0 || *(_DWORD *)(a2 + 4) != 0xC0DEC0DF )
    return 81;
  if ( (*(_BYTE *)(a2 + 60) & 0x20) == 0 )
  {
    if ( IsDebuggerPresent() )
      return 84;
    *(__m128i *)ProcName = _mm_load_si128((const __m128i *)&xmmword_180018880);	// NtSetInformation
    strcpy(ModuleName, "ntdll.dll");
    strcpy(v39, "Thread");
    ModuleHandleA = GetModuleHandleA(ModuleName);
    ProcAddress = GetProcAddress(ModuleHandleA, ProcName);
    CurrentThread = GetCurrentThread();
    ((void (__fastcall *)(HANDLE, __int64, _QWORD))ProcAddress)(CurrentThread, 17LL, 0LL);
  }
  TickCount = GetTickCount();
  if ( (*(_BYTE *)(a2 + 60) & 2) == 0 && !(unsigned __int8)sub_1800064E0((void *)(a1 - *(_QWORD *)(a2 + 16))) )
    return 51;
  v10 = sub_180006680(a2);
  v11 = v10;
  if ( v10 != 48 )
  {
    if ( v10 != 53 )
      return v11;
    v12 = *(_DWORD *)(a2 + 56);
    CommandLineW = GetCommandLineW();
    v14 = &MultiByteStr;
    if ( CommandLineW )
    {
      v15 = *CommandLineW;
      if ( *CommandLineW != 34 )
        goto LABEL_18;
      v16 = CommandLineW[1];
      ++CommandLineW;
      if ( v16 )
      {
        v17 = v16;
        do
        {
          v15 = v17;
          if ( v17 == 34 )
            break;
          v15 = CommandLineW[1];
          ++CommandLineW;
          v17 = v15;
        }
        while ( v15 );
LABEL_18:
        if ( v15 )
        {
          while ( v15 != 32 )
          {
            v15 = CommandLineW[1];
            ++CommandLineW;
            if ( !v15 )
              goto LABEL_25;
          }
          v18 = WideCharToMultiByte(0xFDE9u, 0, CommandLineW + 1, -1, &MultiByteStr, 2048, 0LL, 0LL);
          v19 = MultiByteStr;
          if ( !v18 )
            v19 = 0;
          MultiByteStr = v19;
        }
      }
    }
LABEL_25:
    swprintf(&::Buffer, 0x800uLL, "steam://run/%u//", v12);
    v20 = -1LL;
    byte_180027F4F = 0;
    do
      ++v20;
    while ( *((_BYTE *)&::Buffer + v20) );
    v21 = MultiByteStr;
    v22 = (char *)&::Buffer + v20;
    v23 = (unsigned __int8 *)&::Buffer + v20;
    v24 = 2048 - v20;
    if ( MultiByteStr )
    {
      v25 = 0x43FFFFFF01FFBLL;
      do
      {
        if ( (unsigned __int8)(v21 - 97) <= 0x19u
          || (unsigned __int8)(v21 - 45) <= 0x32u && _bittest64(&v25, (char)(v21 - 45)) )
        {
          if ( v24 )
          {
            v28 = 1LL;
            v29 = -1LL;
            goto LABEL_38;
          }
          v26 = 0;
        }
        else
        {
          if ( v24 >= 3 )
          {
            v23[1] = a0123456789abcd[(unsigned __int64)v21 >> 4];
            v27 = a0123456789abcd[v21 & 0xF];
            v21 = 37;
            v23[2] = v27;
            v28 = 3LL;
            v29 = -3LL;
LABEL_38:
            *v23 = v21;
            v24 += v29;
            v23 += v28;
            v26 = 1;
            goto LABEL_39;
          }
          v26 = 0;
        }
LABEL_39:
        ++v14;
        if ( !v26 )
          goto LABEL_43;
        v21 = *v14;
      }
      while ( *v14 );
    }
    if ( v24 )
      *v23 = 0;
    else
LABEL_43:
      *v22 = 0;
    if ( (unsigned __int8)sub_180004D60((BYTE *)File, 0x200u)sub_180004D60(File)
      && MultiByteToWideChar(0xFDE9u, 0, (LPCCH)&::Buffer, -1, WideCharStr, 2048) > 0 )
    {
      ShellExecuteW(0LL, 0LL, File, WideCharStr, 0LL, 1);
      return v11;
    }
    ShellExecuteA(0LL, "open", (LPCSTR)&::Buffer, 0LL, 0LL, 1);
    return v11;
  }
  v30 = *(_DWORD *)(a2 + 60);
  if ( (v30 & 4) == 0 )
  {
    v31 = *(_DWORD *)(a2 + 80) + 32;
    v32 = j__malloc_base(v31);
    v33 = v32;
    if ( !v32 )
      return 87;
    v34 = a1 - *(_QWORD *)(a2 + 16);
    v35 = (const void *)(v34 + *(_QWORD *)(a2 + 72));
    *v32 = *(_OWORD *)(a2 + 120);
    v32[1] = *(_OWORD *)(a2 + 136);
    if ( !VirtualQuery(v35, &Buffer, 0x30uLL) )
      return 68;
    v44 = 4;
    flOldProtect = 0;
    if ( !VirtualProtect(Buffer.BaseAddress, Buffer.RegionSize, 4u, &flOldProtect) )
      return 68;
    sub_180005240(v34, *(_QWORD *)(a2 + 8) - v34, a2);
    memmove(v33 + 2, v35, *(unsigned int *)(a2 + 80));
    if ( (unsigned int)sub_180004200((_DWORD)v33, v31, (int)a2 + 88, 32, 16, (__int64)v35, *(_DWORD *)(a2 + 80)) != *(_DWORD *)(a2 + 80) )
      return 68;
    j__free_base(v33);
    sub_180005240(v34, v34 - *(_QWORD *)(a2 + 8), a2);
    if ( !VirtualProtect(Buffer.BaseAddress, Buffer.RegionSize, flOldProtect, &v44) )
      return 68;
    CurrentProcess = GetCurrentProcess();
    if ( !FlushInstructionCache(CurrentProcess, Buffer.BaseAddress, Buffer.RegionSize) )
      return 68;
    v30 = *(_DWORD *)(a2 + 60);
  }
  if ( (v30 & 0x20) != 0 || GetTickCount() - TickCount <= 0x2710 )
    return 48;
  else
    return 83;
}
~~~

很直白的函数，dll的话可以直接exe启动dll内存调试（Application填exe，目录填exe目录，input file为空）

首先检查了传入参数，要求a3不小于240，a2[4]数据要等于0xC0DEC0DF，正好对应前面exe里的分析

### 反调试分析

接着进入if里会有3处反调试，分别是

1. IsDebuggerPresent
2. NtSetInformationThread（第二个参数17对应ThreadHideFromDebugger），只要调用就会挂掉调试器
3. GetTickCount()，在最后检查了时间是否超过10000ms

### 防篡改分析

进入sub_1800064E0，里面调用ReadFile读取了自身exe

~~~c++
char __fastcall sub_1800064E0(int *Buf1, const CHAR *a2)
{
  void *v2; // rbx
  DWORD ModuleFileNameW; // eax
  char *FileW; // rax
  void *v6; // rsi
  DWORD FileSize; // eax
  unsigned __int64 v8; // r15
  char *v9; // rax
  char *v10; // rdi
  void *v11; // rcx
  __int64 v12; // rcx
  WCHAR Filename[1044]; // [rsp+40h] [rbp-828h] BYREF
  DWORD NumberOfBytesRead; // [rsp+880h] [rbp+18h] BYREF
  HMODULE hModule; // [rsp+888h] [rbp+20h] BYREF

v2 = 0LL;
  hModule = 0LL;
  if ( !GetModuleHandleExA(6u, a2, &hModule) )
    goto LABEL_19;
  if ( !hModule )
    goto LABEL_19;
  ModuleFileNameW = GetModuleFileNameW(hModule, Filename, 0x400u);
  if ( ModuleFileNameW - 1 > 0x3FE )
    goto LABEL_19;
  Filename[ModuleFileNameW] = 0;
  FileW = (char *)CreateFileW(Filename, 0x80000000, 1u, 0LL, 3u, 0x80u, 0LL);
  v6 = FileW;
  if ( (unsigned __int64)(FileW - 1) > 0xFFFFFFFFFFFFFFFDuLL )
    goto LABEL_19;
  FileSize = GetFileSize(FileW, 0LL);
  v8 = FileSize;
  if ( FileSize > 0x3FFFFFFF )
    goto LABEL_17;
  v9 = (char *)j__malloc_base(FileSize);
  v10 = v9;
  v11 = v6;
  if ( !v9 )
  {
LABEL_18:
    CloseHandle(v11);
    goto LABEL_19;
  }
  if ( !ReadFile(v6, v9, v8, &NumberOfBytesRead, 0LL) || NumberOfBytesRead != (_DWORD)v8 )
  {
    j__free_base(v10);
LABEL_17:
    v11 = v6;
    goto LABEL_18;
  }
  v2 = v10;
  if ( !(unsigned int)sub_1800084C0(v10, (unsigned int)v8) )
  {
    if ( !Buf1
      || v8 >= 0x40
      && !memcmp(Buf1, Buf1, 0x40uLL)
      && (v12 = Buf1[15], v8 >= v12 + 304)
      && (*(_QWORD *)&v10[v12 + 48] = *(_QWORD *)((char *)Buf1 + v12 + 48), !memcmp(Buf1, v10, v12 + 304)) )
    {
      j__free_base(v10);
      return 1;
    }
  }
LABEL_19:
  j__free_base(v2);
  return 0;
}
~~~

然后调用sub_1800084C0

~~~c++
__int64 __fastcall sub_1800084C0(__int64 a1, __int64 a2)
{
  return sub_180008090(a1, a2, &off_180026008, 2LL);
}
__int64 __fastcall sub_180008090(__int64 a1, unsigned __int64 a2, __int64 a3, unsigned int a4)
{
  unsigned int v4; // r14d
  unsigned __int64 v6; // r10
  unsigned int v8; // r15d
  __int64 v9; // rax
  __int16 v10; // cx
  __int64 v11; // r13
  __int64 v12; // rdi
  int v13; // ecx
  __int64 v14; // rbx
  int v15; // eax
  char v16; // al
  unsigned int v17; // esi
  _BYTE *v18; // rdi
  _BYTE *v19; // r14
  unsigned __int64 v20; // rax
  unsigned int v21; // r11d
  unsigned __int8 v22; // r10
  unsigned __int8 v23; // r9
  char v24; // r8
  char v25; // r8
  char v26; // dl
  __int64 v27; // [rsp+30h] [rbp-3A8h]
  __int128 v28; // [rsp+40h] [rbp-398h]
  __int128 v29; // [rsp+50h] [rbp-388h]
  __int128 v30; // [rsp+60h] [rbp-378h]
  __int128 v31; // [rsp+70h] [rbp-368h]
  __int128 v32; // [rsp+80h] [rbp-358h]
  __int128 v33; // [rsp+90h] [rbp-348h]
  __int128 v34; // [rsp+A0h] [rbp-338h]
  __int128 v35; // [rsp+B0h] [rbp-328h]
  _OWORD v36[8]; // [rsp+C0h] [rbp-318h] BYREF
  _BYTE v37[608]; // [rsp+140h] [rbp-298h] BYREF
  int v38; // [rsp+3E8h] [rbp+10h]

v4 = a4;
  if ( a2 < 0x200 )
    return 6LL;
  if ( *(_WORD *)a1 != 0x5A4D )
    return 6LL;
  v6 = *(int *)(a1 + 60);
  if ( v6 < 0x40 || v6 >= a2 - 248 || *(_DWORD *)(v6 + a1) != 17744 )
    return 6LL;
  if ( *(_DWORD *)(a1 + 64) != 'VLV' )
    return 2LL;
  if ( *(_DWORD *)(a1 + 68) != 1 )
    return 4LL;
  if ( a2 < *(unsigned int *)(a1 + 72) )
    return 3LL;
  v8 = 0;
  v9 = v6 + a1;
  v10 = *(_WORD *)(v6 + a1 + 24);
  v27 = 0LL;
  v11 = 0LL;
  v12 = 0LL;
  if ( v10 != 0x10B )
  {
    if ( v10 == 0x20B )
    {
      v12 = v9 + 24;
      v27 = v9 + 24;
      goto LABEL_15;
    }
    return 3LL;
  }
  v11 = v9 + 24;
LABEL_15:
  v28 = *(_OWORD *)(a1 + 80);
  v36[0] = v28;
  v29 = *(_OWORD *)(a1 + 96);
  v36[1] = v29;
  v30 = *(_OWORD *)(a1 + 112);
  v36[2] = v30;
  v31 = *(_OWORD *)(a1 + 128);
  v36[3] = v31;
  v32 = *(_OWORD *)(a1 + 144);
  v36[4] = v32;
  v33 = *(_OWORD *)(a1 + 160);
  v36[5] = v33;
  v34 = *(_OWORD *)(a1 + 176);
  v36[6] = v34;
  v35 = *(_OWORD *)(a1 + 192);
  v36[7] = v35;
  memset((void *)(a1 + 80), 0, 0x80uLL);
  if ( v11 )
  {
    v13 = *(_DWORD *)(v11 + 64);
    *(_DWORD *)(v11 + 64) = 0;
    v14 = *(_QWORD *)(v11 + 128);
    *(_QWORD *)(v11 + 128) = 0LL;
    v38 = v13;
  }
  else
  {
    v15 = *(_DWORD *)(v12 + 64);
    *(_DWORD *)(v12 + 64) = 0;
    v14 = *(_QWORD *)(v12 + 144);
    v38 = v15;
    *(_QWORD *)(v12 + 144) = 0LL;
  }
  v16 = 0;
  v17 = 0;
  while ( v17 < v4 )
  {
    v18 = *(_BYTE **)(a3 + 8LL * v17);
    if ( !v18 || !*v18 )
    {
      v16 = 0;
      goto LABEL_36;
    }
    v19 = v37;
    v20 = -1LL;
    do
      ++v20;
    while ( v18[v20] );
    if ( v20 > 0xFFFFFFFF || (v20 & 1) != 0 )
      goto LABEL_34;
    v21 = 0;
    if ( (_DWORD)v20 )
    {
      while ( 1 )
      {
        v22 = (v18[v21 + 1] - 16) & 0x1F;
        v23 = (v18[v21] - 16) & 0x1F;
        if ( (v21 & 0xFFFFFFFE) >= 0x4B0 )
          break;
        v24 = v23 - 7;
        if ( v23 <= 9u )
          v24 = (v18[v21] - 16) & 0x1F;
        v25 = 16 * v24;
        v26 = v22 - 7;
        if ( v22 <= 9u )
          v26 = (v18[v21 + 1] - 16) & 0x1F;
        v21 += 2;
        *v19++ = v26 + v25;
        if ( v21 >= (unsigned int)v20 )
          goto LABEL_33;
      }
LABEL_34:
      v4 = a4;
      v16 = 0;
      ++v17;
    }
    else
    {
LABEL_33:
      v16 = sub_180005900((_BYTE *)(_DWORD)a1, *(_DWORD *)(a1 + 72), (int)v36, 128, (__int64)v37, v21 >> 1);
      v4 = a4;
LABEL_36:
      ++v17;
      if ( v16 )
        break;
    }
  }
  *(_OWORD *)(a1 + 80) = v28;
  *(_OWORD *)(a1 + 96) = v29;
  *(_OWORD *)(a1 + 112) = v30;
  *(_OWORD *)(a1 + 128) = v31;
  *(_OWORD *)(a1 + 144) = v32;
  *(_OWORD *)(a1 + 160) = v33;
  *(_OWORD *)(a1 + 176) = v34;
  *(_OWORD *)(a1 + 192) = v35;
  if ( v11 )
  {
    *(_DWORD *)(v11 + 64) = v38;
    *(_QWORD *)(v11 + 128) = v14;
  }
  else
  {
    *(_DWORD *)(v27 + 64) = v38;
    *(_QWORD *)(v27 + 144) = v14;
  }
  LOBYTE(v8) = v16 == 0;
  return v8;
}
~~~

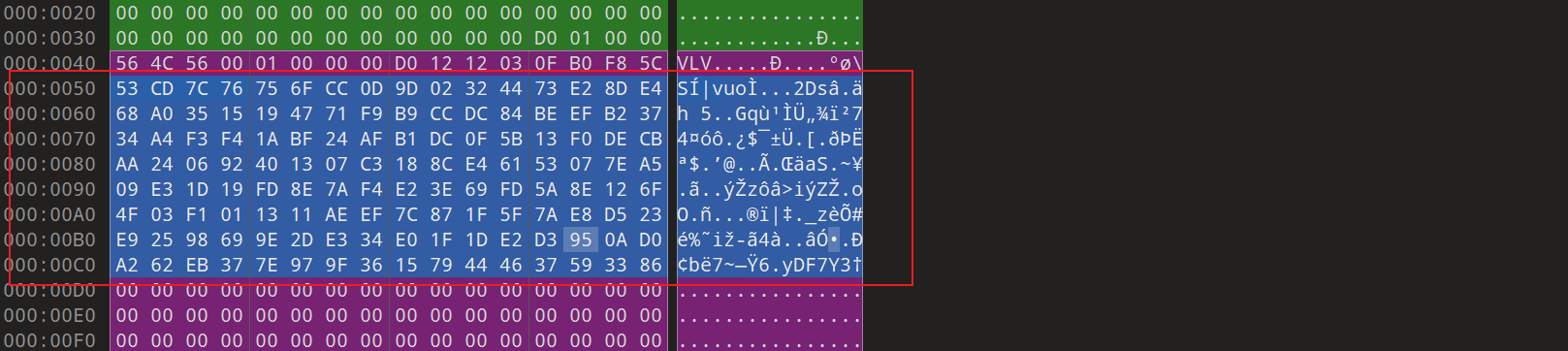

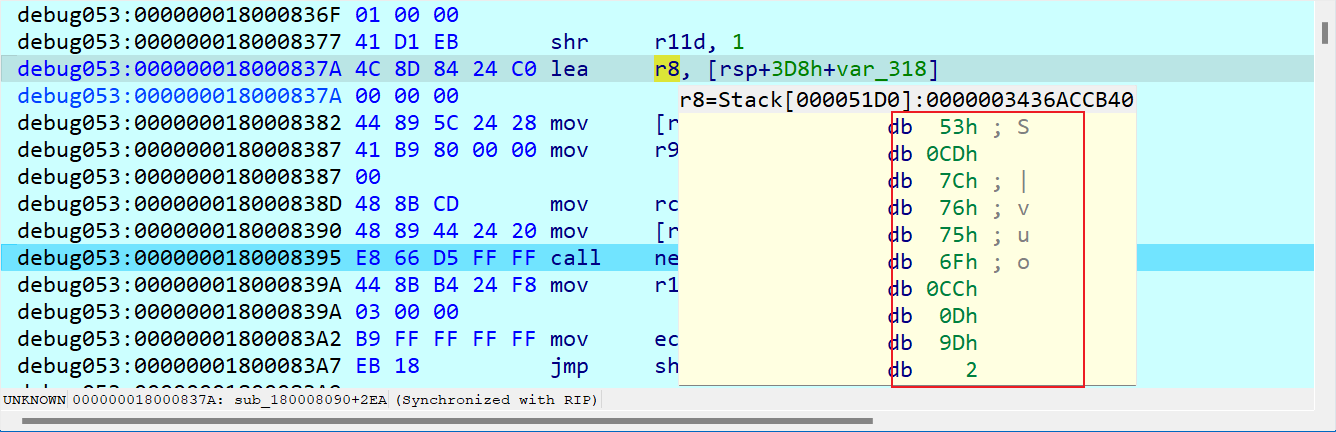

可以看到里面读取了PE文件，并提取了数据，下断点在`while ( v18[v20] );`处可以看到他读取了dll里的一个Hex字符串，然后转为字节作为参数传入sub_180005900，同时还传入了上一层exe的0x80字节

![image-20260319222830963.png](http://xherlock.top/usr/uploads/2026/04/3444018252.png)

![image-20260319222850597.png](http://xherlock.top/usr/uploads/2026/04/3077014764.png)

sub_180005900函数如下，可以看到常量

~~~c++
char __fastcall sub_180005900(_BYTE *a1, unsigned int a2, int a3, int a4, __int64 a5, int a6)
{
  __int64 v7; // rdi
  __int64 v8; // rdx
  __int64 v9; // rbx
  unsigned __int8 v10; // al
  int v11; // ecx
  _BYTE v13[32]; // [rsp+30h] [rbp-59h]
  _BYTE v14[64]; // [rsp+50h] [rbp-39h] BYREF
  _DWORD v15[5]; // [rsp+90h] [rbp+7h]
  int v16; // [rsp+A4h] [rbp+1Bh]
  __int16 v17; // [rsp+A8h] [rbp+1Fh]
  _DWORD v18[8]; // [rsp+B0h] [rbp+27h] BYREF

v7 = a2;
  if ( (unsigned __int8)sub_1800053A0(a3, a4, a5, a6, (__int64)v18) )
  {
    v9 = 0LL;
    v15[0] = 0x67452301;
    v10 = 0;
    v15[1] = 0xEFCDAB89;
    v15[2] = 0x98BADCFE;
    v11 = 0;
    v15[3] = 0x10325476;
    LOBYTE(v8) = 3;
    v15[4] = 0xC3D2E1F0;
    v16 = 0;
    v17 = 768;
    if ( v7 )
    {
      while ( 1 )
      {
        v16 = v11 + 1;
        --v7;
        v14[v10 ^ (unsigned __int64)(unsigned __int8)v8] = *a1;
        v10 = v17 + 1;
        LOBYTE(v17) = v10;
        if ( v10 == 64 )
        {
          sub_180006A00(v14);
          v10 = 0;
          LOBYTE(v17) = 0;
        }
        ++a1;
        if ( !v7 )
          break;
        v8 = HIBYTE(v17);
        v11 = v16;
      }
    }
    sub_180006B40(v14, v8);
    v13[0] = *((_BYTE *)v15 + HIBYTE(v17));
    v13[1] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 1LL));
    v13[2] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 2LL));
    v13[3] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 3LL));
    v13[4] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 4LL));
    v13[5] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 5LL));
    v13[6] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 6LL));
    v13[7] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 7LL));
    v13[8] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 8LL));
    v13[9] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 9LL));
    v13[10] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 0xALL));
    v13[11] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 0xBLL));
    v13[12] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 0xCLL));
    v13[13] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 0xDLL));
    v13[14] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 0xELL));
    v13[15] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 0xFLL));
    v13[16] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 0x10LL));
    v13[17] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 0x11LL));
    v13[18] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 0x12LL));
    v13[19] = *((_BYTE *)v15 + (HIBYTE(v17) ^ 0x13LL));
    while ( v18[v9] == *(_DWORD *)&v13[v9 * 4] )
    {
      if ( (unsigned __int64)++v9 >= 5 )
        return 1;
    }
  }
  return 0;
}
~~~

存在sha1加密特征，这部分涉及到了一些加密签名运算等，可以交给AI分析，分析结果如下

> 核心流程：
>
> 1. 调 sub_1800053A0(sig, sig_len, pub_der, pub_der_len, out_hash20)，从签名里解出并校验 PKCS#1 v1.5 结构，提取出 20 字节哈希。
> 2. 对 data[0..data_len) 自己做一遍 SHA-1（内部初始化常量是 67452301/EFCDAB89/98BADCFE/10325476/C3D2E1F0，压缩函数是 sub_180006A00，收尾是 sub_180006B40）。
> 3. 将计算得到的 20 字节摘要与 out_hash20 比较，5 个 dword 全相等才返回 1。
>
> sub_1800053A0 的证据点（你这份样本里）：
>
> - 检查公钥 DER 前缀：30 0D 06 09 2A 86 48 86 F7 0D 01 01 05 00（RSA OID）。
> - 验证签名解密后块里 DigestInfo 前缀：00 30 21 30 09 06 05 2B 0E 03 02 1A 05 00 04 14，即 SHA1 的 ASN.1 标识。
> - 对应就是典型 RSA PKCS#1 v1.5 + SHA1 验签路径。

函数可以抽象为

~~~c++
bool verify_sha1_sig(
    uint8_t *data, uint32_t data_len,      // a1,a2
    uint8_t *sig,  uint32_t sig_len,       // a3,a4
    uint8_t *pub_der, uint32_t pub_der_len // a5,a6
);
~~~

验证通过后返回1

所以综上sub_1800064E0在检查**模块文件本身合法且签名通过，并且内存中的模块头没有被改**

### 启动Steam

sub_180006680疑似调用了多个API，出现了多个函数字符串

~~~c++
char __fastcall sub_180006680(__int64 a1)
{
  __int64 v2; // rdi
  const CHAR *CreateInterface; // rax
  unsigned int v5; // esi
  unsigned int v6; // r12d
  char v7; // bl
  __int64 v8; // rax
  __int64 v9; // rbx
  int v10; // eax
  __int64 v11; // r14
  int v12; // eax
  __int64 v13; // r13
  __int64 (__fastcall ***v14)(_QWORD, _QWORD, _QWORD *, __int64, unsigned int *, unsigned int *, unsigned int *, int *); // rax
  unsigned int v15; // ebx
  int v16; // [rsp+40h] [rbp-C0h] BYREF
  unsigned int v17; // [rsp+44h] [rbp-BCh] BYREF
  HMODULE hModule; // [rsp+48h] [rbp-B8h] BYREF
  __int64 v19; // [rsp+50h] [rbp-B0h] BYREF
  _QWORD v20[128]; // [rsp+60h] [rbp-A0h] BYREF
  _BYTE v21[1024]; // [rsp+460h] [rbp+360h] BYREF
  unsigned int v22; // [rsp+8A8h] [rbp+7A8h] BYREF
  unsigned int v23; // [rsp+8B0h] [rbp+7B0h] BYREF
  int v24; // [rsp+8B8h] [rbp+7B8h] BYREF

hModule = 0LL;
  v2 = sub_180007AF0(&hModule, 0, 0LL, (__int64)"SteamClient014");
  if ( !v2 || !hModule )
    return 53;
  CreateInterface = (const CHAR *)GetProcAddress(hModule, "CreateInterface");
  if ( !CreateInterface )
  {
    sub_180007F70();
    return 66;
  }
  if ( !sub_1800064E0((int *)hModule, CreateInterface) )
  {
    sub_180007F70();
    return 51;
  }
  v5 = (**(__int64 (__fastcall ***)(__int64))v2)(v2);
  if ( !v5 )
  {
    sub_180007F70();
    return 53;
  }
  v6 = (*(__int64 (__fastcall **)(__int64, _QWORD))(*(_QWORD *)v2 + 16LL))(v2, v5);
  if ( !v6 )
  {
    v7 = 53;
LABEL_45:
    (*(void (__fastcall **)(__int64, _QWORD))(*(_QWORD *)v2 + 8LL))(v2, v5);
    sub_180007F70();
    return v7;
  }
  v8 = (*(__int64 (__fastcall **)(__int64, _QWORD, const char *))(*(_QWORD *)v2 + 72LL))(v2, v5, "SteamUtils007");
  v9 = v8;
  if ( !v8 )
    goto LABEL_12;
  v10 = (*(__int64 (__fastcall **)(__int64))(*(_QWORD *)v8 + 16LL))(v8);
  v11 = v10;
  if ( v10 != 4 || (*(_BYTE *)(a1 + 60) & 0x10) != 0 )
  {
    v12 = (*(__int64 (__fastcall **)(__int64))(*(_QWORD *)v9 + 72LL))(v9);
    if ( v12 )
    {
      if ( v12 == *(_DWORD *)(a1 + 56) )
      {
        v13 = (*(__int64 (__fastcall **)(__int64, _QWORD, _QWORD, const char *))(*(_QWORD *)v2 + 40LL))(
                v2,
                v6,
                v5,
                "SteamUser017");
        v14 = (__int64 (__fastcall ***)(_QWORD, _QWORD, _QWORD *, __int64, unsigned int *, unsigned int *, unsigned int *, int *))(*(__int64 (__fastcall **)(__int64, _QWORD, _QWORD, const char *))(*(_QWORD *)v2 + 96LL))(v2, v6, v5, "STEAMAPPTICKET_INTERFACE_VERSION001");
        if ( v13 )
        {
          if ( v14 )
          {
            v15 = (**v14)(v14, *(unsigned int *)(a1 + 56), v20, 1024LL, &v17, &v22, &v23, &v24);
            if ( v15 )
            {
              if ( v17
                && v22
                && v23
                && v24
                && v17 != v22
                && v17 != v23
                && v22 != v23
                && v23 <= v15
                && v17 <= v15 - v24
                && v22 <= v15 - v24 )
              {
                if ( *(_DWORD *)((char *)v20 + v17) != *(_DWORD *)(a1 + 56) )
                {
                  v7 = 86;
                  goto LABEL_44;
                }
                (*(void (__fastcall **)(__int64, __int64 *))(*(_QWORD *)v13 + 16LL))(v13, &v19);
                if ( *(_QWORD *)((char *)v20 + v22) == v19 && SHIDWORD(v19) >> 24 == (_DWORD)v11 )
                {
                  v16 = 1024;
                  if ( (((_DWORD)v11 - 1) & 0xFFFFFFFC) != 0 || (_DWORD)v11 == 3 )
                  {
                    v7 = 80;
                    goto LABEL_44;
                  }
                  if ( (unsigned __int8)sub_180004E90(*(&off_180026030 + v11), v21, &v16)
                    && (unsigned __int8)sub_180005900(
                                          (unsigned int)v20,
                                          v15 - v24,
                                          (unsigned int)v20 + v23,
                                          v24,
                                          (__int64)v21,
                                          v16) )
                  {
                    v7 = 48;
                    goto LABEL_44;
                  }
                }
              }
            }
          }
        }
        v7 = 54;
        goto LABEL_44;
      }
      v7 = 86;
LABEL_44:
      (*(void (__fastcall **)(__int64, _QWORD, _QWORD))(*(_QWORD *)v2 + 32LL))(v2, v5, v6);
      goto LABEL_45;
    }
LABEL_12:
    v7 = 53;
    goto LABEL_44;
  }
  return 57;
}
~~~

先看sub_180007AF0

~~~c++
__int64 __fastcall sub_180007AF0(HMODULE *a1, char a2, __int64 a3, __int64 a4)
{
  char v5; // [rsp+38h] [rbp+10h] BYREF

v5 = a2;
  return sub_1800076A0(a1, &v5, a3, a4);
}
__int64 __fastcall sub_1800076A0(HMODULE *a1, _BYTE *a2, __int64 a3, __int64 a4)
{
  __int64 result; // rax
  char v8; // r15
  __int64 v9; // rax
  HKEY v10; // rdi
  WCHAR *lpWideCharStr; // rbx
  LSTATUS v12; // edi
  WCHAR *v13; // rbx
  DWORD v14; // r8d
  HANDLE v15; // rax
  void *v16; // rdi
  char v17; // bl
  __int64 v18; // rdi
  WCHAR *v19; // rbx
  HMODULE Library; // rdi
  FARPROC CreateInterface; // rax
  __int64 (__fastcall *v22)(_QWORD, _QWORD); // rbx
  DWORD ExitCode; // [rsp+30h] [rbp-D0h] BYREF
  DWORD cbData; // [rsp+34h] [rbp-CCh] BYREF
  HKEY phkResult; // [rsp+38h] [rbp-C8h] BYREF
  DWORD Type[4]; // [rsp+40h] [rbp-C0h] BYREF
  CHAR OutputString[1040]; // [rsp+50h] [rbp-B0h] BYREF
  CHAR MultiByteStr[1072]; // [rsp+460h] [rbp+360h] BYREF
  DWORD Data; // [rsp+8A0h] [rbp+7A0h] BYREF

sub_180007BD0();
  if ( !a1 )
    return 0LL;
  Destination = 0;
  qword_180028460 = 0LL;
  qword_180028468 = 0LL;
  qword_180028470 = 0LL;
  *a1 = 0LL;
  memset(MultiByteStr, 0, 0x410uLL);
  v8 = sub_1800072D0(MultiByteStr);
  if ( *a2 )
  {
    v9 = sub_180007B10(lpLibFileName);
    *a1 = (HMODULE)v9;
    if ( v9 )
    {
      sub_180007260(OutputString, "[S_API] SteamAPI_Init(): Loaded local '%s' OK.\n");
      OutputDebugStringA(OutputString);
    }
  }
  if ( !*a1 )
  {
    if ( !*a2 )
    {
      phkResult = 0LL;
      v10 = (HKEY)sub_1800075F0("HKCU");
      Data = 0;
      lpWideCharStr = (WCHAR *)operator new(0x46uLL);
      if ( !MultiByteToWideChar(0xFDE9u, 0, "Software\\Valve\\Steam\\ActiveProcess", -1, lpWideCharStr, 35) )
        *lpWideCharStr = 0;
      v12 = RegOpenKeyExW(v10, lpWideCharStr, 0, 0x20219u, &phkResult);
      j_j_j__free_base(lpWideCharStr);
      if ( !v12 )
      {
        cbData = 4;
        v13 = (WCHAR *)operator new(8uLL);
        if ( !MultiByteToWideChar(0xFDE9u, 0, "pid", -1, v13, 4) )
          *v13 = 0;
        v12 = RegQueryValueExW(phkResult, v13, 0LL, Type, (LPBYTE)&Data, &cbData);
        j_j_j__free_base(v13);
        RegCloseKey(phkResult);
      }
      v14 = 0;
      if ( !v12 )
        v14 = Data;
      v15 = OpenProcess(0x400u, 0, v14);
      ExitCode = 0;
      v16 = v15;
      if ( !v15
        || (!GetExitCodeProcess(v15, &ExitCode) || ExitCode != 259 ? (v17 = 0) : (v17 = 1), CloseHandle(v16), !v17) )
      {
        OutputDebugStringA("[S_API] SteamAPI_Init(): SteamAPI_IsSteamRunning() did not locate a running instance of Steam.\n");
      }
    }
    if ( !v8 )
    {
      OutputDebugStringA("[S_API] SteamAPI_Init(): Could not determine Steam client install directory.\n");
      return 0LL;
    }
    v18 = -1LL;
    do
      ++v18;
    while ( MultiByteStr[v18] );
    v19 = (WCHAR *)operator new(saturated_mul((int)v18 + 1LL, 2uLL));
    if ( !MultiByteToWideChar(0xFDE9u, 0, MultiByteStr, -1, v19, v18 + 1) )
      *v19 = 0;
    Library = LoadLibraryExW(v19, 0LL, 8u);
    j_j_j__free_base(v19);
    if ( !Library )
      Library = LoadLibraryExA(MultiByteStr, 0LL, 8u);
    *a1 = Library;
    if ( !Library )
    {
      sub_180007260(OutputString, "[S_API] SteamAPI_Init(): Sys_LoadModule failed to load: %s\n");
      OutputDebugStringA(OutputString);
      return 0LL;
    }
    if ( *a2 )
    {
      sub_180007260(OutputString, "[S_API] SteamAPI_Init(): Loaded '%s' OK.  (First tried local '%s')\n");
      OutputDebugStringA(OutputString);
      *a2 = 0;
    }
    else
    {
      sub_180007260(OutputString, "[S_API] SteamAPI_Init(): Loaded '%s' OK.\n");
      OutputDebugStringA(OutputString);
    }
  }
  if ( *a1 )
  {
    CreateInterface = GetProcAddress(*a1, "CreateInterface");
    v22 = (__int64 (__fastcall *)(_QWORD, _QWORD))CreateInterface;
    if ( CreateInterface )
    {
      qword_180028360 = ((__int64 (__fastcall *)(const char *, _QWORD))CreateInterface)("SteamClient017", 0LL);
      Steam_ReleaseThreadLocalMemory = (__int64)GetProcAddress(hLibModule, "Steam_ReleaseThreadLocalMemory");
      result = v22(a4, 0LL);
      ++qword_1800283D0;
      return result;
    }
  }
  sub_180007260(OutputString, "[S_API FAIL] SteamAPI_Init() failed; unable to locate interface factory in %s.\n");
  OutputDebugStringA(OutputString);
  if ( *a1 )
    FreeLibrary(*a1);
  *a1 = 0LL;
  return 0LL;
}
~~~

里面果然调用了SteamAPI，分析如下

#### 读取注册表

sub_1800075F0根据传入字符串返回对应预定义键

~~~c++
MACRO_HKEY __fastcall sub_1800075F0(char *String1)
{
  if ( !stricmp(String1, "HKEY_LOCAL_MACHINE") || !stricmp(String1, "HKLM") )
    return HKEY_LOCAL_MACHINE;
  if ( !stricmp(String1, "HKEY_CURRENT_USER") || !stricmp(String1, "HKCU") )
    return HKEY_CURRENT_USER;
  if ( !stricmp(String1, "HKEY_CLASSES_ROOT") || !stricmp(String1, "HKCR") )
    return HKEY_CLASSES_ROOT;
  return 0LL;
}
~~~

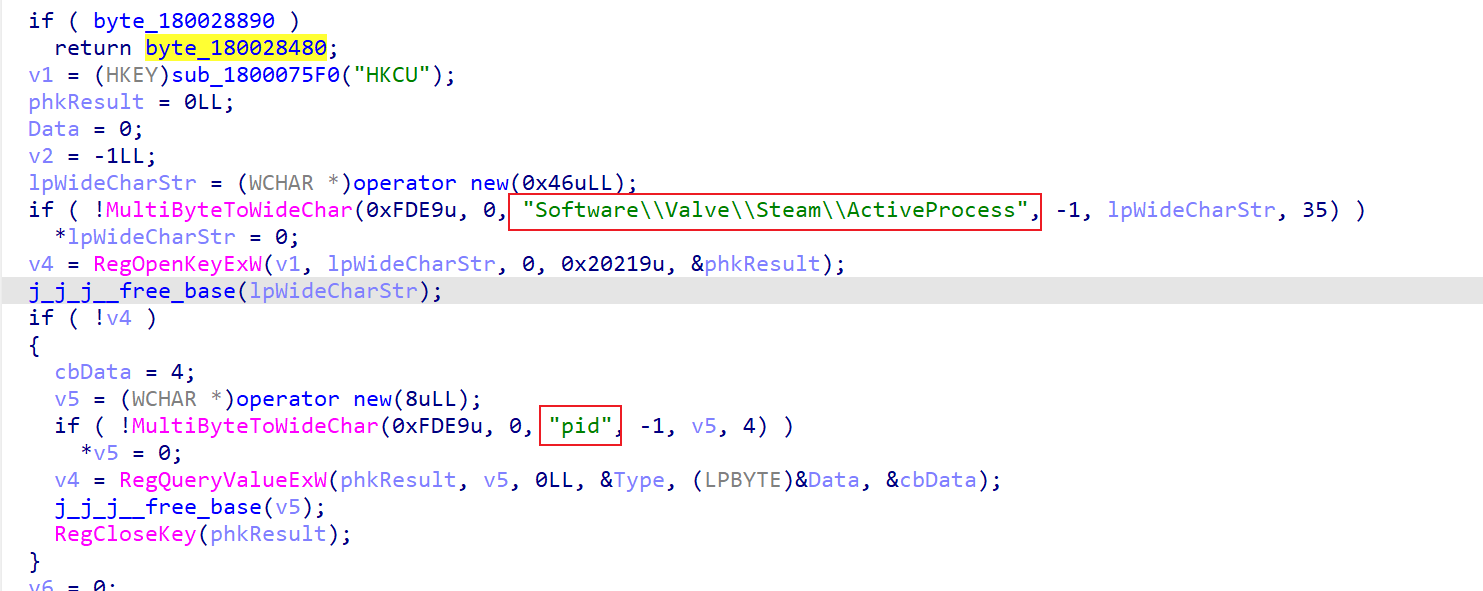

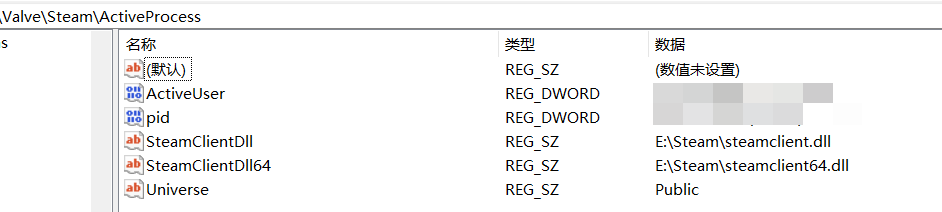

获取HKCU并使用RegOpenKeyExW打开"Software\\Valve\\Steam\\ActiveProcess"注册表项

![image-20260320213131022.png](http://xherlock.top/usr/uploads/2026/04/3988438026.png)

![image-20260320212237649.png](http://xherlock.top/usr/uploads/2026/04/918073708.png)

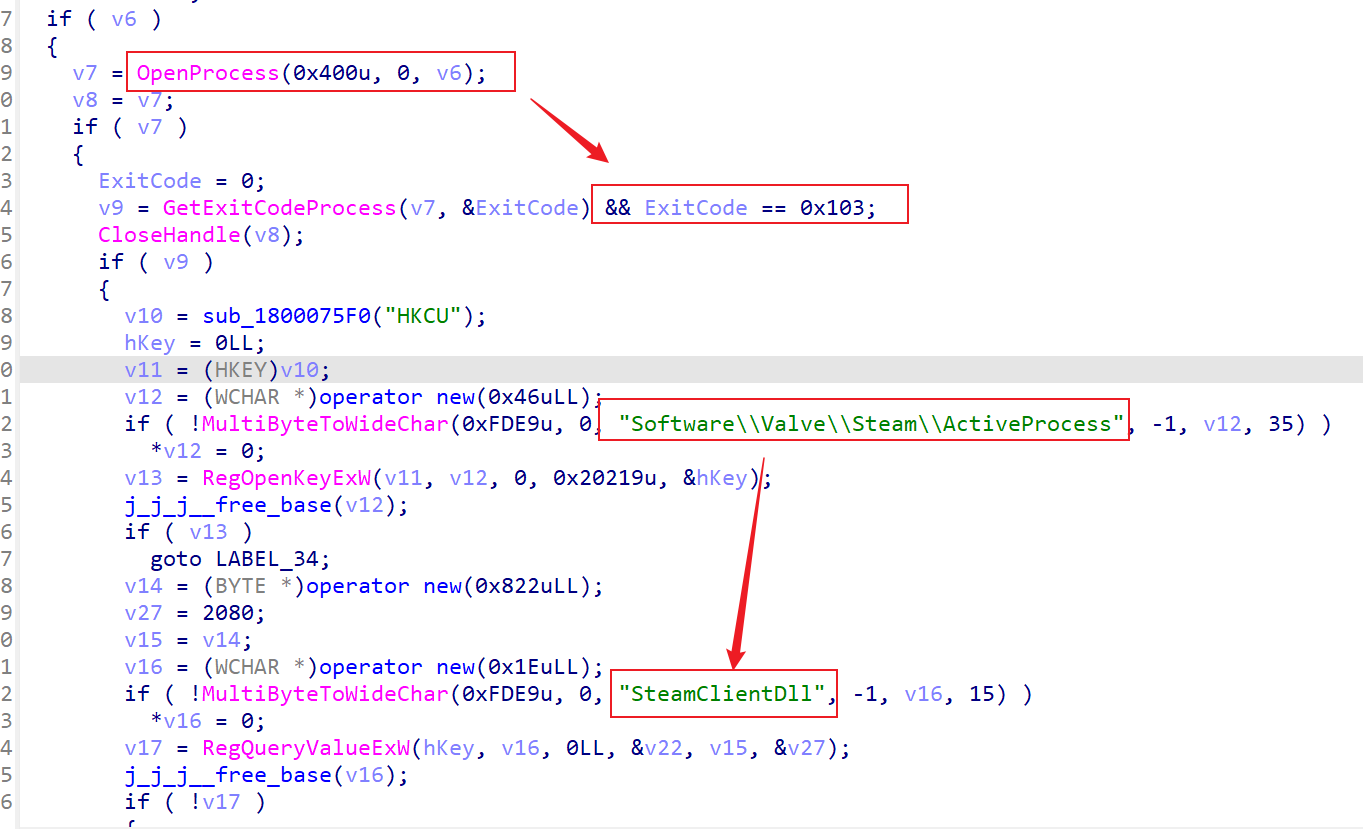

接着RegQueryValueExW检索pid到Data，然后OpenProcess打开进程，如果进程仍然运行就会返回退出码0x103（STILL_ACTIVE）

![image-20260320213220391.png](http://xherlock.top/usr/uploads/2026/04/1757079132.png)

进程还存在则v9=1，读取"HKCU\Software\\Valve\\Steam\\ActiveProcess"注册表项的SteamClientDll键，前面注册表截图我们知道是Steam安装根目录下的一个Dll路径

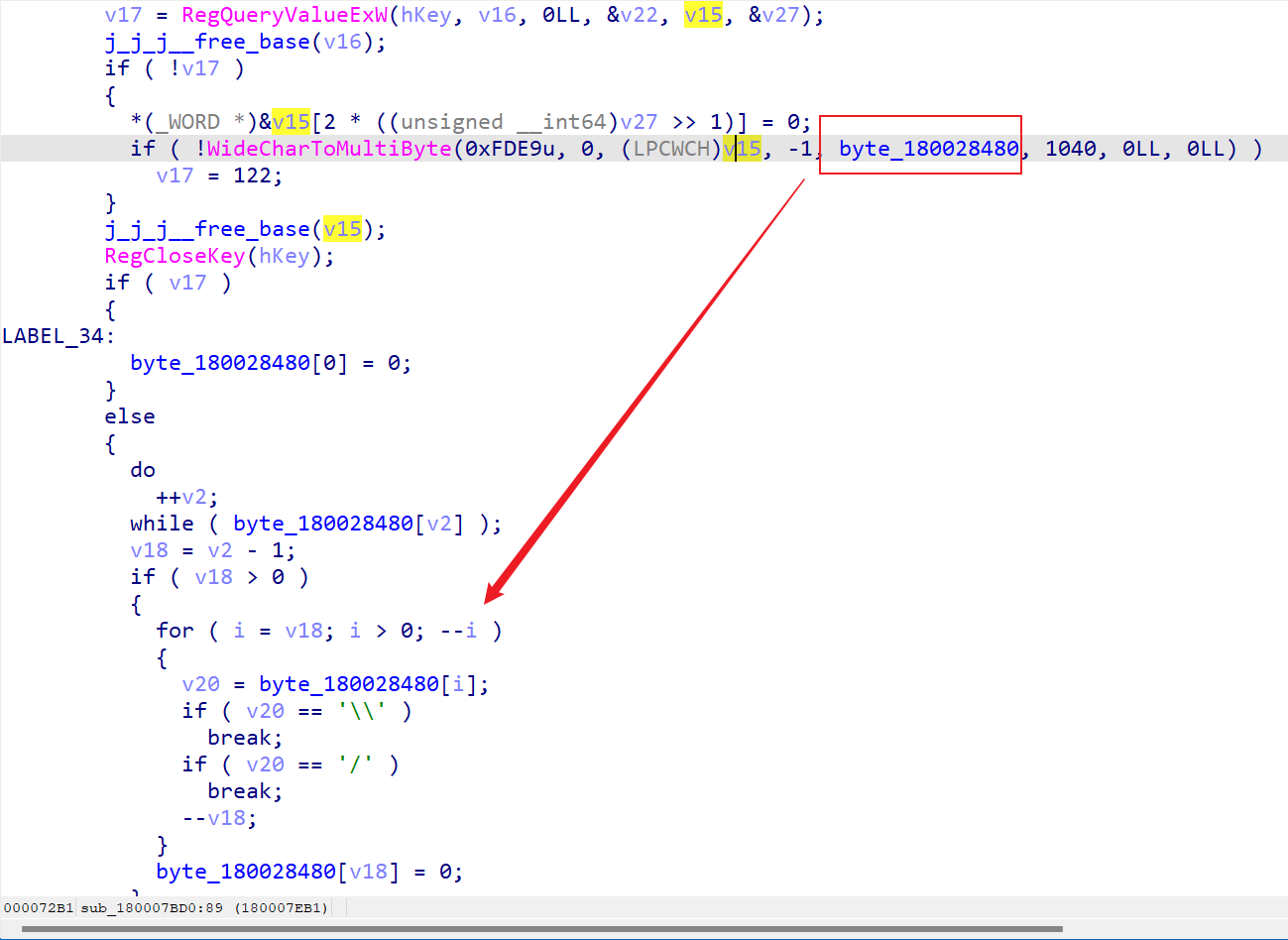

接着对提取路径的目录

![image-20260320213850667.png](http://xherlock.top/usr/uploads/2026/04/2929601782.png)

sub_1800072D0如下

~~~c++
char __fastcall sub_1800072D0(char *Destination, int a2)
{
  size_t v3; // r15
  HKEY v5; // rbp
  __int64 v6; // rdi
  WCHAR *lpWideCharStr; // rbx
  LSTATUS v8; // ebp
  bool v9; // zf
  BYTE *v10; // rax
  BYTE *v11; // r14
  WCHAR *v12; // rbx
  LSTATUS v13; // ebp
  bool v14; // bp
  HMODULE ModuleHandleA; // rax
  int v16; // eax
  CHAR v17; // cl
  int v18; // edi
  __int64 i; // rcx
  char v20; // al
  HKEY phkResult; // [rsp+40h] [rbp-658h] BYREF
  WCHAR Filename[264]; // [rsp+50h] [rbp-648h] BYREF
  CHAR MultiByteStr[1040]; // [rsp+260h] [rbp-438h] BYREF
  DWORD cbData; // [rsp+6B0h] [rbp+18h] BYREF
  DWORD Type; // [rsp+6B8h] [rbp+20h] BYREF

v3 = a2;
  if ( ::Destination[0] && !Destination )
    return 1;
  memset(MultiByteStr, 0, sizeof(MultiByteStr));
  v5 = (HKEY)sub_1800075F0("HKCU");
  phkResult = 0LL;
  v6 = -1LL;
  lpWideCharStr = (WCHAR *)operator new(0x46uLL);
  if ( !MultiByteToWideChar(0xFDE9u, 0, "Software\\Valve\\Steam\\ActiveProcess", -1, lpWideCharStr, 35) )
    *lpWideCharStr = 0;
  v8 = RegOpenKeyExW(v5, lpWideCharStr, 0, 0x20219u, &phkResult);
  j_j_j__free_base(lpWideCharStr);
  v9 = v8 == 0;
  if ( !v8 )
  {
    v10 = (BYTE *)operator new(0x822uLL);
    cbData = 2080;
    v11 = v10;
    v12 = (WCHAR *)operator new(0x22uLL);
    if ( !MultiByteToWideChar(0xFDE9u, 0, "SteamClientDll64", -1, v12, 17) )
      *v12 = 0;
    v13 = RegQueryValueExW(phkResult, v12, 0LL, &Type, v11, &cbData);
    j_j_j__free_base(v12);
    if ( !v13 )
    {
      *(_WORD *)&v11[2 * ((unsigned __int64)cbData >> 1)] = 0;
      if ( !WideCharToMultiByte(0xFDE9u, 0, (LPCWCH)v11, -1, MultiByteStr, 1040, 0LL, 0LL) )
        v13 = 122;
    }
    j_j_j__free_base(v11);
    RegCloseKey(phkResult);
    v9 = v13 == 0;
  }
  v14 = v9;
  if ( !MultiByteStr[0] )
  {
    Filename[0] = 0;
    ModuleHandleA = GetModuleHandleA(lpLibFileName);
    if ( GetModuleFileNameW(ModuleHandleA, Filename, 0x104u) - 1 <= 0x102 )
    {
      Filename[259] = 0;
      v16 = WideCharToMultiByte(0xFDE9u, 0, Filename, -1, MultiByteStr, 1040, 0LL, 0LL);
      v17 = MultiByteStr[0];
      if ( !v16 )
        v17 = 0;
      MultiByteStr[0] = v17;
    }
  }
  if ( Destination )
  {
    strncpy(Destination, MultiByteStr, v3);
    Destination[v3 - 1] = 0;
  }
  strncpy(::Destination, MultiByteStr, 0x40FuLL);
  byte_18002835F = 0;
  do
    ++v6;
  while ( ::Destination[v6] );
  v18 = v6 - 1;
  if ( v18 > 0 )
  {
    for ( i = v18; i > 0; --i )
    {
      v20 = ::Destination[i];
      if ( v20 == '\\' )
        break;
      if ( v20 == '/' )
        break;
      --v18;
    }
    ::Destination[v18] = 0;
  }
  return v14;
}
~~~

同样先读取了"HKCU\Software\\Valve\\Steam\\ActiveProcess"的SteamClientDll64，如果存在就提取值，不存在就会GetModuleHandleA获取'steamclient64.dll'的句柄，然后获取目录名

#### 加载DLL

LoadLibraryExA调用前面的steamclient64.dll，然后GetProcAddress获取了CreateInterface，然后这个函数传入了"SteamClient017", 0两个参数，获取了一些东西

再次调用sub_1800064E0检查steamclient64.dll防篡改

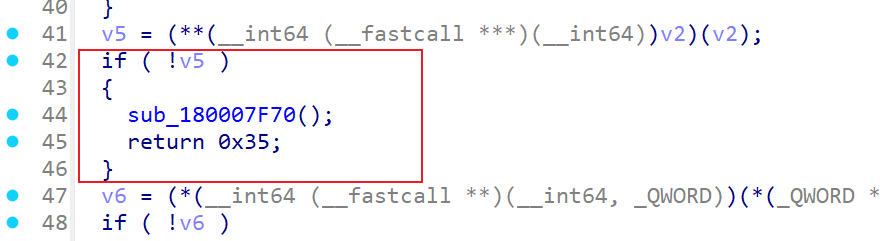

调用steamclient64_Steam_CreateSteamPipe，调试的时候可以发现在这里返回0进入if并返回0x35，然后F9就会出现Steam启动

![image-20260320221321040.png](http://xherlock.top/usr/uploads/2026/04/940200805.png)

构造启动字符串`steam://run/xxxxxx//`

~~~c++
bool __fastcall sub_180004D60(BYTE *lpFileName, unsigned int a2)
{
  unsigned __int64 v2; // rsi
  LSTATUS v4; // ebx
  __int64 v5; // rdx
  DWORD cbData; // [rsp+60h] [rbp+18h] BYREF
  HKEY hKey; // [rsp+68h] [rbp+20h] BYREF

v2 = a2;
  hKey = 0LL;
  cbData = 0;
  if ( RegOpenKeyExA(HKEY_LOCAL_MACHINE, "Software\\Valve\\Steam", 0, 0x201u, &hKey) )
    return 0;
  cbData = 2 * v2;
  v4 = RegQueryValueExW(hKey, L"InstallPath", 0LL, 0LL, lpFileName, &cbData);
  RegCloseKey(hKey);
  if ( v4 || cbData < 2 || cbData >> 1 >= (unsigned int)v2 )
    return 0;
  v5 = -1LL;
  *(_WORD *)&lpFileName[2 * ((unsigned __int64)cbData >> 1)] = 0;
  do
    ++v5;
  while ( *(_WORD *)&lpFileName[2 * v5] );
  if ( v5 && *(_WORD *)&lpFileName[2 * v5 - 2] == 92 )
    *(_WORD *)&lpFileName[2 * v5-- - 2] = 0;
  if ( v5 + 11 > v2 )
    return 0;
  *(_OWORD *)&lpFileName[2 * v5] = xmmword_180018798;
  *(_DWORD *)&lpFileName[2 * v5 + 16] = 6619256;
  *(_WORD *)&lpFileName[2 * v5 + 20] = 0;
  return GetFileAttributesW((LPCWSTR)lpFileName) != -1;
}
~~~

sub_180004D60读取注册表获取steam目录（"HKEY_LOCAL_MACHINE\Software\\Valve\\Steam\InstallPath"），然后拼接`\\steam.exe`，接着调用GetFileAttributesW判断文件是否存在

判断完就会调用ShellExecuteW执行 `xxx\\steam.exe steam://run/xxxxxx//`，查询可知在启动Steam并尝试运行AppID为xxx的游戏（AppID对应a2+56，也就是qword7.LODWORD），他会去找SteamLibrary\steamapps目录下对应的`appmanifest_appid.acf`

### AES解密

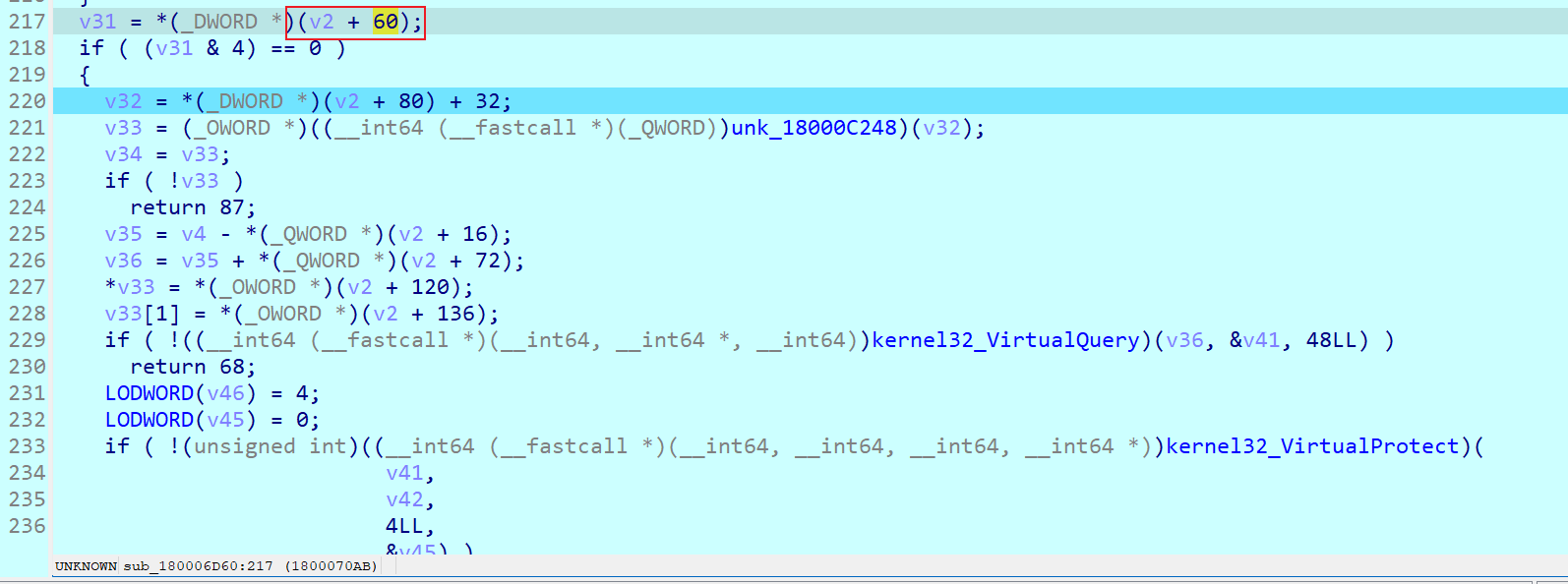

如果我们修改sub_180006680返回值为48就不会执行shell命令，而是进入修改代码的if块中，这里读取的是v2+60（对应的是qword7.HIDWORD，检测调试器标志位）

![image-20260321225159598.png](http://xherlock.top/usr/uploads/2026/04/987434968.png)

v2+80（qword10.LODWORD）提取出了一个长度数值，然后+32并分配内存，很像补齐的一个操作

v2+16是ImageBase地址值，v2+120、v2+136提取出了32字节（qword15-18），v2+72（qword9）是0x1000和ImageBase相加得到的正好是PDS-Win64-Shipping.exe的.text段

来看sub_180005240函数，调试可以知道a1是ImageBase

~~~c++
__int64 __fastcall sub_180005240(IMAGE_DOS_HEADER *a1, __int64 a2, __int64 a3)
{
  __int64 result; // rax
  __int64 v7; // r8
  unsigned int v8; // edx
  _DWORD *v9; // r9
  unsigned __int64 v10; // r8
  __int64 v11; // r11
  __int64 v12; // rdx
  char *v13; // rdi
  unsigned int v14; // ebx
  _WORD *v15; // r11
  int v16; // eax
  unsigned __int16 v17; // cx
  unsigned __int64 v18; // rdx
  unsigned __int64 v19; // r8
  unsigned __int64 v20; // rdx
  unsigned __int64 v21; // r8

result = a1->e_lfanew;
  v7 = *(unsigned int *)((char *)&a1[2].e_res2[4] + result);
  if ( (_DWORD)v7 )
  {
    if ( *(_DWORD *)((char *)&a1[2].e_res2[6] + result) )
    {
      v8 = *(_DWORD *)((char *)&a1->e_magic + v7);
      v9 = (_DWORD *)((char *)&a1->e_magic + v7);
      if ( v8 )
      {
        do
        {
          v10 = *(_QWORD *)(a3 + 72);
          v11 = v8;
          if ( v8 >= v10 + *(unsigned int *)(a3 + 80) || v8 + 4095 < v10 )
          {
            LODWORD(v12) = v9[1];
          }
          else
          {
            v12 = (unsigned int)v9[1];
            v13 = (char *)a1 + v11;
            v14 = 0;
            v15 = v9 + 2;
            if ( ((v12 - 8) & 0xFFFFFFFFFFFFFFFEuLL) != 0 )
            {
              do
              {
                v16 = (unsigned __int16)*v15 >> 12;
                v17 = *v15 & 0xFFF;
                if ( v16 )
                {
                  if ( v16 == 3 )
                  {
                    v20 = *(_QWORD *)(a3 + 72);
                    v21 = *v9 + (unsigned int)v17;
                    if ( v21 < v20 + *(unsigned int *)(a3 + 80) && v21 >= v20 )
                      *(_DWORD *)&v13[v17] += a2;
                  }
                  else if ( v16 == 10 )
                  {
                    v18 = *(_QWORD *)(a3 + 72);
                    v19 = *v9 + (unsigned int)v17;
                    if ( v19 < v18 + *(unsigned int *)(a3 + 80) && v19 >= v18 )
                      *(_QWORD *)&v13[v17] += a2;
                  }
                  else
                  {
                    __debugbreak();
                  }
                }
                v12 = (unsigned int)v9[1];
                ++v14;
                ++v15;
              }
              while ( v14 < (unsigned __int64)(v12 - 8) >> 1 );
            }
          }
          result = (unsigned int)v12;
          v9 = (_DWORD *)((char *)v9 + (unsigned int)v12);
          v8 = *v9;
        }
        while ( *v9 );
      }
    }
  }
  return result;
}
~~~

分析可知这个函数是**在针对主代码段进行重定位修正**

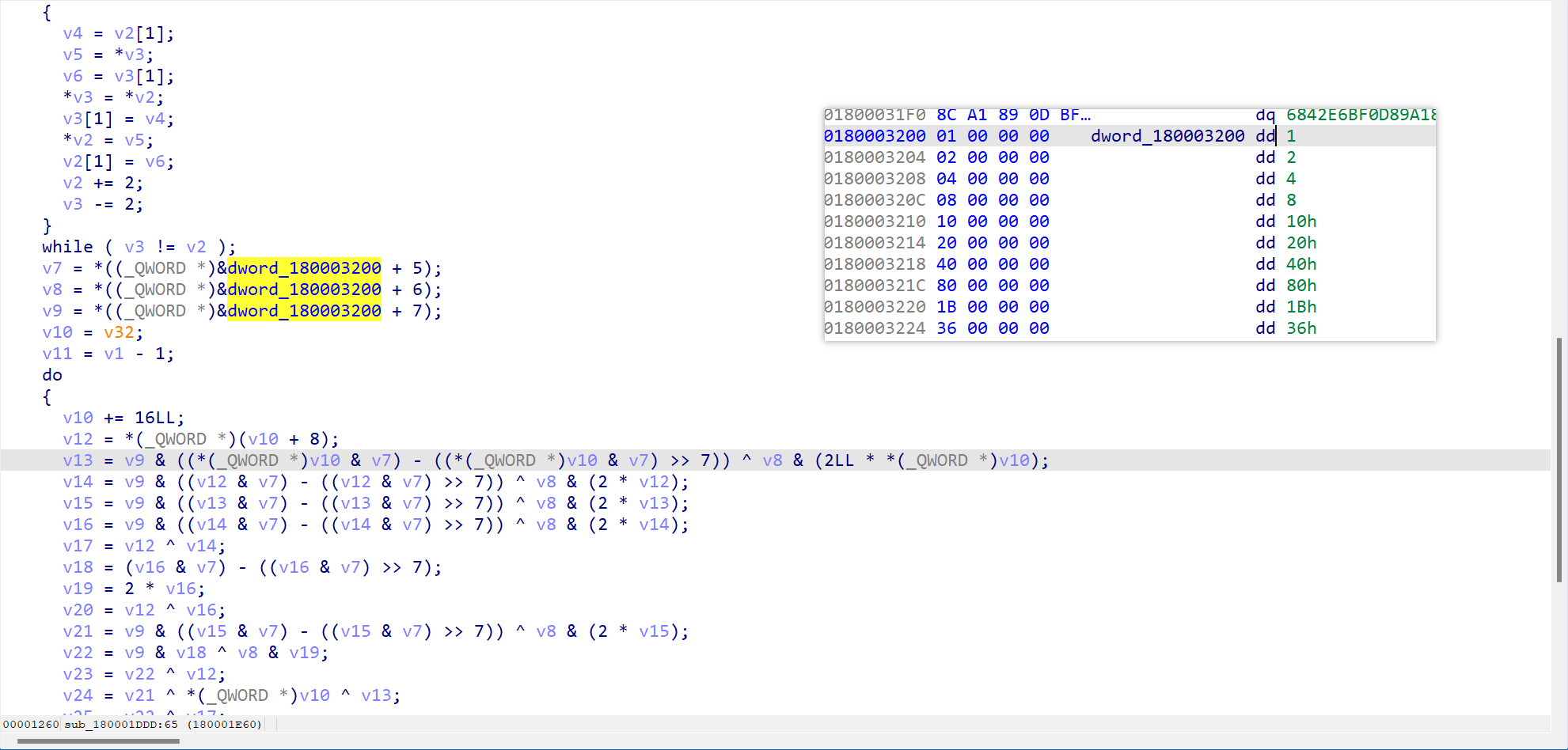

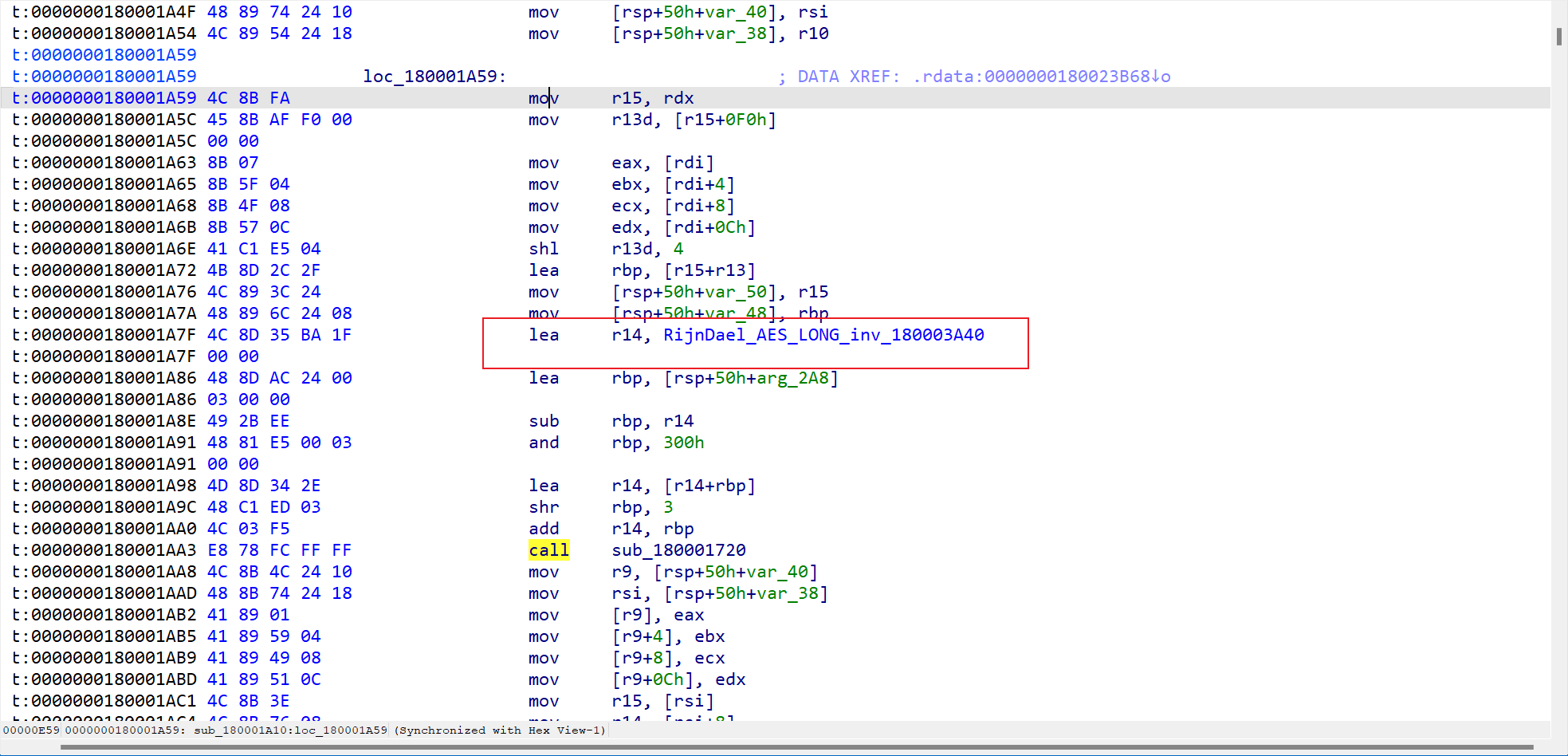

sub_180004200函数分析发现AES解密

![image-20260324225635863.png](http://xherlock.top/usr/uploads/2026/04/3897386656.png)

![image-20260324225709078.png](http://xherlock.top/usr/uploads/2026/04/238735995.png)

![image-20260331222758909.png](http://xherlock.top/usr/uploads/2026/04/4121978954.png)

调试来到sub_180004200看传入参数，发现rcx（a1）存储了v2+120（v33）开始的32字节+text段代码（长度为qword11.LODWORD，memmove实现了拷贝到v33开始32字节后面），rdx（a2）存储了0x1F8000应该是text段数据长度，r8（a3）存储了v2+88开始的值，r9（a4）应该是长度0x20，a6存储了.text段数据，a7为0x190

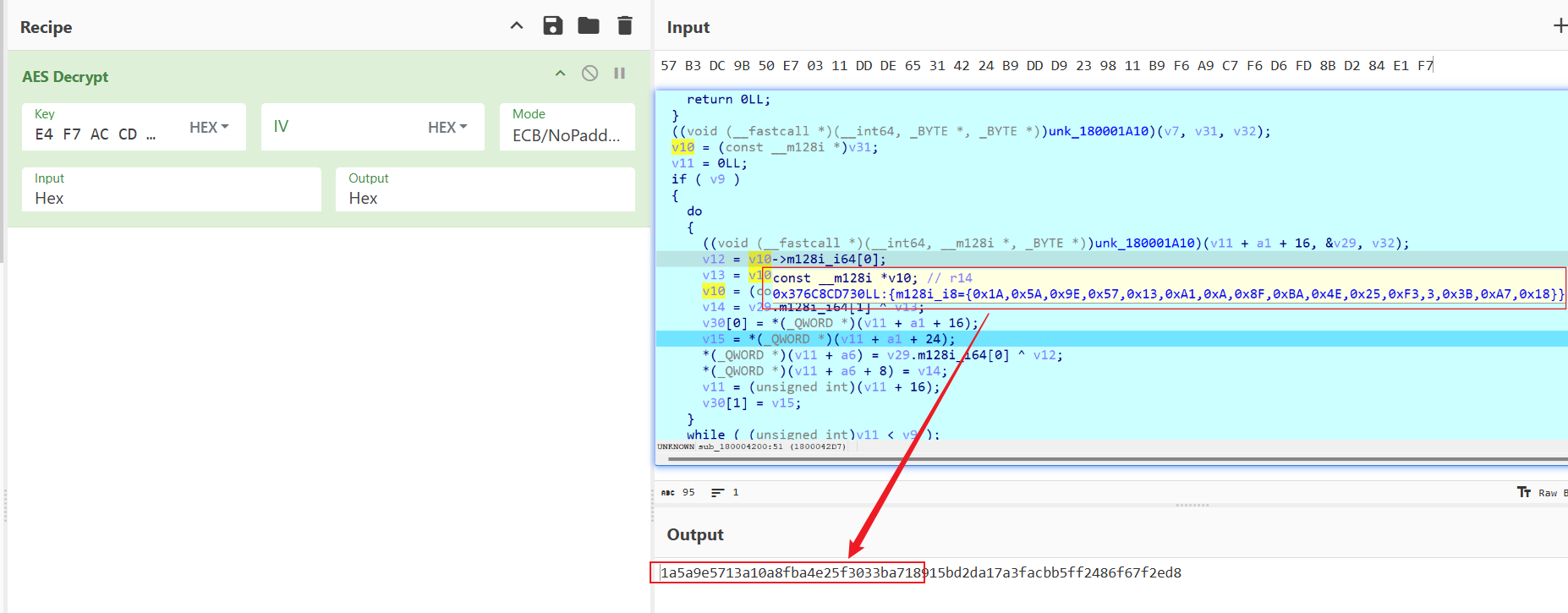

分析可知sub_1800084E0是expand_key，v32是轮密钥；sub_180001A10是aes解密函数，首先对传入的a1做解密，解密得到结果为16字节的iv，然后从a1+16开始循环做AES CBC解密

![image-20260331223540895.png](http://xherlock.top/usr/uploads/2026/04/1314162837.png)

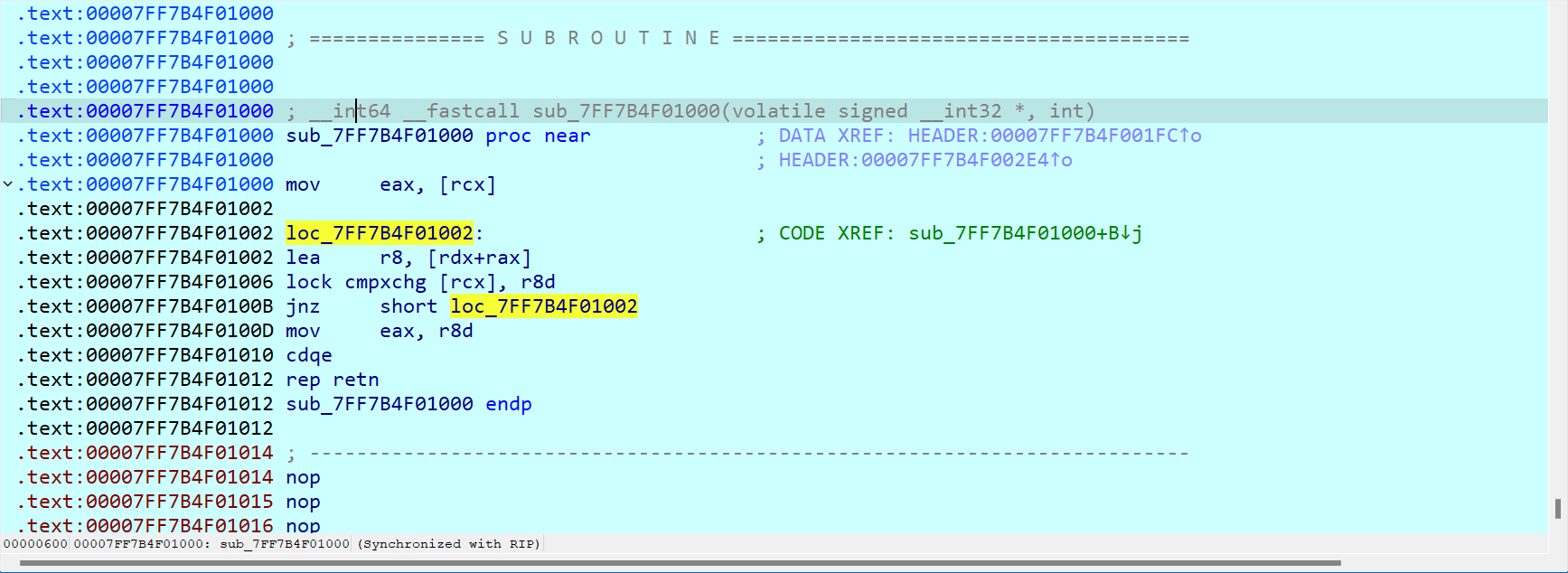

没有魔改AES，老外搞对抗还是太友好了。调试跳过函数，此时去text段发现已经可以反编译了

![image-20260324232047498.png](http://xherlock.top/usr/uploads/2026/04/4249650112.png)

## DRMP结构体分析

到这里我们基本分析完全部逻辑，现在尝试还原DRMP那段数据，可以将其视为一个结构体（里面有magic、key、iv、地址等各种数据），结合前面分析的qword0、qword1...以及dll里v2+xxx等还原出结构体如下

~~~c++
struct DRMP {
    unsigned int XOR_key;
    unsigned int Magic; // 0xC0DEC0DF
    long long rva;	// 64位base？0x140000000，但疑似没有用到
    long long ImageBase_Offset;	// start-ImageBase_Offset指向ImageBase
    unsigned int BindData_Offset; // start-BindData_Offset指向一段加密数据（.bind）
    unsigned int Code_size;
    long long text_offset;	// 解密完的text段的偏移
    unsigned int APIString_offset;     // API字符串长度
    unsigned int APIString_len;	// start-BindData_Offset+APIString_offset指向API字符串加密后的数据
    unsigned int DLL_offset;    // 经过XTEA加密后的DLL数据偏移（相对ImageBase）
    unsigned int DLL_len;       // DLL数据长度
    unsigned int AppID;         // 待启动游戏的AppID
    unsigned int NoCheckDebugger;   // 不检查调试器
    unsigned int unknown;   // 没用上
    unsigned int CRC;
    long long real_text_offset;   // .text段偏移（相对ImageBase）
    unsigned int text_len;  // .text段长度
    unsigned int unknown1;  // 虽然读取了但是没加入任何计算
    byte AES_key[32];   // AES密钥
    byte AES_iv[16];    // 加密后的AES iv
    byte cipher[16];
    unsigned int XTEA_key[4];
    byte zeros[32];
    long long GetModuleHandleA_RVA;  // 相对前面API字符串加密后的数据的偏移
    long long GetProcAddress_RVA;
    long long LoadLibraryA_RVA;
    long long LoadLibraryW_RVA;
    long long GetProcAddress1_RVA;
};
~~~

到这里就可以结束了，后面就是实现脚本自动化解密text段，涉及到版权保护不再放出来，这里只做分析

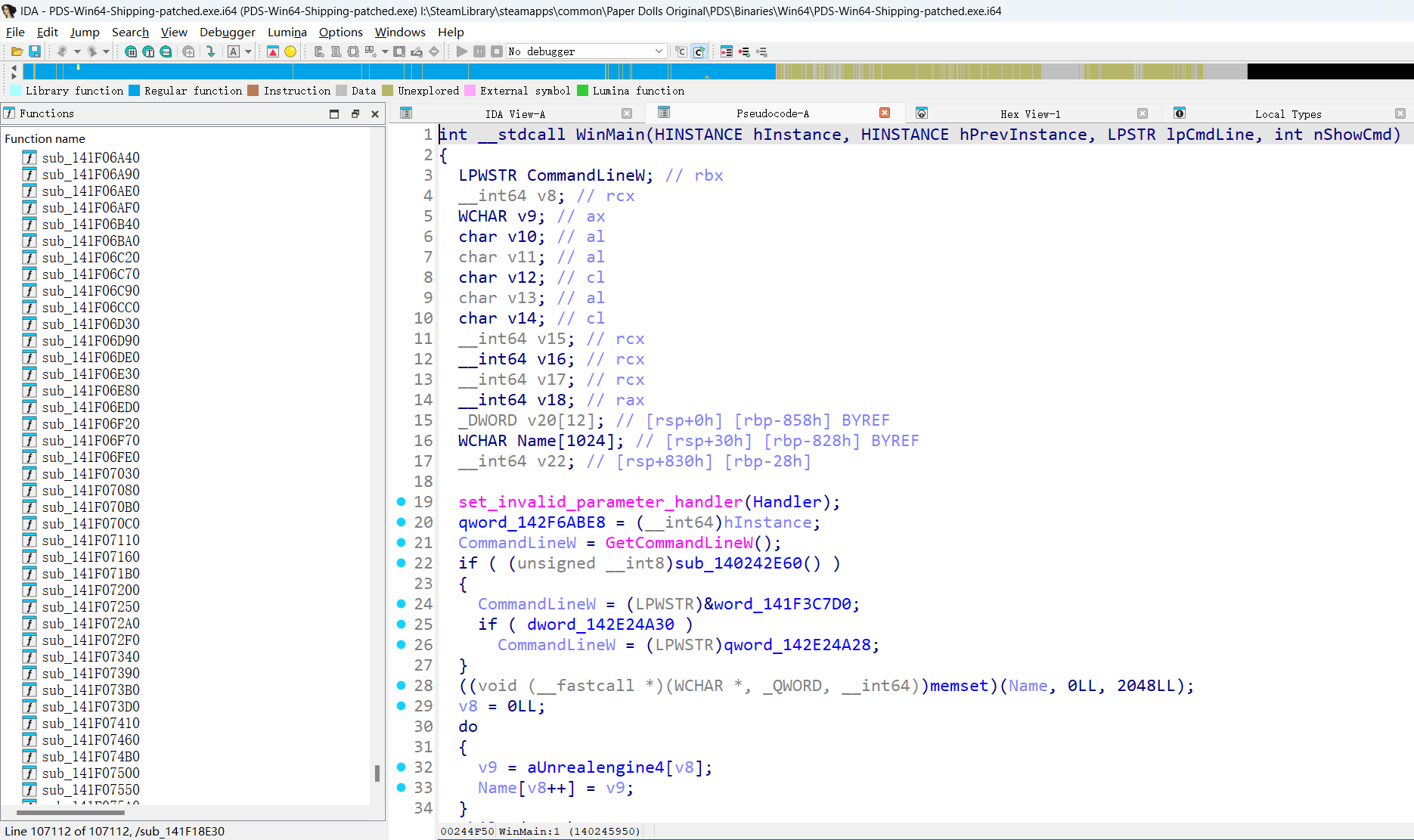

放一张破解DRM还原游戏主逻辑的截图

![image-20260409111639489.png](http://xherlock.top/usr/uploads/2026/04/2996689383.png)

最后修改：2026 年 04 月 09 日

如果觉得我的文章对你有用，请随意赞赏

发表评论取消回复
使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款

评论 *

私密评论

名称 *

🎲

邮箱 *

地址

Reverse（十一）
浏览次数: 19259
Reverse（十三）
浏览次数: 7317
Win11新机鼓捣记录
浏览次数: 3189
js逆向爬虫1
浏览次数: 2744
HTML1
浏览次数: 2512

http://www.baidu.com
hello
laokey
申请友链，链接已加！名称：LaoKey's Blog链接：ht...
laokey
大佬，来个友链呗名称：LaoKey's Blog链接：http...
mars
博主你好，请问怎么知道的alloc函数属于Buffer下的方法...
lj
该评论仅登录用户及评论双方可见

操作系统实验Lab04
浏览次数: 1162
Vue（一）
浏览次数: 953
Reverse（五）
浏览次数: 1328
Sqli-labs学习6
浏览次数: 1021
数据结构与算法思维导图
浏览次数: 912

某蒸汽平台DRM逆向分析

Xherlock • 2026 年 04 月 09 日

## 某蒸汽平台DRM逆向分析

开始分析，PaperDollsOriginal.exe是入口

## 启动程序

可以发现获取了当前目录和一个ID为201的资源数据，使用ResourceHacker查看发现资源值为`PDS/Binaries/Win64/PDS-Win64-Shipping.exe`

利用swprintf将当前目录和资源里的目录拼接

接着又读取了ID为202的资源数据（值为`PSD`），然后和上一个做了拼接，最终拼接的启动命令是`"游戏目录\PDS/Binaries/Win64/PDS-Win64-Shipping.exe" PDS 其他参数`

接着调用sub_7FF618CA1000检查了`MSVCP140.DLL`、`ucrtbase.dll`等DLL依赖，如果不存在就启动`Engine\\Extras\\Redist\\en-us\\UE4PrereqSetup_x64.exe`进行安装

是典型的Steam平台引导程序，不需要分析过多，直接去分析`PDS\Binaries\Win64`下的`PDS-Win64-Shipping.exe`

## PDS-Win64-Shipping.exe的.bind段

start函数首先push了全部寄存器

![image-20260318145119927.png](http://xherlock.top/usr/uploads/2026/04/3320001549.png)

接着调用一个函数，开头计算出了start-0xf0的地址

![image-20260318145342742.png](http://xherlock.top/usr/uploads/2026/04/2477313946.png)

发现地址指向一块没法反汇编的区域

![image-20260318145620965.png](http://xherlock.top/usr/uploads/2026/04/2432082165.png)

接着开始循环拷贝字节到`[rsp+0BC8h+var_378]`，然后循环异或，每次后四字节异或前四字节

![image-20260318150830249.png](http://xherlock.top/usr/uploads/2026/04/3944945510.png)

检查解密出来的qword0.HIDWORD是否为0xC0DEC0DF（类似魔数），然后计算了start-0x3380310（qword2），计算出的地址指向了一个ImaeBase HEADER PE头；

![image-20260318151548633.png](http://xherlock.top/usr/uploads/2026/04/3116059355.png)

接着又计算了start-0x310（qword3.LODWORD），指向一个可疑代码段

![image-20260318152150716.png](http://xherlock.top/usr/uploads/2026/04/3126256164.png)

拷贝这个代码段（大小0x220，经过(qword5.HIDWORD+15)&0x0FFFFFFF0计算得到，然后.bind位置+qword5.LODWORD得到代码起始位置）到内存，和上面相同的异或处理

![image-20260318153112085.png](http://xherlock.top/usr/uploads/2026/04/2191203632.png)

解密完发现是API字符串

![image-20260318153236425.png](http://xherlock.top/usr/uploads/2026/04/2852296339.png)

字符串如下，可以看到steam一些字眼以及API函数名

往后看就能看到开始GetModuleHandleA（ImageBase+qword25）调用API

![image-20260318154001308.png](http://xherlock.top/usr/uploads/2026/04/4055444140.png)

![image-20260318154059564.png](http://xherlock.top/usr/uploads/2026/04/3949915472.png)

获取了kernel32.dll地址，然后GetProcAddress（ImageBase+qword26）查找"LoadLibraryA"地址

![image-20260318154916918.png](http://xherlock.top/usr/uploads/2026/04/404542325.png)

然后获取了msvcrt.dll的calloc、free、vsprintf，kernel32.dll的TerminateProcess、GetLastError、OpenEventA等

接着是一处反调试（读取了qword7.HIDWORD，类似于CheckDebugFlag），这里需要手动修改BeingDebugged的值为0

![image-20260318160325062.png](http://xherlock.top/usr/uploads/2026/04/1389654096.png)

否则弹窗报错

![image-20260318164255908.png](http://xherlock.top/usr/uploads/2026/04/4259353934.png)

继续向下先calloc分配了0x28720大小（qword6.HIDWORD），对.bind的一块区域（当前函数后面的区域，偏移值为qword6.DOWORD）进行XTEA解密（密钥来自qword19、20）

![image-20260318161121612.png](http://xherlock.top/usr/uploads/2026/04/3250484952.png)

解密完的结果异或v90（0x55填充），调试到解密完已经能看到PE头了，nice！

![image-20260318161400125.png](http://xherlock.top/usr/uploads/2026/04/1594233984.png)

写一个脚本直接dump（后面分析可知是DLL，里面包含了steam启动相关）

start_ea = 0x297D66F0080
size     = 0x28720
out_path = r"xxxx\steamdrmp.dll"

dump_bytes(start_ea, size, out_path)
~~~

对多段数据做了CRC校验

![image-20260318162629601.png](http://xherlock.top/usr/uploads/2026/04/409406076.png)

正确设置断点和调试来到比较CRC值处可以发现值相等（CRC值为qword8.HIDWORD）

![image-20260318164543467.png](http://xherlock.top/usr/uploads/2026/04/1522913710.png)

校验PE文件并把DLL写入内存

![image-20260318164613052.png](http://xherlock.top/usr/uploads/2026/04/3999267684.png)

后面可以看到查找了WriteFile、ReadFile、SetFilePointerEx、CloseHandle等API

接着开始处理DLL

![image-20260318205445267.png](http://xherlock.top/usr/uploads/2026/04/3361015858.png)

调用了一个导出函数，把前面解密出来的数据（结构体）和数据长度传入

![image-20260318205830670.png](http://xherlock.top/usr/uploads/2026/04/1201793272.png)

要求返回值是48

## steamdrmp.dll

emmm drm=Digital Rights Management，看来用来保护的

DLL直接看导出函数，发现steam函数

![image-20260318165004557.png](http://xherlock.top/usr/uploads/2026/04/2940019926.png)

很直白的函数，dll的话可以直接exe启动dll内存调试（Application填exe，目录填exe目录，input file为空）

首先检查了传入参数，要求a3不小于240，a2[4]数据要等于0xC0DEC0DF，正好对应前面exe里的分析

### 反调试分析

接着进入if里会有3处反调试，分别是

1. IsDebuggerPresent
2. NtSetInformationThread（第二个参数17对应ThreadHideFromDebugger），只要调用就会挂掉调试器
3. GetTickCount()，在最后检查了时间是否超过10000ms

### 防篡改分析

进入sub_1800064E0，里面调用ReadFile读取了自身exe

然后调用sub_1800084C0

![image-20260319222830963.png](http://xherlock.top/usr/uploads/2026/04/3444018252.png)

![image-20260319222850597.png](http://xherlock.top/usr/uploads/2026/04/3077014764.png)

sub_180005900函数如下，可以看到常量

存在sha1加密特征，这部分涉及到了一些加密签名运算等，可以交给AI分析，分析结果如下

函数可以抽象为

~~~c++
bool verify_sha1_sig(
    uint8_t *data, uint32_t data_len,      // a1,a2
    uint8_t *sig,  uint32_t sig_len,       // a3,a4
    uint8_t *pub_der, uint32_t pub_der_len // a5,a6
);
~~~

验证通过后返回1

所以综上sub_1800064E0在检查**模块文件本身合法且签名通过，并且内存中的模块头没有被改**

### 启动Steam

sub_180006680疑似调用了多个API，出现了多个函数字符串

先看sub_180007AF0

~~~c++
__int64 __fastcall sub_180007AF0(HMODULE *a1, char a2, __int64 a3, __int64 a4)
{
  char v5; // [rsp+38h] [rbp+10h] BYREF

里面果然调用了SteamAPI，分析如下

#### 读取注册表

sub_1800075F0根据传入字符串返回对应预定义键

获取HKCU并使用RegOpenKeyExW打开"Software\\Valve\\Steam\\ActiveProcess"注册表项

![image-20260320213131022.png](http://xherlock.top/usr/uploads/2026/04/3988438026.png)

![image-20260320212237649.png](http://xherlock.top/usr/uploads/2026/04/918073708.png)

接着RegQueryValueExW检索pid到Data，然后OpenProcess打开进程，如果进程仍然运行就会返回退出码0x103（STILL_ACTIVE）

![image-20260320213220391.png](http://xherlock.top/usr/uploads/2026/04/1757079132.png)

进程还存在则v9=1，读取"HKCU\Software\\Valve\\Steam\\ActiveProcess"注册表项的SteamClientDll键，前面注册表截图我们知道是Steam安装根目录下的一个Dll路径

接着对提取路径的目录

![image-20260320213850667.png](http://xherlock.top/usr/uploads/2026/04/2929601782.png)

sub_1800072D0如下

#### 加载DLL

LoadLibraryExA调用前面的steamclient64.dll，然后GetProcAddress获取了CreateInterface，然后这个函数传入了"SteamClient017", 0两个参数，获取了一些东西

再次调用sub_1800064E0检查steamclient64.dll防篡改

调用steamclient64_Steam_CreateSteamPipe，调试的时候可以发现在这里返回0进入if并返回0x35，然后F9就会出现Steam启动

![image-20260320221321040.png](http://xherlock.top/usr/uploads/2026/04/940200805.png)

构造启动字符串`steam://run/xxxxxx//`

sub_180004D60读取注册表获取steam目录（"HKEY_LOCAL_MACHINE\Software\\Valve\\Steam\InstallPath"），然后拼接`\\steam.exe`，接着调用GetFileAttributesW判断文件是否存在

### AES解密

如果我们修改sub_180006680返回值为48就不会执行shell命令，而是进入修改代码的if块中，这里读取的是v2+60（对应的是qword7.HIDWORD，检测调试器标志位）

![image-20260321225159598.png](http://xherlock.top/usr/uploads/2026/04/987434968.png)

v2+80（qword10.LODWORD）提取出了一个长度数值，然后+32并分配内存，很像补齐的一个操作

v2+16是ImageBase地址值，v2+120、v2+136提取出了32字节（qword15-18），v2+72（qword9）是0x1000和ImageBase相加得到的正好是PDS-Win64-Shipping.exe的.text段

来看sub_180005240函数，调试可以知道a1是ImageBase

分析可知这个函数是**在针对主代码段进行重定位修正**

sub_180004200函数分析发现AES解密

![image-20260324225635863.png](http://xherlock.top/usr/uploads/2026/04/3897386656.png)

![image-20260324225709078.png](http://xherlock.top/usr/uploads/2026/04/238735995.png)

![image-20260331222758909.png](http://xherlock.top/usr/uploads/2026/04/4121978954.png)

![image-20260331223540895.png](http://xherlock.top/usr/uploads/2026/04/1314162837.png)

没有魔改AES，老外搞对抗还是太友好了。调试跳过函数，此时去text段发现已经可以反编译了

![image-20260324232047498.png](http://xherlock.top/usr/uploads/2026/04/4249650112.png)

## DRMP结构体分析

到这里就可以结束了，后面就是实现脚本自动化解密text段，涉及到版权保护不再放出来，这里只做分析

放一张破解DRM还原游戏主逻辑的截图

![image-20260409111639489.png](http://xherlock.top/usr/uploads/2026/04/2996689383.png)

发表评论 取消回复 使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款

某蒸汽平台DRM逆向分析

发表评论取消回复
使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款
