# SCTF 2024 复现

## BBox

java+so层加密，so层固定seed和crc

~~~c
__int64 __fastcall Java_com_example_bbandroid_MainActivity_checkFlag(JNIEnv *a1, __int64 a2, __int64 a3)
{
  __int64 v4; // rbx
  int v5; // r13d
  const char *v6; // rax
  const char *v7; // r12
  __int64 v8; // r14
  signed int v9; // ecx
  int v10; // eax
  signed int v11; // esi
  signed int v12; // edx
  signed int v13; // esi
  unsigned __int64 v14; // rax
  int v15; // edx
  int v16; // esi
  char v18[264]; // [rsp+0h] [rbp-138h] BYREF
  unsigned __int64 v19; // [rsp+108h] [rbp-30h]

v19 = __readfsqword(0x28u);
  LODWORD(v4) = 0;
  v5 = time(0LL);
  v6 = (const char *)((__int64 (__fastcall *)(JNIEnv *, __int64, _QWORD))(*a1)->GetStringUTFChars)(a1, a3, 0LL);
  if ( v6 )
  {
    v7 = v6;
    strncpy(v18, v6, 0xFFuLL);
    v18[255] = 0;
    LODWORD(v4) = __strlen_chk(v18, 256LL);
    ((void (__fastcall *)(JNIEnv *, __int64, const char *))(*a1)->ReleaseStringUTFChars)(a1, a3, v7);
    srand(v5 / 1000000 / 100);
    if ( (int)v4 >= 4 )
    {
      v4 = (unsigned int)v4 >> 2;
      v8 = 0LL;
      do
      {
        v18[4 * v8] ^= rand();
        v18[4 * v8 + 1] ^= rand();
        v18[4 * v8 + 2] ^= rand();
        v18[4 * v8 + 3] ^= rand();
        v9 = *(_DWORD *)&v18[4 * v8];
        v10 = 32;
        do
        {
          v11 = (2 * v9) ^ 0x85B6874F;
          if ( v9 >= 0 )
            v11 = 2 * v9;
          v12 = (2 * v11) ^ 0x85B6874F;
          if ( v11 >= 0 )
            v12 = 2 * v11;
          v13 = (2 * v12) ^ 0x85B6874F;
          if ( v12 >= 0 )
            v13 = 2 * v12;
          v9 = (2 * v13) ^ 0x85B6874F;
          if ( v13 >= 0 )
            v9 = 2 * v13;
          v10 -= 4;
        }
        while ( v10 );
        *(_DWORD *)&v18[4 * v8++] = v9;
      }
      while ( v8 != v4 );
    }
    if ( v18[0] == 51 )
    {
      v14 = -1LL;
      while ( __PAIR64__(v18[v14 + 3], v18[v14 + 2]) == __PAIR64__(byte_B60[v14 + 3], byte_B60[v14 + 2])
           && v18[v14 + 4] == byte_B60[v14 + 4] )
      {
        if ( v14 == 35 )
        {
          v14 = 39LL;
LABEL_25:
          LOBYTE(v4) = v14 >= 0x27;
          return (unsigned int)v4;
        }
        v15 = v18[v14 + 5];
        v16 = byte_B60[v14 + 5];
        v14 += 4LL;
        if ( v15 != v16 )
          goto LABEL_25;
      }
    }
    LODWORD(v4) = 0;
  }
  return (unsigned int)v4;
}
~~~

提取17时候的rand，然后python解密

~~~python
s = [0xA3C8C033, 0x1A1DBFF3, 0xC6B7413B, 0x52865EF1, 0x1E6BCF52, 0xBFCBF9C5, 0xF1627BED, 0x544843F7, 0xD94C85FB, 0x6EF23035]
new_s = []
for v in s:
    for i in range(32):
        bit = v & 1
        if bit:
            v ^= 0x85B6874F
        v >>= 1
        if bit:
            v |= 0x80000000
    new_s += v.to_bytes(4, "little")
rand = [185, 173, 127, 3, 159, 15, 241, 103, 121, 183, 57, 221, 147, 136, 174, 234, 176, 61, 122, 7, 242, 137, 229, 52, 35, 85, 216, 78, 183, 218, 236, 113]
for i in range(32):
    print(chr(rand[i]^new_s[i]), end="")	# HuqdOgqiMKPiWHFxFmPiW/M}I\rfO.}f
~~~

接着找java层，发现被NP管理器混淆了，混淆的比较厉害，很多名称没法轻松hook，甚至jadx反编译报错

### 法一

我想用一种构造方法，把base64表还原出来，输入不太行，麻烦，pass

### 法二

直接分析base64 table的生成，硬分析，非常笨的方法，但做出来绝对只是时间的问题，事实上我[去年复现](https://github.com/SH-Op-X/CTF-Writeups/tree/main/SCTF_2024#bbox)的时候就是这样的

### 法三

hook生成base64表的地方，也就是下面这里

~~~java
strange.ALPHABET = (char[])ۥۣۢۢ.n(0x9259, ((String)ۥۣۢۢ.n(0xFA8C, null, new Object[]{((short[])ۥۣۢۢ.n(70719)), ((int)0), ((int)(ۤۧۦ۠.۠۠ۦۥ ^ -750)), ((int)3052)})), new Object[0]);
~~~

hook拿得到`nopqrstDEFGHIJKLhijklUVQRST/WXYZabABCcdefgmuv6789+wxyz012345MNOP`

~~~js
Java.perform(function () {
    var Strange = Java.use("com.example.bbandroid.strange");
    console.log(Strange.ALPHABET.value);
});
~~~

但是字符集合不太对，分析encode传入发现取了输入的长度（v18），然后和输入字符串（v34后面那个是"charAt"）做了异或

![image-20251023224911623.png](http://xherlock.top/usr/uploads/2025/11/526269128.png)

因此前面脚本可以加上个异或30（长度30的输入base64完才是40），解密出来就是正确的base64密文

~~~python
s = [0xA3C8C033, 0x1A1DBFF3, 0xC6B7413B, 0x52865EF1, 0x1E6BCF52, 0xBFCBF9C5, 0xF1627BED, 0x544843F7, 0xD94C85FB, 0x6EF23035]
print(len(s))
new_s = []
for v in s:
    for i in range(32):
        bit = v & 1
        if bit:
            v ^= 0x85B6874F
        v >>= 1
        if bit:
            v |= 0x80000000
    new_s += v.to_bytes(4, "little")
rand = [185, 173, 127, 3, 159, 15, 241, 103, 121, 183, 57, 221, 147, 136, 174, 234, 176, 61, 122, 7, 242, 137, 229, 52, 35, 85, 216, 78, 183, 218, 236, 113, 136, 108, 116, 39, 123, 101, 142, 245]
for i in range(40):
    print(chr(rand[i]^new_s[i]^30), end="")	# VkozQyowSUNwIVXfXsNwI1ScWBlxQ0cxQ0UbW1Cb
~~~

cyberchef解密得到flag为`Y0u_@re_r1ght_r3ver53_is_easy!`

## ez_cython

这题可以看到sub14514传入的是个列表形式

~~~python
# Decompiled with PyLingual (https://pylingual.io)
# Internal filename: ez_cython.py
# Bytecode version: 3.8.0rc1+ (3413)
# Source timestamp: 1970-01-01 00:00:00 UTC (0)

import cy

def str_hex(input_str):
    return [ord(char) for char in input_str]

def main():
    print('欢迎来到猜谜游戏！')
    print("逐个输入字符进行猜测，直到 'end' 结束。")
    while True:
        guess_chars = []
        while True:
            char = input("请输入一个字符（输入 'end' 结束）：")
            if char == 'end':
                break
            if len(char) == 1:
                guess_chars.append(char)
            else:
                print('请输入一个单独的字符。')
        guess_hex = str_hex(''.join(guess_chars))
        if cy.sub14514(guess_hex):
            print('真的好厉害！flag非你莫属')
            break
        print('不好意思，错了哦。')
        retry = input('是否重新输入？(y/n)：')
        if retry.lower() != 'y':
            break
    print('游戏结束')
if __name__ == '__main__':
    main()
~~~

对于这种题目，最佳做法就是类似于hook，实现一个自定义列表和Int

~~~python
import cy

class fakeint(int):
    def __init__(self, dat: int, name=None):
        self.dat = int(dat)
        if name is None:
            self.name = hex(id(self))[-6:]
        else:
            self.name = name

def debugprint(self, dat):
        print(f'[{self.name}]{dat}')

def __add__(self, other):
        r = self.dat + other
        self.debugprint(f'__add__({other}) -> {self.dat} + {other} = {r}')
        return fakeint(r)

def __sub__(self, other):
        r = self.dat - other
        self.debugprint(f'__sub__({other}) -> {self.dat} - {other} = {r}')
        return fakeint(r)

def __mul__(self, other):
        r = self.dat - other
        self.debugprint(f'__mul__({other}) -> {self.dat} * {other} = {r}')
        return fakeint(r)

def __xor__(self, other):
        r = self.dat ^ other
        self.debugprint(f'__xor__({other}) -> {self.dat} ^ {other} = {r}')
        return fakeint(r)

def __and__(self, other):
        r = self.dat & other
        self.debugprint(f'__and__({other}) -> {self.dat} & {other} = {r}')
        return fakeint(r)

def __lshift__(self, other):
        r = self.dat << other
        self.debugprint(f'__lshift__({other}) -> {self.dat} << {other} = {r}')
        return fakeint(r)

def __rshift__(self, other):
        r = self.dat >> other
        self.debugprint(f'__rshift__({other}) -> {self.dat} >> {other} = {r}')
        return fakeint(r)

def __eq__(self, other):
        r = self.dat == other
        self.debugprint(f'__eq__({other}) -> {self.dat} == {other} = {r}')
        return fakeint(r)

def __ne__(self, other):
        r = self.dat != other
        self.debugprint(f'__ne__({other}) -> {self.dat} != {other} = {r}')
        return fakeint(r)

def __repr__(self):
        return f'fakeint({self.dat})'

key_idxs = []

class fakelist(list):
    def __init__(self, dat, name=None):
        super().__init__(dat)
        if name is None:
            self.name = hex(id(self))[-6:]
        else:
            self.name = name

def debugprint(self, dat):
        print(f'[{self.name}] {dat}')

def __getitem__(self, index):
        global key_idxs
        self.debugprint(f'__getitem__({index}), {super().__getitem__(index)}')

if self.name == 'key':
            key_idxs.append(index)

return super().__getitem__(index)

def __setitem__(self, index, value):
        self.debugprint(f'__setitem__({index}, {value})')
        return super().__setitem__(index, value)

def copy(self):
        return fakelist(super().copy(), self.name)

def __eq__(self, other):
        global out
        r = super().__eq__(other)
        self.debugprint(f'__eq__({other}) -> {super().__repr__()} == {other} = {r}')
        out = self
        return r

key = b'SyC10VeRf0RVer'
def ret_key(arg):
    print(f'ret_key({arg})')
    return fakelist([fakeint(x) for x in key], 'key')
cy.QOOQOOQOOQOOOQ.get_key = ret_key
test = b'1'*32
dat = fakelist([fakeint(x) for x in test], 'data')
print(cy.sub14514(dat))
print(key_idxs)
~~~

通过log可以找到加密规律以及密文，同构出来

~~~python
key = list(b'SyC10')
xor = [2654435769, 1013904242, 3668340011, 2027808484, 387276957]
idx = [3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1]
for j in range(5):
	for i in range(32):
		a=((s[(i-1)%32]>>3)^(s[(i+1)%32]<<3))+((s[(i-1)%32]<<2)^(s[(i+1)%32]>>4))
		b=(xor[j]^s[(i+1)%32])+(key[idx[j*32+i]]^s[(i-1)%32])
		s[i%32]=((a^b)+s[i%32])&0xffffffff
~~~

逆向very easy（其实是XXTEA类型，但没必要按照模板了）

~~~python
s = [4108944556, 3404732701, 1466956825, 788072761, 1482427973, 782926647, 1635740553, 4115935911, 2820454423, 3206473923, 1700989382, 2460803532, 2399057278, 968884411, 1298467094, 1786305447, 3953508515, 2466099443, 4105559714, 779131097, 288224004, 3322844775, 4122289132, 2089726849, 656452727, 3096682206, 2217255962, 680183044, 3394288893, 697481839, 1109578150, 2272036063]
key = list(b'SyC10')
xor = [2654435769, 1013904242, 3668340011, 2027808484, 387276957]
idx = [3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 0, 0, 2, 2, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1, 3, 3, 1, 1]
for j in range(4, -1, -1):
    for i in range(31, -1, -1):
        a = ((s[(i - 1) % 32] >> 3) ^ (s[(i + 1) % 32] << 3)) + ((s[(i - 1) % 32] << 2) ^ (s[(i + 1) % 32] >> 4))
        b = (xor[j] ^ s[(i + 1) % 32]) + (key[idx[j * 32 + i]] ^ s[(i - 1) % 32])
        s[i % 32] = (s[i % 32] - (a ^ b)) & 0xffffffff
print(bytes(s).decode())
~~~

## uds

稍微搜一下就可以找到hex文件相关说明：https://blog.csdn.net/qq_42965739/article/details/105163617

直接ida就可以识别文件格式进行反编译，注意STM32要选择ARM小端处理器

观察到最左边函数列表最后一个里调用了TEA函数，往上交叉引用来到一个多个case的函数sub_80043E8，在tea下方还有一个标准rc4

~~~c
int __fastcall sub_80043E8(int a1, int a2, unsigned __int8 *a3, int a4)
{
  int v6; // r0
  int result; // r0
  int v8; // r0
  int v9; // [sp+0h] [bp-20h] BYREF
  int v10; // [sp+4h] [bp-1Ch]

v9 = (int)a3;
  v10 = a4;
  switch ( a2 )
  {
    case 0:
      v6 = *a3;
      switch ( v6 )
      {
        case 1:
          return 0;
        case 2:
        case 3:
          if ( *(_BYTE *)(a1 + 8245) )
            return 0;
          else
            return 51;
        case 4:
          return 0;
        default:
          return 18;
      }
    case 1:
      sub_8003A3C("got ECUReset request of type %x\n", *a3);
      v8 = *a3;
      if ( v8 == 1 || v8 == 3 || v8 == 4 )
        return 0;
      else
        return 18;
    case 2:
      return sub_80024B8(a1, (int (__fastcall **)(int, int, int))a3);
    case 3:
      return sub_80024A0(a1, (int)a3);
    case 4:
      return 0;
    case 5:
      v9 = 0x44332211;
      v10 = 0x88776655;
      return (*((int (__fastcall **)(int, int *, int))a3 + 3))(a1, &v9, 8);
    case 6:
      v9 = 0x44332211;
      v10 = 0x88776655;
      if ( !sub_8104D10(*((_DWORD *)a3 + 1), (int)&v9, *((unsigned __int16 *)a3 + 4)) )
        return 53;
      rc4(*((_DWORD *)a3 + 1), 0x200000A8);
      return 0;
    case 7:
      return sub_81030F4(a1, (int)a3);
    case 8:
      if ( *((_WORD *)a3 + 1) != 0x1234 )
        return 49;
      MEMORY[0x20000000] = 1;
      return 0;
    case 9:
      sub_8003A3C("UDS_SRV_EVT_RequestDownload\r\n");
      MEMORY[0x20000008] = *(_DWORD *)a3;
      sub_8000380(MEMORY[0x20000008], 200);
      result = 0;
      MEMORY[0x20000004] = 0;
      return result;
    case 11:
      sub_8000332(MEMORY[0x20000008] + MEMORY[0x20000004], *(_DWORD *)a3, *((unsigned __int16 *)a3 + 2));
      MEMORY[0x20000004] += *((unsigned __int16 *)a3 + 2);
      sub_8003A3C("UDS_SRV_EVT_TransferData = %d\r\n", MEMORY[0x20000004]);
      return 0;
    case 12:
      sub_8003A3C("UDS_SRV_EVT_RequestTransferExit\r\n");
      return 0;
    case 13:
      sub_8003A3C("server session timed out!\n");
      nullsub_29(a1);
      sub_800335C(a1, &off_8104DEC);
      return 114;
    case 14:
      sub_8003A3C("powering down!\n");
      sub_8004BCC(*a3);
      return 114;
    default:
      sub_8003A3C("Unhandled event: %d\n", a2);
      return 17;
  }
}
~~~

比较关键的是如何定位密文，翻了多篇wp，我总结最佳做法就是翻data数据，本身这种固件就不是很多，可以找一下哪里数据不是很有规律

![image-20251024154117600.png](http://xherlock.top/usr/uploads/2025/11/1021333957.png)

首先看off_8004EA8交叉引用找到下方函数

~~~c
void __noreturn sub_8000398()
{
  _UNKNOWN **i; // r4

for ( i = &off_8004EA8; i < (_UNKNOWN **)&dword_8004EC8; i += 4 )
    ((void (__fastcall *)(_DWORD, void *, void *))((unsigned int)i[3] | 1))(*i, i[1], i[2]);
  sub_80002A0();
}
~~~

可以发现i=&off_8004EA8，那么i[3]指向0x810004C（正好是一个函数），*i是dword_8004EC8，i[1]是0x20000000，i[2]是0x194

~~~c
int __fastcall sub_810004C(char *a1, _BYTE *a2, int a3)
{
  _BYTE *v3; // r4
  unsigned int v4; // r2
  unsigned int v5; // t1
  int v6; // r3
  int v7; // t1
  unsigned int v8; // r2
  unsigned int v9; // t1
  char v10; // t1

v3 = &a2[a3];
  do
  {
    v5 = (unsigned __int8)*a1++;
    v4 = v5;
    v6 = v5 & 0xF;
    if ( (v5 & 0xF) == 0 )
    {
      v7 = (unsigned __int8)*a1++;
      v6 = v7;
    }
    v8 = v4 >> 4;
    if ( !v8 )
    {
      v9 = (unsigned __int8)*a1++;
      v8 = v9;
    }
    while ( --v6 )
    {
      v10 = *a1++;
      *a2++ = v10;
    }
    while ( --v8 )
      *a2++ = 0;
  }
  while ( a2 < v3 );
  return 0;
}
~~~

这个函数是我们熟悉的RLE，第一个参数是要解压的字节，第二个是解压出来的位置，第三个是解压出来的大小

~~~python
def rle_decode_byte(encoded: bytes) -> bytes:
    ip = 0
    decoded = []
    while ip < len(encoded):
        v = encoded[ip]
        ip += 1
        a = v & 0xf
        if a == 0:
            a = encoded[ip]
            if ip < len(encoded):
                ip += 1
        b = v >> 4
        if b == 0:
            b = encoded[ip]
            if ip < len(encoded):
                ip += 1
        while a-1 != 0:
            decoded.append(encoded[ip])
            ip += 1
            a -= 1
        while b-1 != 0:
            decoded.append(0)
            b -= 1
    return bytes(decoded)

# 示例
if __name__ == "__main__":
    sample = bytes.fromhex("01130296880012B014A691FEB9D741AF82CC4EE94747284FD1421052015890D0030090D003021801")
    db = rle_decode_byte(sample)
    print(db.hex())

~~~

解压得到

~~~
00000000000000000000000000000000000088000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000014a691feb9d741af82cc4ee94747284fd10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000010000000010000000090d0030090d00300000000010000000000000000000000000000000000000000000000
~~~

attention！这个开头指向了0x20000000，那么前面`rc4(*((_DWORD *)a3 + 1), 0x200000A8);`中0x200000A8指向的正是上面0xa8开始的数据

结合rc4里检查0字节结尾，我们可以提取出rc4密文

~~~c
unsigned int __fastcall rc4(int a1, int a2)
{
  int v3; // r7
  int v4; // r4
  unsigned int i; // r6
  int v6; // r9
  unsigned int result; // r0

rc4_init(a1);
  LOBYTE(v3) = 0;
  v4 = 0;
  for ( i = 0; ; ++i )
  {
    result = sub_810001E(a2);
    if ( result <= i )
      break;
    v4 = (v4 + 1) % 256;
    v3 = (unsigned __int8)(*(_BYTE *)(4 * v4 + 0x200035A8) + v3);
    v6 = *(_DWORD *)(4 * v4 + 0x200035A8);
    *(_DWORD *)(4 * v4 + 0x200035A8) = *(_DWORD *)(4 * v3 + 0x200035A8);
    *(_DWORD *)(4 * v3 + 0x200035A8) = v6;
    *(_BYTE *)(a2 + i) ^= *(_BYTE *)(4
                                   * (unsigned __int8)(*(_BYTE *)(4 * v4 + 0x200035A8) + *(_BYTE *)(4 * v3 + 0x200035A8))
                                   + 0x200035A8);
  }
  return result;
}
unsigned __int8 *__fastcall sub_810001E(unsigned __int8 *a1)
{
  unsigned __int8 *v1; // r2

v1 = a1 + 1;
  while ( *a1++ )
    ;
  return (unsigned __int8 *)(a1 - v1);
}
~~~

提取密文

~~~python
for i in range(0xa8, len(db)):
    if db[i] == 0:
        break
    print(db[i], end=", ")
~~~

解密

~~~python
from ctypes import c_uint32

def tea_decrypt(r, v, key, delta):
    v0, v1 = c_uint32(v[0]), c_uint32(v[1])
    total = c_uint32(0xC6EF3720+delta*r)
    for i in range(r):
        total.value -= delta
        v0.value += ((v1.value << 4) + key[0]) ^ (v1.value + total.value) ^ ((v1.value >> 5) + key[1])
        v1.value += ((v0.value << 4) + key[2]) ^ (v0.value + total.value) ^ ((v0.value >> 5) + key[3])
    return v0.value, v1.value

k = [0x123, 0x4567, 0x89ab, 0xcdef]
v = [0x11223344, 0x55667788]
delta = 0x61C88647
for i in range(0, len(v), 2):
    v[i:i+2] = tea_decrypt(32, v[i:i+2], k, delta)
# print(list(map(hex, v)))
v = b"".join([int.to_bytes(v[i], byteorder='big', length=4) for i in range(len(v))])
print(v)

def KSA(key):
    """ Key-Scheduling Algorithm (KSA) 密钥调度算法"""
    S = list(range(256))
    j = 0
    for i in range(256):
        j = (j + S[i] + key[i % len(key)]) % 256
        S[i], S[j] = S[j], S[i]
    return S

def PRGA(S):
    """ Pseudo-Random Generation Algorithm (PRGA) 伪随机数生成算法"""
    i, j = 0, 0
    while True:
        i = (i + 1) % 256
        j = (j + S[i]) % 256
        S[i], S[j] = S[j], S[i]
        K = S[(S[i] + S[j]) % 256]
        yield K

def RC4(key, text):
    """ RC4 encryption/decryption """
    S = KSA(key)
    keystream = PRGA(S)
    res = []
    for char in text:
        res.append(char ^ next(keystream))
    return bytes(res)

text = [20, 166, 145, 254, 185, 215, 65, 175, 130, 204, 78, 233, 71, 71, 40, 79, 209]
print(len(text))
print(RC4(v, text))

~~~

得到`W0L000043MB541337`

## logindemo

java层存在大量字符串混淆，解密回填下

~~~python
def dec(s, key):
    s = list(bytes.fromhex(s))
    s[0] ^= 0x7a
    tmp = s[0]
    for i in range(1, len(s)):
        s[i] ^= tmp ^ (key ^ 17)
        tmp = s[i]
    return bytes(s)

def dec1(s, key):
    s = list(bytes.fromhex(s))
    s[0] ^= 73
    tmp = s[0]
    for i in range(1, len(s)):
        s[i] ^= tmp ^ (key ^ 15)
        tmp = s[i]
    return bytes(s)

def dec2(s, key):
    s = list(bytes.fromhex(s))
    s[0] ^= 0x76
    tmp = s[0]
    for i in range(1, len(s)):
        s[i] ^= tmp ^ (key ^ 0x77)
        tmp = s[i]
    return bytes(s)

print(dec("19525c1d15434752434257151d4a464f5e425b545c4b43585f1e3d56485e4c585c", 0x4f).decode())
print(dec("1e5f43796251534c5e03145f43", 0x4f).decode())
print(dec("19525c1d154347524342571515565e1d145f43796251534c5e", 0x4f).decode())
print(dec("094c46786953575e5d", 0x4f).decode())
print(dec1("1a050207", 26).decode())
print(dec1("7115151515151515", 26).decode())
print(dec1("210915115f00150e160c0a141c020a14130d0d111d161c1c1c", 26).decode())
print(dec1("324c591a191d520d0d", 26).decode())
print(dec1("6b1b1b47040715110d0803530d0d", 26).decode())
print(dec1("6b4a", 26).decode())
print(dec1("28041509101f170008131454500c0914", 26).decode())
print(dec1("6656161d1b12", 26).decode())
print(dec1("1a2f1b1c1a00141202", 26).decode())
print(dec1("ae66295b7b2a474710425d20686c21524628727b0b665f3c745234714034604b21adc74c257c4b29757b0b665f3c7452347d6818645215", 26).decode())
print(dec2("9019552134421b0b4821394f153f44190d7d1319720b0c48271f522e0355391d59ef6aa3247b331f4c310b48231a572e3f6935095c350a7c173d7d21286d27256c2a1e7d00105f2d0d5c31167ec5ad294a022442cb", 20).decode())
~~~

~~~
com.example.myapplication.MESSAGE
dex_class.dex
com.example.emm.dex_class
say_hello
SCTF
88888888
http://47.109.106.62:9090
{"name":"
","password":"
"}
application/json
/login
Signature
用户已存在！或密码少于6位了或密码错误
未连接网络或服务器关闭!(请直接在平台提交正确的用户名+密码)
~~~

回填得到

~~~java
package com.example.sctf1;

import android.content.Intent;
import android.os.Build.VERSION;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;
import androidx.appcompat.app.AppCompatActivity;
import dalvik.system.DexClassLoader;
import java.io.File;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
import java.nio.file.Files;
import java.nio.file.OpenOption;
import java.util.Objects;
import okhttp3.Call;
import okhttp3.MediaType;
import okhttp3.OkHttpClient;
import okhttp3.Request.Builder;
import okhttp3.Request;
import okhttp3.RequestBody;
import okhttp3.Response;

public class LoginActivity extends AppCompatActivity {
    static final boolean $assertionsDisabled;
    public static final String EXTRA_MESSAGE;
    public Button btn_login;
    public EditText edit_password;
    public EditText edit_username;
    public String phone_number;
    public String secretKey;
    public String string1;

static {
        LoginActivity.EXTRA_MESSAGE = "com.example.myapplication.MESSAGE";
    }

public void login(View view) throws IOException, ClassNotFoundException, IllegalAccessException, InstantiationException, NoSuchMethodException, InvocationTargetException {
        InputStream inputStream0 = this.getAssets().open("dex_class.dex");
        File dexfile = new File(this.getCacheDir(), "dex_class.dex");
        OutputStream outputStream = Build.VERSION.SDK_INT < 26 ? null : Files.newOutputStream(dexfile.toPath(), new OpenOption[0]);
        byte[] buffer = new byte[0x400];
        while(true) {
            int v = inputStream0.read(buffer);
            if(v <= 0) {
                goto label_10;
            }

if(outputStream == null) {
                break;
            }

outputStream.write(buffer, 0, v);
        }

throw new AssertionError();
    label_10:
        inputStream0.close();
        if(outputStream != null) {
            outputStream.close();
            Class class0 = new DexClassLoader(dexfile.getAbsolutePath(), this.getCacheDir().getAbsolutePath(), null, this.getClassLoader()).loadClass("com.example.emm.dex_class");
            Object object0 = class0.newInstance();
            Method method0 = class0.getDeclaredMethod("say_hello", String.class);
            method0.setAccessible(true);
            this.btn_login = (Button)this.findViewById(id.btn_login);
            this.btn_login.setOnClickListener((View v) -> new Thread(new com.example.sctf1.LoginActivity.1(this, method0, object0)).start());
            return;
        }

throw new AssertionError();

class com.example.sctf1.LoginActivity.1 implements Runnable {
            com.example.sctf1.LoginActivity.1(Method method0, Object object0) {
            }

@Override
            public void run() {
                LoginActivity.this.edit_username = (EditText)LoginActivity.this.findViewById(id.edit_username);
                LoginActivity.this.edit_password = (EditText)LoginActivity.this.findViewById(id.edit_password);
                String s = LoginActivity.this.edit_username.getText().toString();
                String s1 = "SCTF";
                String s2 = LoginActivity.this.edit_password.getText().toString();
                String s3 = "88888888";
                LoginActivity.this.phone_number = Getstr.getNothing(LoginActivity.transform(GoodCard.anything((s + s2))));
                try {
                    LoginActivity.this.secretKey = Objects.requireNonNull(this.val$method.invoke(this.val$dexlib_obj, LoginActivity.this.phone_number)).toString();
                }
                catch(IllegalAccessException | InvocationTargetException illegalAccessException0) {
                    throw new RuntimeException(illegalAccessException0);
                }

String s4 = "http://47.109.106.62:9090";
                String s5 = "{\"name\":\"" + "\",\"password\":\"" + s3 + "\"}";
                String s6 = SignatureGenerator.generateSignature((LoginActivity.this.secretKey + (s4 + s5)));
                RequestBody requestBody0 = RequestBody.create(MediaType.parse("application/json"), s5);
                Request request0 = new Builder().url(s4 + "/login").post(requestBody0).addHeader("Signature", s6).build();
                Call call0 = new OkHttpClient().newCall(request0);
                Response response = null;
                try {
                    try {
                        response = call0.execute();
                        LoginActivity.this.string1 = response.body().string();
                        if(response.isSuccessful()) {
                            Intent intent = new Intent(LoginActivity.this, SecondActivity.class);
                            LoginActivity.this.startActivity(intent);
                        }
                        else {
                            String s7 = "用户已存在！或密码少于6位了或密码错误";
                            Toast.makeText(LoginActivity.this, s7, 0).show();
                            goto label_37;
                        label_28:
                            exception0.printStackTrace();
                            com.example.sctf1.LoginActivity.1.1 loginActivity$1$10 = new Runnable() {
                                @Override
                                public void run() {
                                    if(LoginActivity.this.string1 == null) {
                                        LoginActivity.this.string1 = "未连接网络或服务器关闭!(请直接在平台提交正确的用户名+密码)";
                                    }

Toast.makeText(LoginActivity.this, LoginActivity.this.string1, 0).show();
                                }
                            };
                            LoginActivity.this.runOnUiThread(loginActivity$1$10);
                            if(response != null) {
                                goto label_38;
                            }

return;
                        }

goto label_37;
                    }
                    catch(Throwable throwable0) {
                    }
                }
                catch(Exception exception0) {
                    goto label_28;
                }

if(response != null) {
                    response.close();
                }

throw throwable0;
            label_37:
                if(response != null) {
                label_38:
                    response.close();
                }
            }
        }
    }

@Override  // androidx.fragment.app.FragmentActivity
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        this.setContentView(layout.activity_login);
    }

public static String transform(String input) {
        StringBuilder result = new StringBuilder();
        char[] arr_c = input.toCharArray();
        for(int v = 0; v < arr_c.length; ++v) {
            result.append(arr_c[v] * 100);
        }
        return result.toString();
    }
}
~~~

加密逻辑为`GoodCard.anything` -> `LoginActivity.transform` -> `Getstr.getNothing` -> `com.example.emm.dex_class.say_hello`

逆向开始，第一个很明显做了个循环异或

~~~java
public String say_hello(String original) {
        return dex_class.xorEncryptDecrypt(original, "S0C0Z0Y0W");
    }

public static String xorEncryptDecrypt(String input, String key) {
    StringBuilder output = new StringBuilder();
    for(int i = 0; i < input.length(); ++i) {
        output.append(((char)(input.charAt(i) ^ key.charAt(i % key.length()))));
    }

return output.toString();
}
~~~

第二个Getstr.getNothing在so里，有点复杂直接hook看下

~~~
Getstr.getNothing is called: str=9800970098009700980097009800970098009700980097009800970098009700
Getstr.getNothing result=5045094413585467707853882780759531095633013117065857519178684771275364807413082472406228120229563489108632252785636645670872698819224972890047487581811332254680241130547827260310260156274356362590066709127261486610962436177824392026615913358088949515401041129200535045603908296850986535932167342047836952081593168351978891009244883210600480512457372948532264723914384241781541613968653412830343762347260625142972051715030907876003790185293489419779271045262824394366532040730447855614903756780018616574288028378761167000741451345026574342587808243860484045368480622683879039748064603874478923277460189909112074820466
Getstr.getNothing is called: str=9800970098009700980097009800970098009700980097009800970098009700
Getstr.getNothing result=5045094413585467707853882780759531095633013117065857519178684771275364807413082472406228120229563489108632252785636645670872698819224972890047487581811332254680241130547827260310260156274356362590066709127261486610962436177824392026615913358088949515401041129200535045603908296850986535932167342047836952081593168351978891009244883210600480512457372948532264723914384241781541613968653412830343762347260625142972051715030907876003790185293489419779271045262824394366532040730447855614903756780018616574288028378761167000741451345026574342587808243860484045368480622683879039748064603874478923277460189909112074820466
Getstr.getNothing is called: str=9800970098009700980097009800970098009700980097009800970098009700
Getstr.getNothing result=5045094413585467707853882780759531095633013117065857519178684771275364807413082472406228120229563489108632252785636645670872698819224972890047487581811332254680241130547827260310260156274356362590066709127261486610962436177824392026615913358088949515401041129200535045603908296850986535932167342047836952081593168351978891009244883210600480512457372948532264723914384241781541613968653412830343762347260625142972051715030907876003790185293489419779271045262824394366532040730447855614903756780018616574288028378761167000741451345026574342587808243860484045368480622683879039748064603874478923277460189909112074820466
Getstr.getNothing is called: str=98009700
Getstr.getNothing result=2233501535873032438823121598204299505434529114931768813605420613081008238848241351384976360380040680898472734338437713527212987244461988210103109572904067199730297662538130740444958693897705543982767205853162434482670047472191376691771728478745450434840193243358407260246576449832102844937592858139016490868660365496774265956046594638227737863254485349509678643684737220238028223704498869369480140313776541597313319284504066160649959820155991542479147585714027746619950684145658878413672779565168489187038976612610030868825988176731507778054179818006517603863182124465810106800361331579499382340133899622159252658860
Getstr.getNothing is called: str=9700
Getstr.getNothing result=13904806999322946098738724391470420861218239226803900906903126921611226597677267491411725201453899947887238728859042520601315993658447283397644650078927695405554954717254946789808519906028094494520846898353464681798834920500140475141818409571951479007870285426630324534583299906745841755480715970390702130537479135132978815683732301317073599115508986658255646557196880732715768178790334868529001059725119336388131629576390739424170336637855522394851298127307107888633456592938110815639203198941093690346266870396632427968296171952101897929685083237976646419550108479566471911042499480157215212085802929831244889653802
~~~

测试了几轮发现输出长度相同，而且非常大是个数字字符串，猜测类似RSA

在so里搜索找到了三处数字

~~~
106697219132480173106064317148705638676529121742557567770857687729397446898790451577487723991083173010242416863238099716044775658681981821407922722052778958942891831033512463262741053961681512908218003840408526915629689432111480588966800949428079015682624591636010678691927285321708935076221951173426894836169
144819424465842307806353672547344125290716753535239658417883828941232509622838692761917211806963011168822281666033695157426515864265527046213326145174398018859056439431422867957079149967592078894410082695714160599647180947207504108618794637872261572262805565517756922288320779308895819726074229154002310375209
114514114514114514114514114514114514114514114514
~~~

前两个都是质数，第三个不清楚，尝试rsa解密发现解出来的对应

~~~python
import gmpy2
# 已知参数
p = 106697219132480173106064317148705638676529121742557567770857687729397446898790451577487723991083173010242416863238099716044775658681981821407922722052778958942891831033512463262741053961681512908218003840408526915629689432111480588966800949428079015682624591636010678691927285321708935076221951173426894836169
q = 144819424465842307806353672547344125290716753535239658417883828941232509622838692761917211806963011168822281666033695157426515864265527046213326145174398018859056439431422867957079149967592078894410082695714160599647180947207504108618794637872261572262805565517756922288320779308895819726074229154002310375209
e = 65537
c = 13904806999322946098738724391470420861218239226803900906903126921611226597677267491411725201453899947887238728859042520601315993658447283397644650078927695405554954717254946789808519906028094494520846898353464681798834920500140475141818409571951479007870285426630324534583299906745841755480715970390702130537479135132978815683732301317073599115508986658255646557196880732715768178790334868529001059725119336388131629576390739424170336637855522394851298127307107888633456592938110815639203198941093690346266870396632427968296171952101897929685083237976646419550108479566471911042499480157215212085802929831244889653802
# 计算模数 n 和 φ(n)
n = p * q
phi = (p - 1) * (q - 1)
# 计算私钥 d
d = gmpy2.invert(e, phi)
# 解密密文得到明文
m = pow(c, d, n)
print(m)	# 9700
~~~

第三处直接按照00划分字符串即可，肉眼就能分开了

~~~java
public static String transform(String input) {
    StringBuilder result = new StringBuilder();
    char[] arr_c = input.toCharArray();
    for(int v = 0; v < arr_c.length; ++v) {
        result.append(arr_c[v] * 100);
    }
    return result.toString();
}
~~~

最后一个ai分析就是把后一半字符串和前一半字符串交叉拼接

~~~java
package com.example.sctf1;

public class GoodCard {
    public static String anything(String str) {
        char[] arr_c = str.toCharArray();
        int to = arr_c.length - 1;
        GoodCard.perfect(arr_c, 0, to, (to + 1) / 2);
        return String.valueOf(arr_c);
    }

public static void circle(char[] a, int from, int i, int n2) {
        for(int k = i * 2 % n2; k != i; k = k * 2 % n2) {
            char temp = a[i + from];
            a[i + from] = a[k + from];
            a[k + from] = temp;
        }
    }

public static void perfect(char[] a, int from, int to, int n) {
        if(from >= to) {
            return;
        }

if(from == to - 1) {
            MyMath.swap(a, from, to);
            return;
        }

int k = 0;
        int p = n * 2 + 1;
        int k_3;
        for(k_3 = 1; k <= p / 3; k_3 *= 3) {
            ++k;
            p /= 3;
        }

int m = (k_3 - 1) / 2;
        GoodCard.rightCircle(a, from + m, from + n + m - 1, m);
        int i = 0;
        for(int t = 1; i < k; t *= 3) {
            GoodCard.circle(a, from - 1, t, m * 2 + 1);
            ++i;
        }

GoodCard.perfect(a, m * 2 + from, to, (to - (m * 2 + from) + 1) / 2);
    }

public static void reverse(char[] a, int from, int to) {
        while(from < to) {
            MyMath.swap(a, from, to);
            ++from;
            --to;
        }
    }

public static void rightCircle(char[] a, int from, int to, int n) {
        int m = n % (to - from + 1);
        GoodCard.reverse(a, to - m + 1, to);
        GoodCard.reverse(a, from, to - m);
        GoodCard.reverse(a, from, to);
    }
}
~~~

解密脚本如下

~~~python
from base64 import b64decode
import gmpy2

secretkey = list(b64decode(b"YgNxAGMDawJjZQR6B2IGYANiYQVxAG8JYQhkawZ3AW8JagluYAN2Am4GbQRmZAR6AWwBbQNlZANxCWsCaAlhZQRxAm4CbgRkZgl1AWIIawhmYAh3B2MBaAJmaghwAWoEbwliYgBwCWkIbQNuawlyAW0FYAhuYgB1Am8CawRuYAJxCG8CbgRgZAF3BWgJYQlhZwFzAGsJbwFlagV0CW0FawhgawNyCGkAbQNjYQh3Bm4FbwNkYAJ6A2IDaANmYwl2A2sEaQRlaglyAm0HaARmYQZ7AWsIbwZhYwB0B2sIYAlvYgN2AWsHYQJiZAByAGgDYANmYQB0BmwJYABhZwl1CGkEaQlmZQJzBm0IYQdjYwh6A20BbwVhZQl3CGoIaABmYAN1AW0IbQFvYAN0B2gFYAVhZAF1BW8HYQZvagZ6A20CaAhjZAl6BWkCYQhvZAN1AGgDaQJhYQZzCW8BYABjZAN0AW8BbQViZwVyA28JagJiagd1CGgDawhvYQJwB28GagNvYwd6AG0BYQFuawVyBGoBaQFkZAV1A24HbgdlYgd1AWwIYQNkagV6BW0DbglvZAl0A2kFaAhjawB3AmwAbwZgZwV3BGMEaQllYAhzAGsEYAFhYAJ6Bm4GaQdkagl6A20DawdkZgd3BW0JbgRgYQZyB2kJbANnZgdwA2gFaQFnYAh7BW4GbAdhYgd7Bm4DawJmawN0CWMDbgJgYwh0AmwGYQRiYQN2BmIGaAVkYwh2BmsDbAFhaglzB2kAbQBjZwJ1BGkCaghiZgByAWkJaAhhagZ3AG0JaghiYQVwAmMIaAFjYgVzBGh0dHA6Ly80Ny4xMDkuMTA2LjYyOjkwOTB7Im5hbWUiOiJTQ1RGIiwicGFzc3dvcmQiOiI4ODg4ODg4OCJ9").split(b"http")[0])
xor = b"S0C0Z0Y0W"
for i in range(len(secretkey)):
    secretkey[i] ^= xor[i%len(xor)]
secretkey = int(bytes(secretkey).decode())
# 已知参数
p = 106697219132480173106064317148705638676529121742557567770857687729397446898790451577487723991083173010242416863238099716044775658681981821407922722052778958942891831033512463262741053961681512908218003840408526915629689432111480588966800949428079015682624591636010678691927285321708935076221951173426894836169
q = 144819424465842307806353672547344125290716753535239658417883828941232509622838692761917211806963011168822281666033695157426515864265527046213326145174398018859056439431422867957079149967592078894410082695714160599647180947207504108618794637872261572262805565517756922288320779308895819726074229154002310375209
e = 65537
# 计算模数 n 和 φ(n)
n = p * q
phi = (p - 1) * (q - 1)
# 计算私钥 d
d = gmpy2.invert(e, phi)
# 解密密文得到明文
m = str(pow(secretkey, d, n))
m = list(map(int, m.split("00")[:-1]))
print(len(m), bytes(m).decode())
for i in range(len(m)//2):
    print(chr(m[i*2+1])+chr(m[i*2]), end="")
print(chr(m[-1]))
~~~

得到`wysth7mu5j6hg`

## SGAME

字符串里发现了Lua5.4，十之八九是常见的魔改lua

主函数存在大量字符串解密，可以结合动调找逻辑，找到了open game文件、ptrace反调试（检测到调试就反转key）、对game内容rc4解密操作（解密完可以看出来大概是luac文件，但是头部魔改成了ELF，同时还有其他地方可能是opcode做了修改，因为没法反编译）

全网没啥wp，烧卖写的很简略、sekai写的又看不懂

但是基本能确定魔改，那么编译一份lua5.4（注意要去src里makefile把优化关掉，不然优化过的函数对不上），然后用xia0ji神的luminia push了一份符号表，再回到SGAME pull可以发现基本全部还原（可以在上一个bindiff就基本全还原，0.9 sim+0.9 con），没还原的可以确定是魔改了

魔改的点一个个来看

1. 删除了临时文件的创建，估计是为了防止非预期

~~~c
__int64 __fastcall sub_5555555837F9(__int64 a1)
{
  int v1; // ecx
  int v2; // r8d
  int v3; // r9d
  char s[24]; // [rsp+20h] [rbp-20h] BYREF
  unsigned __int64 v6; // [rsp+38h] [rbp-8h]

v6 = __readfsqword(0x28u);
  if ( !pclose(s) )
    luaL_error(
      a1,
      (unsigned int)"unable to generate a unique filename",
      (unsigned int)"unable to generate a unique filename",
      v1,
      v2,
      v3);
  lua_pushstring(a1, (__int64)s);
  return 1LL;
}
~~~

~~~c
__int64 __fastcall os_tmpname(__int64 a1)
{
  int v1; // ecx
  int v2; // r8d
  int v3; // r9d
  int fd; // [rsp+1Ch] [rbp-34h]
  char templatea[40]; // [rsp+20h] [rbp-30h] BYREF
  unsigned __int64 v7; // [rsp+48h] [rbp-8h]

v7 = __readfsqword(0x28u);
  strcpy(templatea, "/tmp/lua_XXXXXX");
  fd = mkstemp64(templatea);
  if ( fd == -1 )
    luaL_error(
      a1,
      (unsigned int)"unable to generate a unique filename",
      (unsigned int)"unable to generate a unique filename",
      v1,
      v2,
      v3);
  close(fd);
  lua_pushstring(a1, templatea);
  return 1LL;
}
~~~

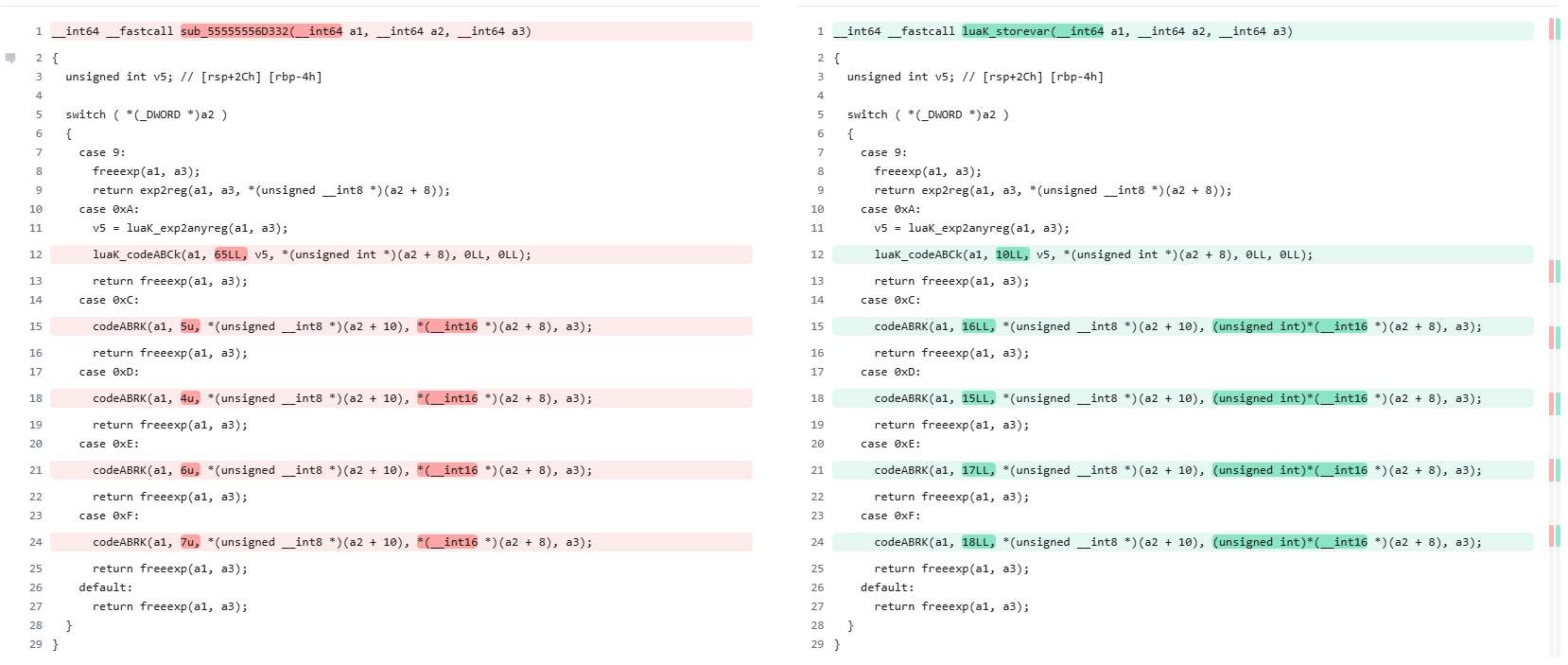

2. luaK_storevar下面的数字魔改

![image-20251030175743601.png](http://xherlock.top/usr/uploads/2025/11/3833392054.png)

3. loadString

~~~c
__int64 __fastcall loadString(__int64 a1, __int64 a2)
{
  __int64 StringN; // [rsp+18h] [rbp-8h]

StringN = loadStringN(a1, a2);
  if ( !StringN )
    error(a1, "bad format for constant string");
  return StringN;
}
~~~

~~~c
__int64 __fastcall sub_555555594965(__int64 *a1, __int64 a2)
{
  __int64 v2; // rcx
  int v3; // r8d
  int v4; // r9d
  unsigned __int64 v5; // rax
  unsigned __int64 i; // [rsp+10h] [rbp-20h]
  __int64 v8; // [rsp+18h] [rbp-18h]

v8 = loadStringN(a1, a2);
  if ( !v8 )
    error((__int64)a1, (int)"bad format for constant string", (__int64)"bad format for constant string", v2, v3, v4);
  if ( *(_BYTE *)(v8 + 11) == 0xFF )
    v5 = *(_QWORD *)(v8 + 16);
  else
    v5 = *(unsigned __int8 *)(v8 + 11);
  for ( i = 0LL; i < v5; ++i )
    *(_BYTE *)(v8 + 24 + i) = *(_BYTE *)(v8 + 24 + i);
  return v8;
}
~~~

4. io_popen，这里应该是不再像原来lua那样读取参数文件，而是直接打开硬编码的game文件
5. dumpString，貌似多加了一处复制

~~~c
void __fastcall sub_555555575E39(__int64 a1, __int64 a2)
{
  size_t v2; // rax
  size_t i; // [rsp+10h] [rbp-20h]
  size_t size; // [rsp+18h] [rbp-18h]
  _BYTE *ptr; // [rsp+28h] [rbp-8h]

if ( a2 )
  {
    if ( *(_BYTE *)(a2 + 11) == 0xFF )
      v2 = *(_QWORD *)(a2 + 16);
    else
      v2 = *(unsigned __int8 *)(a2 + 11);
    size = v2;
    ptr = malloc(v2);
    for ( i = 0LL; i < size; ++i )
      ptr[i] = *(_BYTE *)(a2 + 24 + i);
    dumpSize(a1, size + 1);
    dumpBlock(a1, ptr, size);
    free(ptr);
  }
  else
  {
    dumpSize(a1, 0LL);
  }
}
~~~

6. luaG_traceexec里的luaP_opmodes不一样
7. funcnamefromcode没太看懂
8. checkHeader（开头从Lua变成了LF\x7F）
9. luaU_undump和f_parser（第一字节从0x1b变为E）
10. luaV_execute魔改了字节case

其中最后一个魔改是最关键的，Lua5.4的源码相比前几版做了改进，通过计算偏移来实现case跳转而非以前的直接switch-case，这也导致很难区分case

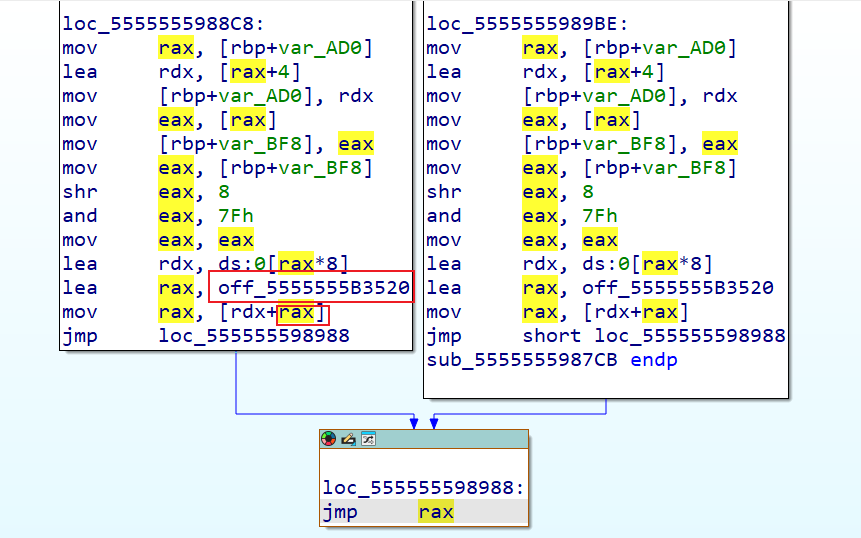

但是经过观察发现可以借助它的偏移来计算opcode位置，具体如下：off_5555555B3520是地址集合，而rax是偏移值

![image-20251030215638013.png](http://xherlock.top/usr/uploads/2025/11/3087758827.png)

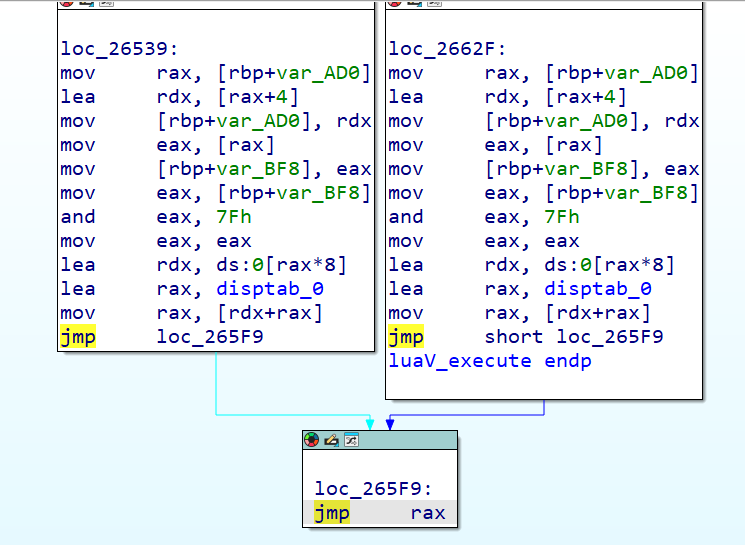

正好对应源码如下disptab_0

![image-20251030215731570.png](http://xherlock.top/usr/uploads/2025/11/2148748099.png)

我们直接猜测出题人没有魔改代码（也就是说排完序后的地址魔改的和源码都是对应的），只是修改了原本的case值，那么可以借助跳转地址在所有地址（已排好序）中的位置来确定opcode映射

~~~python
game_case = [0x0000555555599387, 0x000055555559959F, 0x0000555555599867, 0x0000555555599AC1, 0x0000555555599CD6, 0x0000555555599F8C, 0x000055555559A2F2, 0x000055555559A5EC, 0x000055555559A89F, 0x000055555559AAB3, 0x000055555559AD3E, 0x000055555559AEF8, 0x000055555559B178, 0x000055555559B3F8, 0x000055555559B679, 0x000055555559B94C, 0x000055555559BB94, 0x000055555559BD90, 0x000055555559C05B, 0x000055555559C1F2, 0x000055555559C389, 0x000055555559C520, 0x000055555559C6A4, 0x000055555559C825, 0x000055555559CAA5, 0x000055555559CD25, 0x000055555559CFA6, 0x000055555559D279, 0x000055555559D4C1, 0x000055555559D6BD, 0x000055555559D988, 0x000055555559DB69, 0x000055555559DD4A, 0x000055555559E114, 0x000055555559DF2B, 0x000055555559E2F7, 0x000055555559E474, 0x000055555559E5FE, 0x000055555559E797, 0x000055555559E9BE, 0x000055555559EB7C, 0x000055555559EC8B, 0x000055555559EDAB, 0x000055555559EF24, 0x000055555559F029, 0x000055555559F117, 0x000055555559F1CE, 0x000055555559F35D, 0x000055555559F598, 0x000055555559F7D3, 0x000055555559F925, 0x000055555559FAC5, 0x000055555559FCEB, 0x000055555559FF11, 0x00005555555A0137, 0x0000555555598908, 0x00005555555989FB, 0x0000555555598AD4, 0x0000555555598BB6, 0x0000555555598CAD, 0x0000555555598DCF, 0x0000555555598E87, 0x0000555555598F47, 0x0000555555598FFF, 0x00005555555990E9, 0x0000555555599204, 0x00005555555A035D, 0x00005555555A049E, 0x00005555555A064D, 0x00005555555A07B4, 0x00005555555A0945, 0x00005555555A0B28, 0x00005555555A0C36, 0x00005555555A0E00, 0x00005555555A0FF3, 0x00005555555A10FF, 0x00005555555A119D, 0x00005555555A12AC, 0x00005555555A13D8, 0x00005555555A1663, 0x00005555555A17F6, 0x00005555555A1910, 0x00005555555A1A37]
sorted_game_case = sorted(game_case)
game_case_id = [sorted_game_case.index(i) for i in game_case]
real_case = [0x0000000000026576, 0x0000000000026669, 0x0000000000026742, 0x0000000000026824, 0x000000000002691B, 0x0000000000026A3B, 0x0000000000026AF3, 0x0000000000026BB3, 0x0000000000026C6B, 0x0000000000026D55, 0x0000000000026E70, 0x0000000000026FF3, 0x000000000002720B, 0x00000000000274D3, 0x000000000002772E, 0x0000000000027943, 0x0000000000027BF9, 0x0000000000027F5F, 0x000000000002825A, 0x000000000002850D, 0x000000000002871F, 0x00000000000289AA, 0x0000000000028B64, 0x0000000000028DE4, 0x0000000000029061, 0x00000000000292E2, 0x00000000000295B5, 0x00000000000297FD, 0x00000000000299F9, 0x0000000000029CC4, 0x0000000000029E5B, 0x0000000000029FF2, 0x000000000002A189, 0x000000000002A30D, 0x000000000002A48E, 0x000000000002A70E, 0x000000000002A98B, 0x000000000002AC0C, 0x000000000002AEDF, 0x000000000002B127, 0x000000000002B323, 0x000000000002B5EE, 0x000000000002B7CF, 0x000000000002B9B0, 0x000000000002BD7A, 0x000000000002BB91, 0x000000000002BF5D, 0x000000000002C0DD, 0x000000000002C26A, 0x000000000002C406, 0x000000000002C62D, 0x000000000002C7EB, 0x000000000002C8FA, 0x000000000002CA1A, 0x000000000002CB93, 0x000000000002CC98, 0x000000000002CD86, 0x000000000002CE38, 0x000000000002CFC5, 0x000000000002D1FE, 0x000000000002D437, 0x000000000002D587, 0x000000000002D725, 0x000000000002D949, 0x000000000002DB6D, 0x000000000002DD91, 0x000000000002DFB5, 0x000000000002E0F4, 0x000000000002E2A1, 0x000000000002E408, 0x000000000002E59C, 0x000000000002E785, 0x000000000002E896, 0x000000000002EA66, 0x000000000002EC59, 0x000000000002ED65, 0x000000000002EE06, 0x000000000002EF1B, 0x000000000002F047, 0x000000000002F2D0, 0x000000000002F464, 0x000000000002F57E, 0x000000000002F6A5]
sorted_real_case = sorted(real_case)
real_case_id = [sorted_real_case.index(i) for i in real_case]
print(game_case_id)
print(real_case_id)
~~~

值如下，很明显SGAME把0-10对应的opcode往后移动了

~~~
[11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 45, 44, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82]
[0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 45, 44, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82]
~~~

可以直接修改unluac的，但我不知道怎么改了，官方wp也没了，网上的又没学会呜呜

## ezgo

拿到题目后不管是调试还是跑都会报错，先去看主函数逻辑

去符号的go一般拉到最底下找主函数

~~~c
__int64 __golang sub_4B1680(__int64 a1, char **a2, int a3, int a4, int a5, int a6, int a7, int a8, int a9)
{
  // [COLLAPSED LOCAL DECLARATIONS. PRESS NUMPAD "+" TO EXPAND]

if ( (unsigned __int64)&retaddr <= *(_QWORD *)(v9 + 16) )
LABEL_8:
    sub_46AC20(a1, (int)a2, a3, a4, a5, a6, a7, a8, a9, v35, v38);
  v10 = qword_594118;
  if ( !qword_594118 )
  {
    a2 = &off_4FEA28;
    LODWORD(a1) = runtime_gopanic((unsigned int)&RTYPE_string, (unsigned int)&off_4FEA28, a3, a4, a5, a6, a7, a8, a9);
    goto LABEL_8;
  }
  v11 = sub_4A5C60(qword_594110, qword_594118, (unsigned int)&unk_4FE8D0, 1, 0, -1, a7, a8, a9);
  v17 = strings_Join(v11, v10, v12, 0, 0, v13, v14, v15, v16);
  v46 = sub_4B09E0(v17, v10, v18, 0, 0, v19, v20, v21, v22);
  v45 = v23;
  runtime_chanrecv1(qword_593F08, 0LL);
  v24 = (int)off_58F1C0;                        // 密文
  if ( cmp((unsigned int)&off_4FF360, v46, v10, v45, (_DWORD)off_58F1C0, qword_58F1C8, qword_58F1D0, v25, v26, v35, v38) )
  {
    v47[0] = &RTYPE_string;
    v47[1] = &off_4FEA38;
    return fmt_Fprintln((unsigned int)off_4FF328, qword_593F38, (unsigned int)v47, 1, 1, v28, v29, v30, v31, v36, v39);
  }
  else
  {
    v48[0] = &RTYPE_string;
    v48[1] = runtime_convTstring(qword_594110, qword_594118, v27, v45, v24, v28, v29, v30, v31, v36, v39);
    return fmt_Fprintf(
             (unsigned int)off_4FF328,
             qword_593F38,
             (unsigned int)"congratulations, the flag is syclover{%s}\n",
             42,
             (unsigned int)v48,
             1,
             1,
             v32,
             v33,
             v37,
             v40,
             v41,
             v42,
             v43,
             v44);
  }
}
~~~

> 这个题目学到了个招数，出现`call analysis failed`时候在出问题的call函数调用上按下Y键，删除函数类型定义，此时当前函数就可以正确反编译，参考来自https://hex-rays.com/blog/igors-tip-of-the-week-148-fixing-call-analysis-failed
>
> 这个问题主要原因是ida没有正确识别传参导致的
>
> 如果删除定义还不对，那就根据实际传参数目减少定义里的数目（对这道题go来说）

关注到sub_4B1520函数里出现了flag字符串，调用了flag__ptr_FlagSet_Var函数，查看可知flag是个参数

~~~
(base) xxx:/mnt/d/ida9/dbgsrv$ ./sycgogogo -flag
flag needs an argument: -flag
Usage of ./sycgogogo:
  -flag string
        your flag
~~~

随便输一些字符发现有长度要求

~~~
(base) xxx:/mnt/d/ida9/dbgsrv$ ./sycgogogo -flag aaaa
panic: runtime error: slice bounds out of range [:16] with length 4
~~~

16？再结合密文64字节猜测是16倍数，输入64字节此时不在报错，而是返回GG（flag不对）

~~~
(base) xxx:/mnt/d/ida9/dbgsrv$ ./sycgogogo -flag aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
GG...
~~~

在ida debugger选项中添加参数`-flag aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa`进行调试，然后发现跑不起来，还没搞懂原因反正接收了一堆异常，调试非常艰难，中间报错被杀死很多次

sub_4B1520中发现注册了6个goroutine

~~~c
v18[0] = off_4E00B0;
  v18[1] = off_4E00B8;
  v18[2] = off_4E00C0;
  v18[3] = off_4E00A8;
  v18[4] = &off_4E00C8;
  v18[5] = &off_4E00D0;
  for ( i = 0; i < 6; i = v17 + 1 )
  {
    v17 = i;
    sub_43EF20(v18[i], a2, v18[i], a4, a5, a6, a7, a8, (_DWORD)a9);
  }
~~~

~~~
.rodata:00000000004E00A8 off_4E00A8      dq offset sub_4AEA40    ; DATA XREF: sub_4B1520+36↑o
.rodata:00000000004E00B0 off_4E00B0      dq offset sub_4AECE0    ; DATA XREF: sub_4B1520+12↑o
.rodata:00000000004E00B8 off_4E00B8      dq offset sub_4AEE40    ; DATA XREF: sub_4B1520+1E↑o
.rodata:00000000004E00C0 off_4E00C0      dq offset sub_4AEFC0    ; DATA XREF: sub_4B1520+2A↑o
.rodata:00000000004E00C8 off_4E00C8      dq offset sub_4AF220    ; DATA XREF: sub_4B1520+42↑o
.rodata:00000000004E00D0 off_4E00D0      dq offset sub_4AF2C0    ; DATA XREF: sub_4B1520+4E↑o
~~~

第一个敏感的话能发现sub_4892C0调用的正是sys_ptrace（101），根据结果如果没有反调试就调用sub_4AE9C0，里面先对RC4密钥做移位处理（先全部逆序、再后12位逆序、最后前四位逆序），然后RC4加密了密文（sub_4AE9C0）

~~~c
__int64 __golang sub_4AECE0(
        __int64 a1,
        __int64 a2,
        __int64 a3,
        __int64 a4,
        __int64 a5,
        __int64 a6,
        __int64 a7,
        __int64 a8,
        __int64 a9)
{
  __int64 v9; // r14
  __int64 v10; // rax
  __int64 v11; // rcx
  __int64 v12; // r8
  __int64 v13; // r9
  __int64 v14; // r10
  __int64 v15; // r11
  _BYTE v17[8]; // [rsp+0h] [rbp-8h] BYREF
  _UNKNOWN *retaddr; // [rsp+8h] [rbp+0h] BYREF

if ( (unsigned __int64)&retaddr <= *(_QWORD *)(v9 + 16) )
    sub_46AC20(a1, a2);
  runtime_chanrecv1(qword_593EF8, 0);
  v10 = sub_4892C0(101, 0, 0, 0);
  if ( v11 != 1 )
    sub_4AE9C0(v10, 0, v11, 0, a5, v12, v13, v14, v15);
  runtime_chansend1(qword_593F08, v17);
  return runtime_chansend1(qword_593F00, v17);
}
void __golang sub_4AE9C0(
        __int64 a1,
        __int64 a2,
        __int64 a3,
        __int64 a4,
        __int64 a5,
        __int64 a6,
        __int64 a7,
        __int64 a8,
        __int64 a9)
{
  __int64 v9; // r14
  int v10; // r8d
  int v11; // r9d
  int v12; // r10d
  int v13; // r11d
  rc4_Cipher *v14; // rax
  int v15; // ecx
  int v16; // r8d
  int v17; // r9d
  int v18; // r10d
  int v19; // r11d
  int v20; // eax
  __int64 v21; // [rsp-40h] [rbp-40h]
  char v22; // [rsp-38h] [rbp-38h]
  _UNKNOWN *retaddr; // [rsp+0h] [rbp+0h] BYREF

if ( (unsigned __int64)&retaddr <= *(_QWORD *)(v9 + 16) )
LABEL_5:
    sub_46AC20(a1, a2, a3, a4, a5, a6, a7, a8, a9, v21, v22);
  sub_4AE860(a1, a2, a3, a4, a5, a6, a7, a8, a9);
  a2 = qword_58F1A8;
  v14 = (rc4_Cipher *)crypto_rc4_NewCipher((_DWORD)rc4_key, qword_58F1A8, qword_58F1B0, a4, a5, v10, v11, v12, v13);
  if ( a2 )
  {
    v20 = *(_QWORD *)(a2 + 8);
    LODWORD(a2) = v15;
    LODWORD(a1) = runtime_gopanic(v20, v15, v15, a4, a5, v16, v17, v18, v19);
    goto LABEL_5;
  }
  crypto_rc4__ptr_Cipher_XORKeyStream(v14, *(_slice_uint8 *)cipher, *(_slice_uint8 *)cipher);
}
unsigned __int64 __golang sub_4AE860(
        __int64 a1,
        __int64 a2,
        __int64 a3,
        __int64 a4,
        __int64 a5,
        __int64 a6,
        __int64 a7,
        __int64 a8)
{
  unsigned __int64 v8; // rcx
  char *v9; // rbx
  __int64 v10; // rsi
  unsigned __int64 i; // rax
  char *v12; // rbx
  unsigned __int64 v13; // rsi
  __int64 v14; // rdi
  unsigned __int64 j; // rax
  char v16; // r8
  char *v17; // rdx
  unsigned __int64 result; // rax
  unsigned __int64 k; // rcx
  char v20; // bl

v8 = qword_58F1A8;
  v9 = rc4_key;
  v10 = qword_58F1A8 - 1;
  for ( i = 0; v10 > (__int64)i; ++i )
  {
    if ( i >= v8 )
      sub_46CD40(i);
    a4 = (unsigned __int8)v9[i];
    if ( v10 >= v8 )
      sub_46CD40(v10);
    a6 = (unsigned __int8)v9[v10];
    v9[i] = a6;
    v9[v10--] = a4;
  }
  if ( (unsigned __int64)qword_58F1A8 < 4 )
    sub_46CE00(4, v9, qword_58F1A8, a4, v10, a6, a7, a8);
  v12 = &rc4_key[((4 - qword_58F1B0) >> 63) & 4];
  v13 = qword_58F1A8 - 4;
  v14 = qword_58F1A8 - 5;
  for ( j = 0; v14 > (__int64)j; ++j )
  {
    if ( j >= v13 )
      sub_46CD40(j);
    v16 = v12[j];
    if ( v14 >= v13 )
      sub_46CD40(v14);
    v12[j] = v12[v14];
    v12[v14--] = v16;
  }
  if ( (unsigned __int64)qword_58F1B0 < 4 )
    sub_46CDC0(j, v12, 4);
  v17 = rc4_key;
  result = 0;
  for ( k = 3; (__int64)k > (__int64)result; --k )
  {
    if ( result >= 4 )
      sub_46CD40(result);
    v20 = v17[result];
    if ( k >= 4 )
      sub_46CD40(k);
    v17[result] = v17[k];
    v17[k] = v20;
    ++result;
  }
  return result;
}
~~~

第二个反编译不完整，可以nop掉sub_472F80后面的三行汇编得到完整代码，循环扫描/proc下的所有条目获取pid，然后进而获取对应的进程名，检查是否等于`linux_server`或者`linux_server64`，检测到立即退出，反之做一次RC4加密密文（sub_4AE9C0）

~~~c
__int64 __golang sub_4AEE40(__int64 a1, __int64 a2, __int64 a3, __int64 a4, __int64 a5)
{
  // [COLLAPSED LOCAL DECLARATIONS. PRESS NUMPAD "+" TO EXPAND]

if ( (unsigned __int64)&retaddr <= *(_QWORD *)(v5 + 16) )
    sub_46AC20(a1, a2);
  runtime_chanrecv1(qword_593EE8, 0);
  v6 = 5;
  v11 = sub_4AC520((__int64)"/proc", 5, (unsigned int)off_4E0148, a4, a5, v7, v8, v9, v10);
  if ( a4 )
    return sub_4AF3E0(v11, v6);
  while ( v6 > 0 )
  {
    v28 = v11;
    v18 = (char *)(*(__int64 (__golang **)(_QWORD))(*(_QWORD *)v11 + 48LL))(*(_QWORD *)(v11 + 8));
    v24 = sub_472F80(v18, v6, v19, a4, a5, v20, v21, v22, v23);
    v11 = sub_4AED60(v24, v6, v25, a4, a5);
    if ( v26 )
      return sub_4AF3E0(v11, v6);
    if ( v6 == 12 )
    {
      v12 = 'es_xunil';
      if ( *(_QWORD *)v11 == 'es_xunil' && *(_DWORD *)(v11 + 8) == 'revr' )
        return sub_4AF3E0(v11, v6);
    }
    else
    {
      v12 = 'es_xunil';
    }
    if ( v6 == 14 && *(_QWORD *)v11 == 'es_xunil' && *(_DWORD *)(v11 + 8) == 'revr' && *(_WORD *)(v11 + 12) == '46' )
      return sub_4AF3E0(v11, v6);
    v11 = v28 + 16;
    --v6;
  }
  sub_4AE9C0(v11, v6, v12, a4, a5, v13, v14, v15, v16);
  return sub_4AF3E0(v27, v6);
}
__int64 __golang sub_472F80(char *a1, __int64 a2, __int64 a3, __int64 a4, __int64 a5, int a6, int a7, int a8, int a9)
{
  // [COLLAPSED LOCAL DECLARATIONS. PRESS NUMPAD "+" TO EXPAND]

if ( (unsigned __int64)&retaddr <= *(_QWORD *)(v9 + 16) )
    sub_46AC20((__int64)a1, a2);
  if ( a2 && a2 < 19 )
  {
    v10 = *a1;
    if ( *a1 == 45 || v10 == 43 )
    {
      v11 = a2 - 1;
      v12 = (__int64)&a1[((1 - a2) >> 63) & 1];
      if ( a2 == 1 )
      {
        v44 = sub_461660(1, 0, 0, v11, v12, a6, a7, a8, a9);
        v13 = sub_46D6C0(v44, a1, 1);
        if ( !v44 )
          unknown_libname_23(v13);
        p_strconv_NumError = (strconv_NumError *)runtime_newobject(&RTYPE_strconv_NumError);
        p_strconv_NumError->Func.len = 4;
        p_strconv_NumError->Func.ptr = "Atoi";
        v18 = a2;
        p_strconv_NumError->Num.len = a2;
        if ( dword_5B41E0 )
        {
          p_strconv_NumError = (strconv_NumError *)sub_46C980(
                                                     (__int64)p_strconv_NumError,
                                                     (__int64)a1,
                                                     a2,
                                                     a2,
                                                     v12,
                                                     v15,
                                                     v16,
                                                     v17);
          v19 = (char *)v44;
          *v20 = v44;
        }
        else
        {
          v19 = (char *)v44;
        }
        p_strconv_NumError->Num.ptr = v19;
        v21 = off_58EDB8[0];
        p_strconv_NumError->Err.tab = off_58EDB0;
        if ( dword_5B41E0 )
        {
          p_strconv_NumError = (strconv_NumError *)sub_46C980(
                                                     (__int64)p_strconv_NumError,
                                                     (__int64)a1,
                                                     v18,
                                                     a2,
                                                     (__int64)v21,
                                                     v15,
                                                     v16,
                                                     v17);
          *v22 = v21;
        }
        p_strconv_NumError->Err.data = v21;
        return 0;
      }
    }
    else
    {
      v11 = a2;
      v12 = (__int64)a1;
    }
    v24 = 0;
    v25 = 0;
    while ( v11 > v24 )
    {
      v32 = *(unsigned __int8 *)(v12 + v24) - 48;
      if ( (unsigned __int8)(*(_BYTE *)(v12 + v24) - 48) > 9u )
      {
        v45 = sub_461660(a2, 0, 0, v11, v12, v25, v32, a8, a9);
        v33 = sub_46D6C0(v45, a1, a2);
        if ( a2 > (unsigned __int64)-v45 )
          unknown_libname_23(v33);
        v34 = (strconv_NumError *)runtime_newobject(&RTYPE_strconv_NumError);
        v34->Func.len = 4;
        v34->Func.ptr = "Atoi";
        v38 = a2;
        v34->Num.len = a2;
        if ( dword_5B41E0 )
        {
          v34 = (strconv_NumError *)sub_46C980((__int64)v34, (__int64)a1, a2, a2, v12, v35, v36, v37);
          v39 = (char *)v45;
          *v40 = v45;
        }
        else
        {
          v39 = (char *)v45;
        }
        v34->Num.ptr = v39;
        v41 = off_58EDB8[0];
        v34->Err.tab = off_58EDB0;
        if ( dword_5B41E0 )
        {
          v34 = (strconv_NumError *)sub_46C980((__int64)v34, (__int64)a1, v38, a2, (__int64)v41, v35, v36, v37);
          *v42 = v41;
        }
        v34->Err.data = v41;
        return 0;
      }
      a8 = 5 * v25;
      ++v24;
      v25 = (unsigned __int8)v32 + 10 * v25;
    }
    result = v25;
    v43 = -v25;
    if ( v10 == 45 )
      return v43;
  }
  else
  {
    result = sub_472AE0((_DWORD)a1, a2, 10, 0, a5, a6, a7, a8, a9);
    if ( (RTYPE **)a2 == off_4FF380 )
    {
      v26[1] = 4;
      if ( dword_5B41E0 )
      {
        result = sub_46C980(result, a2, (__int64)v26, 0, a5, v27, v28, v29);
        *v31 = v30;
      }
      *v26 = "Atoi";
    }
  }
  return result;
}
__int64 __golang sub_4AED60(__int64 a1, __int64 a2, __int64 a3, __int64 a4, int a5)
{
  // [COLLAPSED LOCAL DECLARATIONS. PRESS NUMPAD "+" TO EXPAND]

if ( (unsigned __int64)&retaddr <= *(_QWORD *)(v5 + 16) )
    sub_46AC20(a1, a2);
  v25[1] = 5;
  v25[0] = "/proc";
  v25[3] = 10;
  v25[2] = strconv_FormatInt(a1, 10, a3, a4);
  v25[5] = 4;
  v25[4] = "comm";
  v10 = path_filepath_join((unsigned int)v25, 3, 3, a4, a5, v6, v7, v8, v9);
  v16 = sub_498FE0(v10, 3, v11, a4, a5, v12, v13, v14, v15);
  if ( a4 )
    return 0;
  if ( v17 < 2 )
    sub_46CDC0(v16, 3, 2);
  return runtime_slicebytetostring(0, v16, 2, 0, 2, v18, v19, v20, v21, v23, v24);
}
~~~

第三个出现了"/proc/net/tcp"，可以检查tcp连接状态，反编译不完整，可以稍微patch下得到完整代码，发现用冒号分隔，然后有个a8d5逆序转为int正好是23946，也就是ida调试常用的端口；如果不等于说明没有ida调试，做一次RC4加密密文（sub_4AE9C0）

~~~c
__int64 __golang sub_4AEFC0(__int64 a1, __int64 a2, __int64 a3, __int64 a4, __int64 a5)
{
  // [COLLAPSED LOCAL DECLARATIONS. PRESS NUMPAD "+" TO EXPAND]

if ( (unsigned __int64)&v45 <= *(_QWORD *)(v5 + 16) )
    sub_46AC20(a1, a2);
  v46 = v6;
  runtime_chanrecv1(qword_593EF0, 0);
  *(_QWORD *)&v46 = &off_4E0150;
  v7 = 13;
  v8 = 0;
  v13 = os_OpenFile((__int64)"/proc/net/tcp", 13, 0, 0, a5, v9, v10, v11, v12);
  sub_4AF3A0(v13, 13);
  while ( 1 )
  {
    v19 = bufio__ptr_Scanner_Scan((unsigned int)&v42, v7, v14, v8, a5, v15, v16, v17, v18, v36);
    if ( !(_BYTE)v19 )
      break;
    v7 = v43;
    v25 = runtime_slicebytetostring(0, v43, v44, v8, a5, v21, v22, v23, v24, v37, v39, v41);
    v31 = strings_Fields(v25, v7, v26, v8, a5, v27, v28, v29, v30, v38, v40);
    if ( v7 >= 4 )
    {
      v7 = *(_QWORD *)(v31 + 24);
      v8 = 1;
      a5 = 0;
      v32 = strings_SplitN(*(_QWORD *)(v31 + 16), v7, (int)&unk_4FDCC8, 1, 0, -1, v16, v17, v18);
      if ( (unsigned __int64)v7 <= 1 )
        sub_46CD40(1);
      v14 = *(_QWORD *)(v32 + 24);
      if ( v14 == 4 )
      {
        v7 = *(_QWORD *)(v32 + 16);
        if ( *(_DWORD *)v7 == 'a8d5' || *(_DWORD *)v7 == 'A8D5' )
        {
          v33 = (**((__int64 (***)(void))&v46 + 1))();
          return sub_4AF3A0(v33, v7);
        }
      }
    }
  }
  sub_4AE9C0(v19, v7, v20, v8, a5, v21, v22, v23, v24);
  v35 = (**((__int64 (***)(void))&v46 + 1))();
  return sub_4AF3A0(v35, v7);
}
~~~

第四个同上，patch下拿到完整代码，发现读取了`/proc/self/status`并检测文件中TracerPid字段，然后解析冒号后的数字（v11是长度，\*v30是第一个字符），其实就是检查是否不等于0，不等于0说明有调试，无调试的时候做一次RC4加密密文（sub_4AE9C0）

~~~c
__int64 __golang sub_4AEA40(__int64 a1, __int64 a2, __int64 a3, __int64 a4, __int64 a5, int a6, int a7, int a8, int a9)
{
  // [COLLAPSED LOCAL DECLARATIONS. PRESS NUMPAD "+" TO EXPAND]

if ( (unsigned __int64)v46 <= *(_QWORD *)(v9 + 16) )
    sub_46AC20(a1, a2);
  v47 = (void (__golang **)(__int64))*((_QWORD *)&v10 + 1);
  v46[13] = off_4E0140;
  v11 = 17;
  v12 = 0;
  os_OpenFile((__int64)"/proc/self/statuspidfd_sen", 17, 0, 0, a5, a6, a7, a8, a9);
  sub_4AF420();
  while ( 1 )
  {
    v18 = bufio__ptr_Scanner_Scan((unsigned int)&v44, v11, v13, v12, a5, v14, v15, v16, v17, v38);
    if ( !(_BYTE)v18 )
      break;
    v11 = v45;
    v24 = runtime_slicebytetostring(0, v45, v46[0], v12, a5, v20, v21, v22, v23, v39, v40, v41);
    if ( v11 >= 9 )
    {
      v42 = v24;
      v13 = sub_403280(v24, (__int64)"TracerPid");
      v24 = v42;
    }
    else
    {
      v13 = 0;
    }
    if ( (_BYTE)v13 )
    {
      v12 = 1;
      a5 = 0;
      v25 = strings_SplitN(v24, v11, (int)&unk_4FDCC8, 1, 0, -1, v15, v16, v17);
      if ( (unsigned __int64)v11 <= 1 )
        sub_46CD40(1);
      v11 = *(_QWORD *)(v25 + 24);
      v30 = (_BYTE *)strings_TrimSpace(
                       *(_QWORD *)(v25 + 16),
                       v11,
                       *(_QWORD *)(v25 + 16),
                       1,
                       0,
                       v26,
                       v27,
                       v28,
                       v29,
                       v38,
                       v40);
      if ( v11 != 1 || *v30 != 48 )
      {
        v43 = v10;
        v31 = runtime_convTstring((_DWORD)v30, v11, v13, 1, 0, v14, v15, v16, v17);
        *(_QWORD *)&v43 = &RTYPE_string;
        *((_QWORD *)&v43 + 1) = v31;
        v36 = fmt_Fprintln(
                (unsigned int)off_4FF328,
                qword_593F38,
                (unsigned int)&v43,
                1,
                1,
                v32,
                v33,
                v34,
                v35,
                v38,
                v40);
        (*v47)(v36);
        return sub_4AF420();
      }
    }
  }
  sub_4AE9C0(v18, v11, v19, v12, a5, v20, v21, v22, v23);
  ((void (*)(void))*v47)();
  return sub_4AF420();
}
~~~

第五个里面sub_489520调用了syscall，传入110（sys_getppid）获取了父进程pid，然后根据pid去获取父进程名称（`/proc/<PID>/comm`），接着检查父进程名称里是否存在sh，没有找到就会直接调用runtime_gopanic使程序崩溃，也就是说出题人希望题目能够直接在shell（bash、zsh、sh等）中直接执行

~~~c
__int64 __golang sub_4AF220(int a1, int a2, int a3, int a4, int a5, int a6, int a7, int a8, int a9)
{
  // [COLLAPSED LOCAL DECLARATIONS. PRESS NUMPAD "+" TO EXPAND]

if ( (unsigned __int64)&retaddr <= *(_QWORD *)(v9 + 16) )
    goto LABEL_8;
  sub_489520(a1, a2, a3, a4, a5, a6, a7, a8, a9, 110, v10, *((__int64 *)&v10 + 1), 0);
  v16 = sub_4AED60(v33, a2, v11, a4, a5, v12, v13, v14, v15);
  v22 = v17 == 0;
  if ( v17 )
  {
LABEL_5:
    if ( !v22 )
      v17 = *(_QWORD *)(v17 + 8);
    a2 = a4;
    a1 = runtime_gopanic(v17, a4, v17, a4, a5, v18, v19, v20, v21);
LABEL_8:
    sub_46AC20(a1, a2, a3, a4, a5, a6, a7, a8, a9, v29, v30);
  }
  a4 = 2;
  result = strings_Index(v16, a2, (unsigned int)"sh", 2, a5, v18, v19, v20, v21, v29, v30, v31, v32);
  if ( result < 0 )
  {
    runtime_gopanic((unsigned int)&RTYPE_string, (unsigned int)&off_4FEA28, v24, 2, a5, v25, v26, v27, v28);
    goto LABEL_5;
  }
  return result;
}
__int64 __golang sub_489520(
        _DWORD a1,
        _DWORD a2,
        _DWORD a3,
        _DWORD a4,
        _DWORD a5,
        _DWORD a6,
        _DWORD a7,
        _DWORD a8,
        _DWORD a9,
        __int64 a10)
{
  __int64 result; // rax

result = a10;
  __asm { syscall; LINUX - }
  return result;
}
__int64 __golang sub_4AED60(__int64 a1, __int64 a2, __int64 a3, __int64 a4, int a5)
{
  // [COLLAPSED LOCAL DECLARATIONS. PRESS NUMPAD "+" TO EXPAND]

最后一个函数，注册了一个无限循环（goroutine），反复执行sleep 2s，检测实际花了多少秒，如果大于5s就会立即修改密文（循环异或0x66），实际测试好像正常也会做异或？

~~~c
void __golang __noreturn sub_4AF2C0(__int64 a1, __int64 a2, __int64 a3, int a4, int a5)
{
  __int64 v5; // r14
  signed __int64 v6; // rbx
  __int64 i; // rax
  __int64 v8; // rax
  int v9; // ecx
  int v10; // r8d
  int v11; // r9d
  int v12; // r10d
  int v13; // r11d
  __int64 v14; // rax
  __int64 v15; // rax
  __int64 v16; // [rsp-10h] [rbp-20h]
  signed __int64 v17; // [rsp+0h] [rbp-10h]
  _UNKNOWN *retaddr; // [rsp+10h] [rbp+0h] BYREF

if ( (unsigned __int64)&retaddr > *(_QWORD *)(v5 + 16) )
  {
    v6 = 0;
    i = runtime_chanrecv1(qword_593F00, 0);
    while ( 1 )
    {
      v8 = ((__int64 (__golang *)(__int64))time_Now)(i);
      if ( v8 < 0 )
      {
        v9 = 0xD7B17F80;
        v6 = ((unsigned __int64)(2 * v8) >> 31) + 0xDD7B17F80LL;
      }
      v17 = v6;
      v14 = sub_468B00(2000000000, v6, v9, a4, a5, v10, v11, v12, v13, v16);
      v15 = ((__int64 (__golang *)(__int64))time_Now)(v14);
      if ( v15 < 0 )
        v6 = ((unsigned __int64)(2 * v15) >> 31) + 0xDD7B17F80LL;
      i = v17;
      v6 -= v17;
      if ( v6 > 5 )
      {
        for ( i = 0; qword_58F1C8 > i; ++i )    // 40h
        {
          v6 = *((unsigned __int8 *)cipher + i) ^ 0x66u;
          *((_BYTE *)cipher + i) ^= 0x66u;
        }
      }
    }
  }
  ((void (__noreturn *)(void))sub_46AC20)();
}
~~~

通过分析go注册的6个goroutine（并发线程）我们发现了6种反调试，其中前四个没有调试会对密文做四次RC4加密，且加密完都会调用runtime_chansend1通知主进程，第五次没有调试就不会退出，第六个没有调试就不会修改密文

开始分析主函数，里面第一个函数sub_4A5C60经过ai分析发现是strings.SplitN函数，将输入按照下划线分割

第二个函数sub_4B09E0里发现进入一个循环，里面注册了一个sub_4B0DA0（主函数的goroutine），重点分析sub_4B0DA0，里面调用了sub_4B1040，根据a3值做不同处理

~~~c
__int64 __golang sub_4B1040(__int64 a1, __int64 a2, __int64 a3, __int64 a4, int a5, int a6, int a7, int a8, int a9)
{
  // [COLLAPSED LOCAL DECLARATIONS. PRESS NUMPAD "+" TO EXPAND]

if ( (unsigned __int64)&v101 <= *(_QWORD *)(v9 + 16) )
    goto LABEL_26;
  if ( a3 > 1 )
  {
    if ( a3 == 2 )
    {
      runtime_chanrecv1(qword_593F18, 0);
      v71 = aes_key_len;
      v76 = crypto_aes_NewCipher((_DWORD)aes_key, aes_key_len, qword_58F1F0, a4, a5, v72, v73, v74, v75);
      if ( !v77 )
      {
        v97 = v71;
        v94 = v76;
        v100 = runtime_makeslice((unsigned int)&RTYPE_uint8, a2, a2, a4, a5, v78, v79, v80, v81);
        v86 = runtime_stringtoslicebyte(0, a1, a2, a4, a5, v82, v83, v84, v85);
        (*(void (__golang **)(__int64, __int64, __int64, __int64, __int64, __int64, __int64))(v94 + 40))(
          v71,
          v100,
          a2,
          a2,
          v86,
          a1,
          v87);
        v101 = v100;
        v102 = a2;
        v103 = a2;
        v104 = 2;
        v88 = runtime_chansend1(a4, &v101);
        sub_4B0EE0(v88, (__int64)&v101, v89, a2, v86, v90, v91, v92);
        return runtime_chansend1(qword_593F20, &v93);
      }
      runtime_gopanic(*(_QWORD *)(v77 + 8), a4, *(_QWORD *)(v77 + 8), a4, a5, v78, v79, v80, v81);
    }
    else
    {
      if ( a3 != 3 )
      {
LABEL_19:
        runtime_gopanic((unsigned int)&RTYPE_string, (unsigned int)&off_4FEA28, a3, a4, a5, a6, a7, a8, a9);
        goto LABEL_20;
      }
      runtime_chanrecv1(qword_593F20, 0);
      v53 = aes_key_len;
      v58 = crypto_aes_NewCipher((_DWORD)aes_key, aes_key_len, qword_58F1F0, a4, a5, v54, v55, v56, v57);
      v64 = v59 == 0;
      if ( !v59 )
      {
        v93 = v58;
        v100 = runtime_makeslice((unsigned int)&RTYPE_uint8, a2, a2, a4, a5, v60, v61, v62, v63);
        v69 = runtime_stringtoslicebyte(0, a1, a2, a4, a5, v65, v66, v67, v68);
        (*(void (__golang **)(__int64, __int64, __int64, __int64, __int64, __int64, __int64))(v93 + 40))(
          v53,
          v100,
          a2,
          a2,
          v69,
          a1,
          v70);
        v101 = v100;
        v102 = a2;
        v103 = a2;
        v104 = 3;
        return runtime_chansend1(a4, &v101);
      }
    }
    if ( !v64 )
      v59 = *(_QWORD *)(v59 + 8);
    runtime_gopanic(v59, a4, v59, a4, a5, v60, v61, v62, v63);
    goto LABEL_19;
  }
  if ( a3 )
  {
    if ( a3 == 1 )
    {
      runtime_chanrecv1(qword_593F10, 0);
      v10 = aes_key_len;
      v15 = crypto_aes_NewCipher((_DWORD)aes_key, aes_key_len, qword_58F1F0, a4, a5, v11, v12, v13, v14);
      v21 = v16 == 0;
      if ( !v16 )
      {
        v95 = v15;
        v98 = v10;
        v100 = runtime_makeslice((unsigned int)&RTYPE_uint8, a2, a2, a4, a5, v17, v18, v19, v20);
        v26 = runtime_stringtoslicebyte(0, a1, a2, a4, a5, v22, v23, v24, v25);
        (*(void (__golang **)(__int64, __int64, __int64, __int64, __int64, __int64, __int64))(v95 + 40))(
          v10,
          v100,
          a2,
          a2,
          v26,
          a1,
          v27);
        v101 = v100;
        v102 = a2;
        v103 = a2;
        v104 = 1;
        v28 = runtime_chansend1(a4, &v101);
        sub_4B0EE0(v28, (__int64)&v101, v29, a2, v26, v30, v31, v32);
        return runtime_chansend1(qword_593F18, &v93);
      }
      goto LABEL_23;
    }
    goto LABEL_19;
  }
  v34 = aes_key_len;
  v35 = crypto_aes_NewCipher((_DWORD)aes_key, aes_key_len, qword_58F1F0, a4, a5, a6, a7, a8, a9);
  v41 = v36 == 0;
  if ( v36 )
  {
LABEL_20:
    if ( !v41 )
      v36 = *(_QWORD *)(v36 + 8);
    runtime_gopanic(v36, a4, v36, a4, a5, v37, v38, v39, v40);
LABEL_23:
    if ( !v21 )
      v16 = *(_QWORD *)(v16 + 8);
    runtime_gopanic(v16, a4, v16, a4, a5, v17, v18, v19, v20);
LABEL_26:
    sub_46AC20();
  }
  v99 = v34;
  v96 = v35;
  v100 = runtime_makeslice((unsigned int)&RTYPE_uint8, a2, a2, a4, a5, v37, v38, v39, v40);
  v46 = runtime_stringtoslicebyte(0, a1, a2, a4, a5, v42, v43, v44, v45);
  (*(void (__golang **)(__int64, __int64, __int64, __int64, __int64, __int64, __int64))(v96 + 40))(
    v34,
    v100,
    a2,
    a2,
    v46,
    a1,
    v47);
  v101 = v100;
  v102 = a2;
  v103 = a2;
  v104 = 0;
  v48 = runtime_chansend1(a4, &v101);
  sub_4B0EE0(v48, (__int64)&v101, v49, a2, v46, v50, v51, v52);
  return runtime_chansend1(qword_593F10, &v93);
}
~~~

里面有AES，密钥为`hey_syclover2024`，里面还有个对密钥做移位处理的函数sub_4B0EE0：先全部逆序、再前四位逆序、最后后12位逆序

~~~c
signed __int64 __golang sub_4B0EE0(
        __int64 a1,
        __int64 a2,
        __int64 a3,
        __int64 a4,
        __int64 a5,
        __int64 a6,
        __int64 a7,
        __int64 a8)
{
  unsigned __int64 v8; // rcx
  unsigned __int64 v9; // rbx
  __int64 v10; // rsi
  unsigned __int64 i; // rax
  char *v12; // rdx
  unsigned __int64 v13; // rax
  unsigned __int64 j; // rcx
  char *v15; // rdx
  unsigned __int64 v16; // rbx
  __int64 v17; // rsi
  signed __int64 result; // rax
  char v19; // di

v8 = aes_key_len;
  v9 = (unsigned __int64)aes_key;
  v10 = aes_key_len - 1;
  for ( i = 0; v10 > (__int64)i; ++i )
  {
    if ( i >= v8 )
      sub_46CD40(i);
    a4 = *(unsigned __int8 *)(i + v9);
    if ( v10 >= v8 )
      sub_46CD40(v10);
    a6 = *(unsigned __int8 *)(v10 + v9);
    *(_BYTE *)(v9 + i) = a6;
    *(_BYTE *)(v9 + v10--) = a4;
  }
  if ( (unsigned __int64)qword_58F1F0 < 4 )
    sub_46CDC0(i, v9, 4);
  v12 = aes_key;
  v13 = 0;
  for ( j = 3; (__int64)j > (__int64)v13; --j )
  {
    if ( v13 >= 4 )
      sub_46CD40(v13);
    v9 = (unsigned __int8)v12[v13];
    if ( j >= 4 )
      sub_46CD40(j);
    v10 = (unsigned __int8)v12[j];
    v12[v13] = v10;
    v12[j] = v9;
    ++v13;
  }
  if ( (unsigned __int64)aes_key_len < 4 )
    sub_46CE00(4, v9, aes_key_len, a4, v10, a6, a7, a8);
  v15 = &aes_key[((4 - qword_58F1F0) >> 63) & 4];
  v16 = aes_key_len - 4;
  v17 = aes_key_len - 5;
  for ( result = 0; v17 > result; ++result )
  {
    if ( result >= v16 )
      sub_46CD40(result);
    v19 = v15[result];
    if ( v17 >= v16 )
      sub_46CD40(v17);
    v15[result] = v15[v17];
    v15[v17--] = v19;
  }
  return result;
}
~~~

总结为a3等于0、1、2时AES加密一次明文然后对密钥移位一次；a3等于3时只做一次AES加密（猜测a3是第几个分组的意思）

到这里可以做逆向了

~~~python
from Crypto.Cipher import AES, ARC4
from Crypto.Cipher.AES import MODE_ECB

key = b"hey_syclover2024"
keys = [key]
for i in range(4):
    key = key[::-1]
    key = key[:4][::-1] + key[4:][::-1]
    keys.append(key)

cipher = bytes([0xF0, 0x5B, 0x29, 0x5F, 0xC3, 0x5C, 0x2A, 0xBC, 0x8A, 0x42, 0x8F, 0xE7, 0x63, 0x5C, 0xFD, 0xAC, 0x74, 0x7E, 0x6D, 0xD3, 0x67, 0x13, 0x84, 0x1B, 0xDA, 0x60, 0x7C, 0x36, 0x96, 0xA8, 0x80, 0xDA, 0x51, 0xA7, 0xEC, 0xE5, 0x62, 0xFE, 0xC9, 0xB5, 0xE1, 0xF9, 0x07, 0x12, 0xB3, 0x53, 0xB3, 0xC0, 0x31, 0x14, 0x86, 0xD0, 0xC3, 0xD0, 0x92, 0xDE, 0x5A, 0x0D, 0xD1, 0xFF, 0x5B, 0x00, 0x1D, 0x2E])
for i in range(4):
    cipher = ARC4.new(keys[i+1]).decrypt(cipher)
for i in range(4):
    tmp = AES.new(keys[i], mode=MODE_ECB).decrypt(cipher[16 * i:16 * i + 16])
    print(bytes([j^0x66 for j in tmp]).decode(), end="")

~~~

最后修改：2025 年 11 月 04 日

如果觉得我的文章对你有用，请随意赞赏

发表评论取消回复
使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款

评论 *

私密评论

名称 *

🎲

邮箱 *

地址

Reverse（十一）
浏览次数: 13688
Reverse（十三）
浏览次数: 5326
Win11新机鼓捣记录
浏览次数: 2913
js逆向爬虫1
浏览次数: 2326
HTML1
浏览次数: 2172

http://www.baidu.com
hello
laokey
申请友链，链接已加！名称：LaoKey's Blog链接：ht...
laokey
大佬，来个友链呗名称：LaoKey's Blog链接：http...
mars
博主你好，请问怎么知道的alloc函数属于Buffer下的方法...
lj
该评论仅登录用户及评论双方可见

为数据快速添加引号
浏览次数: 1018
汇编week2~动态逆向
浏览次数: 730
单处理器调度
浏览次数: 692
软件漏洞-缓冲区溢出
浏览次数: 713
L3HCTF RE wp
浏览次数: 239

发表评论 取消回复 使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款

SCTF 2024 复现

发表评论取消回复
使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款
